Запчасти Bobcat 3200 CAB DOORS (Poly) ACCESSORIES & OPTIONS

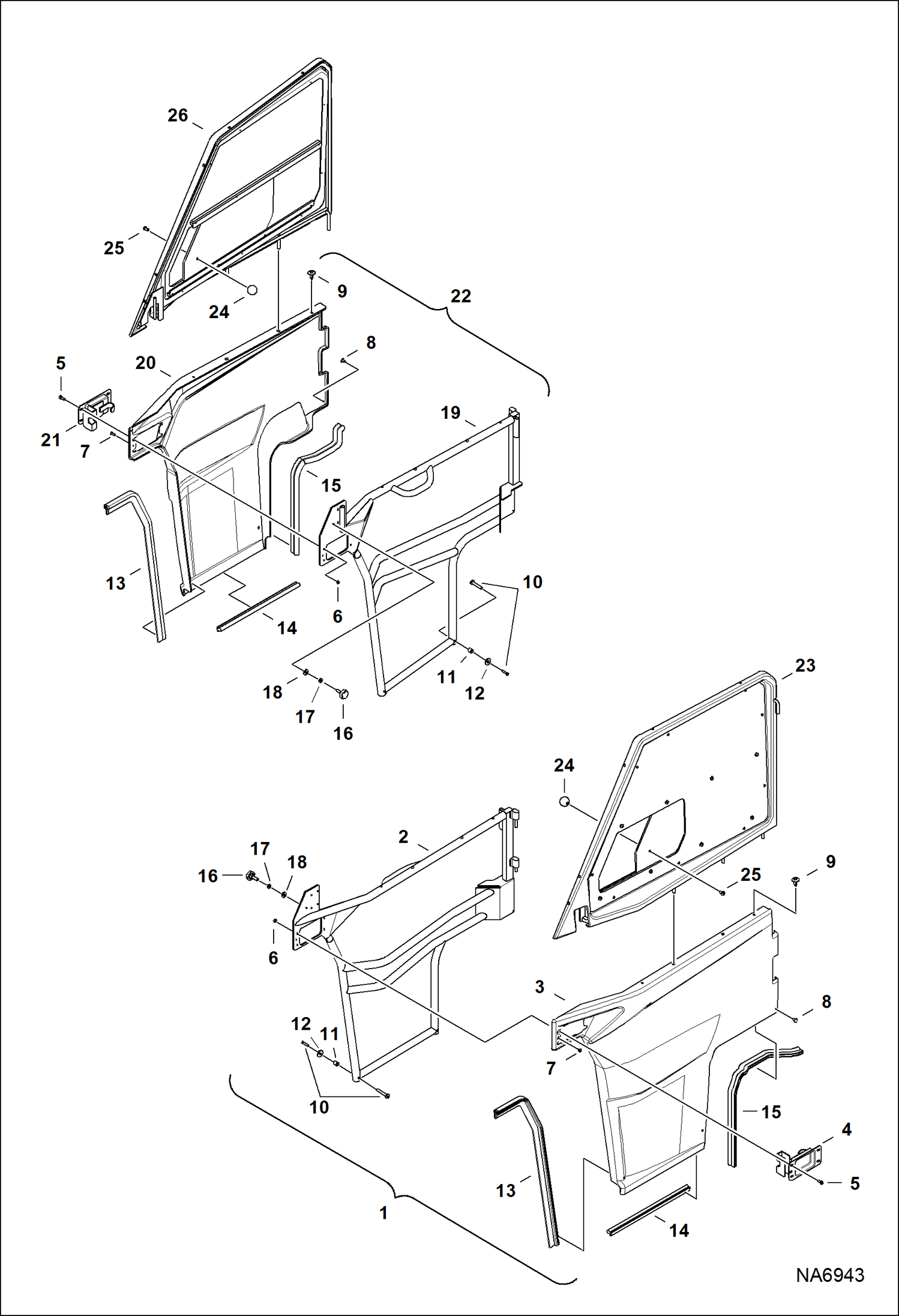

Схема запчастей Bobcat 3200 - CAB DOORS (Poly) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7025031

DOOR, LOWER LH ASSY Ref. 2-18

2

WELDMENT, DOOR LOWER LH NSS - Order Ref. 1

3

7025027

PANEL, DOOR LOWER

4

7025028

LATCH, DOOR LT

5

7026604

BOLT

6

7026603

NUT, LOCK

7

7026605

BOLT

8

7026608

RETAINER, PLASTIC

9

7026602

RETAINER, PLASTIC

10

7026607

BOLT

11

7026606

SLEEVE

12

25E8

WSHR

13

7025039

SEAL, DOOR

14

7025041

SEAL, DOOR

15

7025040

SEAL, DOOR

16

7026609

BOLT

17

4E4

WASHER

18

25E13

WASHER 5

19

WELDMENT, DOOR LOWER RH NSS - Order Ref. 22

20

7025046

PANEL, DOOR LOWER

21

7025047

LATCH, DOOR RH

22

7025050

DOOR, LOWER RH ASSY Ref. 5-21

23

7025032

DOOR, UPPER LH ASSY W/Ref. 24 & 25

24

7026616

HANDLE, WINDOW SIDE

25

7026617

BOLT

26

7025051

DOOR, UPPER RH ASSY W/Ref. 24 & 25

Выбрано товаров: 26
