Запчасти Bobcat 3200 CAB PANELS (Poly) (Roof & Rear Window) ACCESSORIES & OPTIONS

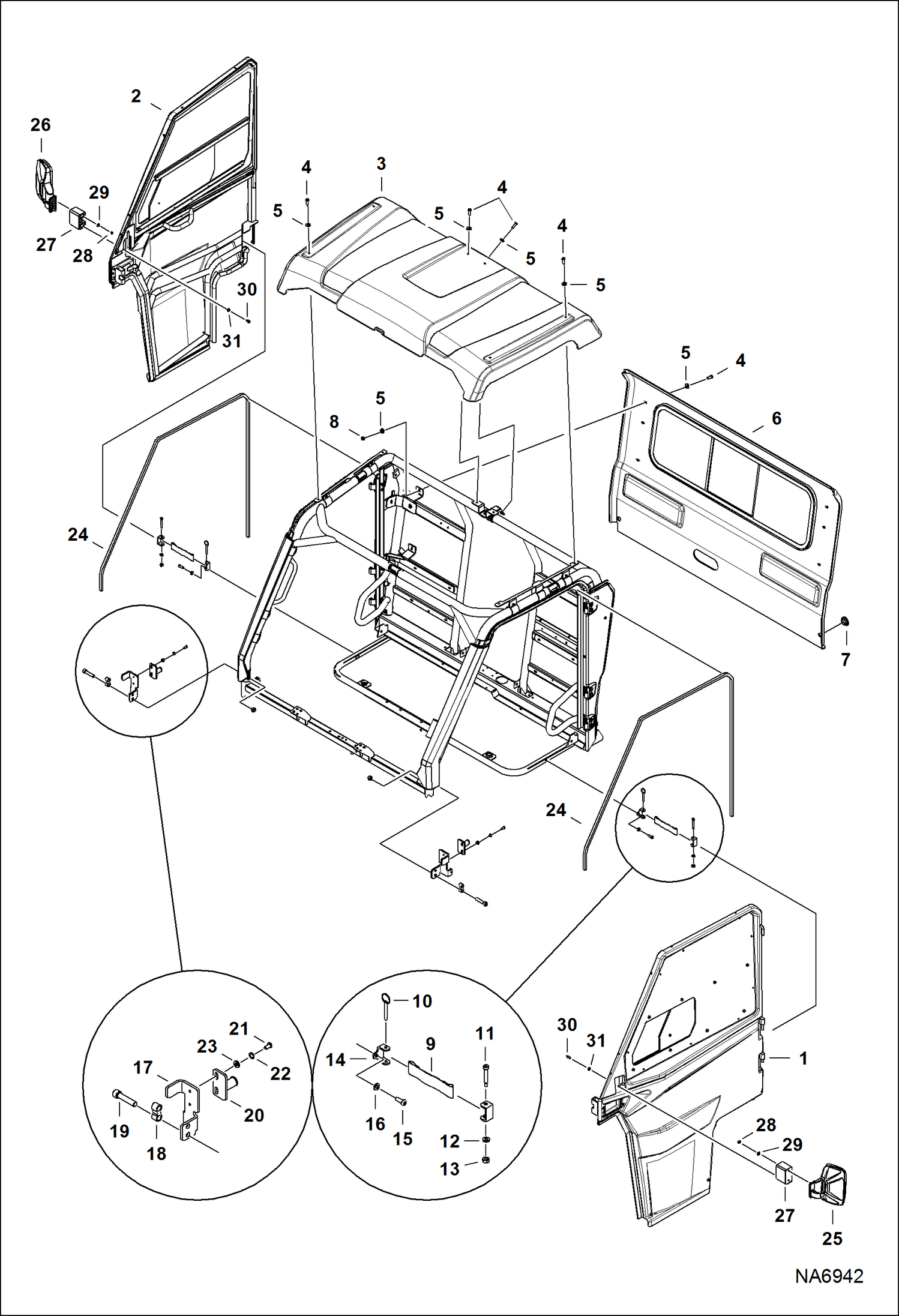

Схема запчастей Bobcat 3200 - CAB PANELS (Poly) (Roof & Rear Window) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

DOOR, LH ASSY See Illustration CAB DOORS/ NA6943

2

DOOR, RH ASSY See Illustration CAB DOORS/ NA6943

3

7025008

PANEL, ROOF

4

7026596

BOLT

5

7026618

WASHER, FLAT

6

7025015

PANEL, REAR

6

7025020

WINDOW, REAR

7

7026599

PLUG

8

40DM8

NUT

9

7026611

STRAP

10

7026612

PIN

11

17C436

BOLT Was 1CM640 - B,D

12

25E13

WASHER 5 Was 1EM60 - B,D

13

59D4

NUT 5 Was 40DM6 - B,D

14

7026610

BRACKET

15

BOLT NLA - existing part

16

WASHER NLA - existing part

17

7025035

PLATE, LATCH LH

17

7025054

PLATE, LATCH RH

18

7025037

SPACER, ROPS

19

7026615

BOLT

20

7025036

PIN, LATCH

21

7026614

BOLT

22

11EM60

WASHER

23

7027114

WASHER, FLAT

24

7026601

SEAL, DOOR

25

7027492

MIRROR, SIDE LH

26

7027493

MIRROR, SIDE RH

27

7027494

BLOCK, MIRROR

28

4DM6

NUT

29

15EM60

WASHER

30

27CM510

SCREW

31

15EM50

WASHER

Выбрано товаров: 33
