Запчасти Bobcat 3200 CAB PANELS (Poly) (Mounting Brackets) ACCESSORIES & OPTIONS

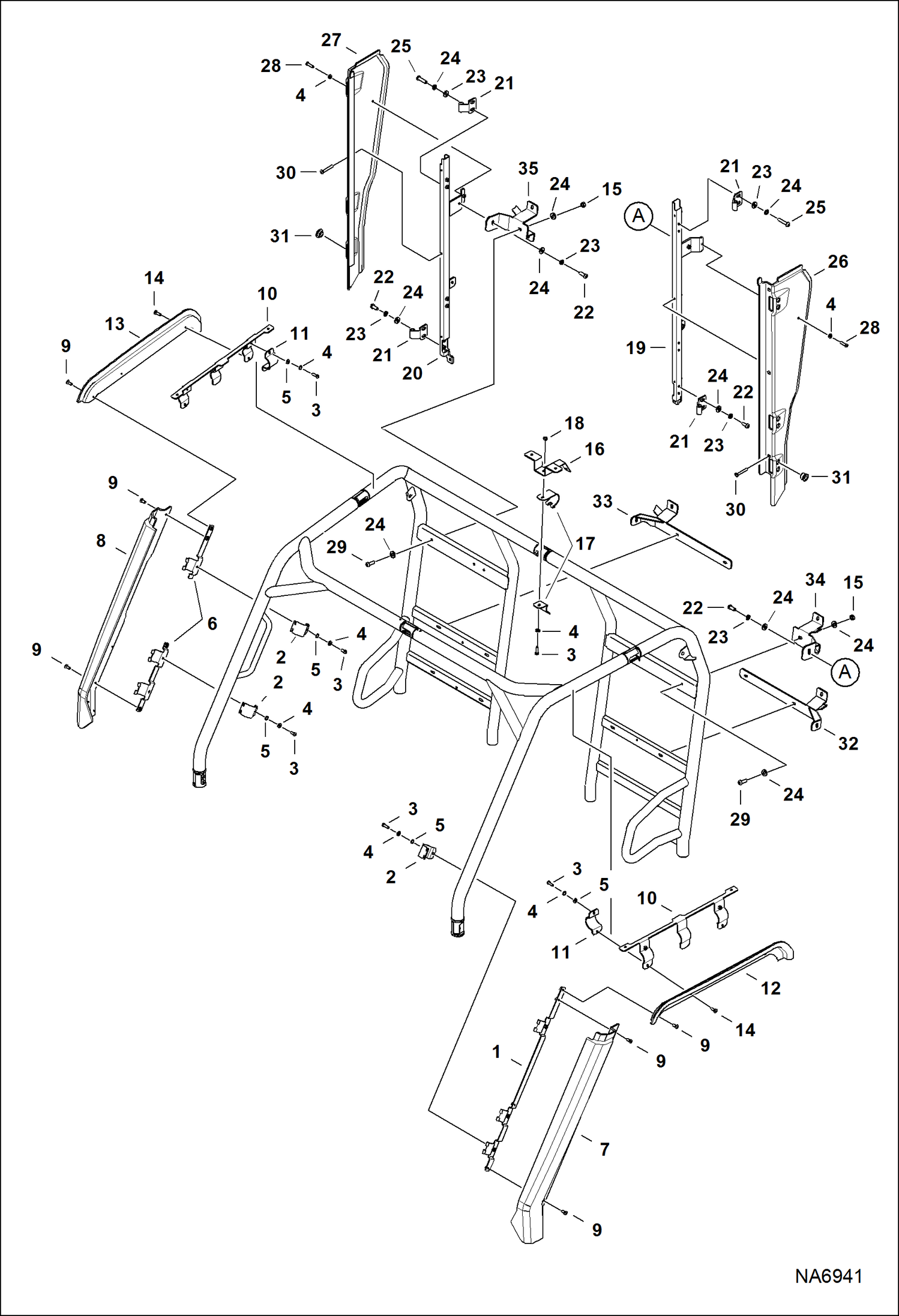

Схема запчастей Bobcat 3200 - CAB PANELS (Poly) (Mounting Brackets) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7025038

BRACKET, DOOR

2

CLAMP NSS - Order Ref. 1

3

7026595

BOLT

4

7027114

WASHER, FLAT

5

11EM60

WASHER

6

7025056

BRACKET, DOOR

7

7025030

PANEL, CAB

8

7025049

PANEL, CAB

9

7026594

BOLT

10

7025011

BRACKET, ROOF

11

CLAMP NSS - Order Ref. 10

12

7025009

PANEL, CAB

13

7025010

PANEL, CAB

14

7026597

BOLT

15

40DM8

NUT

16

7025012

BRACKET, ROOF

17

7025013

CLIP, METAL

18

40DM6

NUT

19

7025033

HINGE, DOOR CAB

20

7025052

HINGE, DOOR CAB

21

7025034

BRACKET, HINGE

22

7026620

BOLT

23

10EM80

WASHER

24

7026618

WASHER, FLAT

25

7026621

BOLT

26

7025029

PANEL, CAB

27

7025048

PANEL, CAB

28

7026623

BOLT

29

7026596

BOLT

30

7026622

BOLT

31

7026624

PLUG

32

7025018

BRACKET, PANEL LOWER

33

7025019

BRACKET, PANEL LOWER

34

7025016

BRACKET, PANEL UPPER

35

7025017

BRACKET, PANEL UPPER

Выбрано товаров: 35
