Запчасти Bobcat 3200 CAB DOOR (Steel) ACCESSORIES & OPTIONS

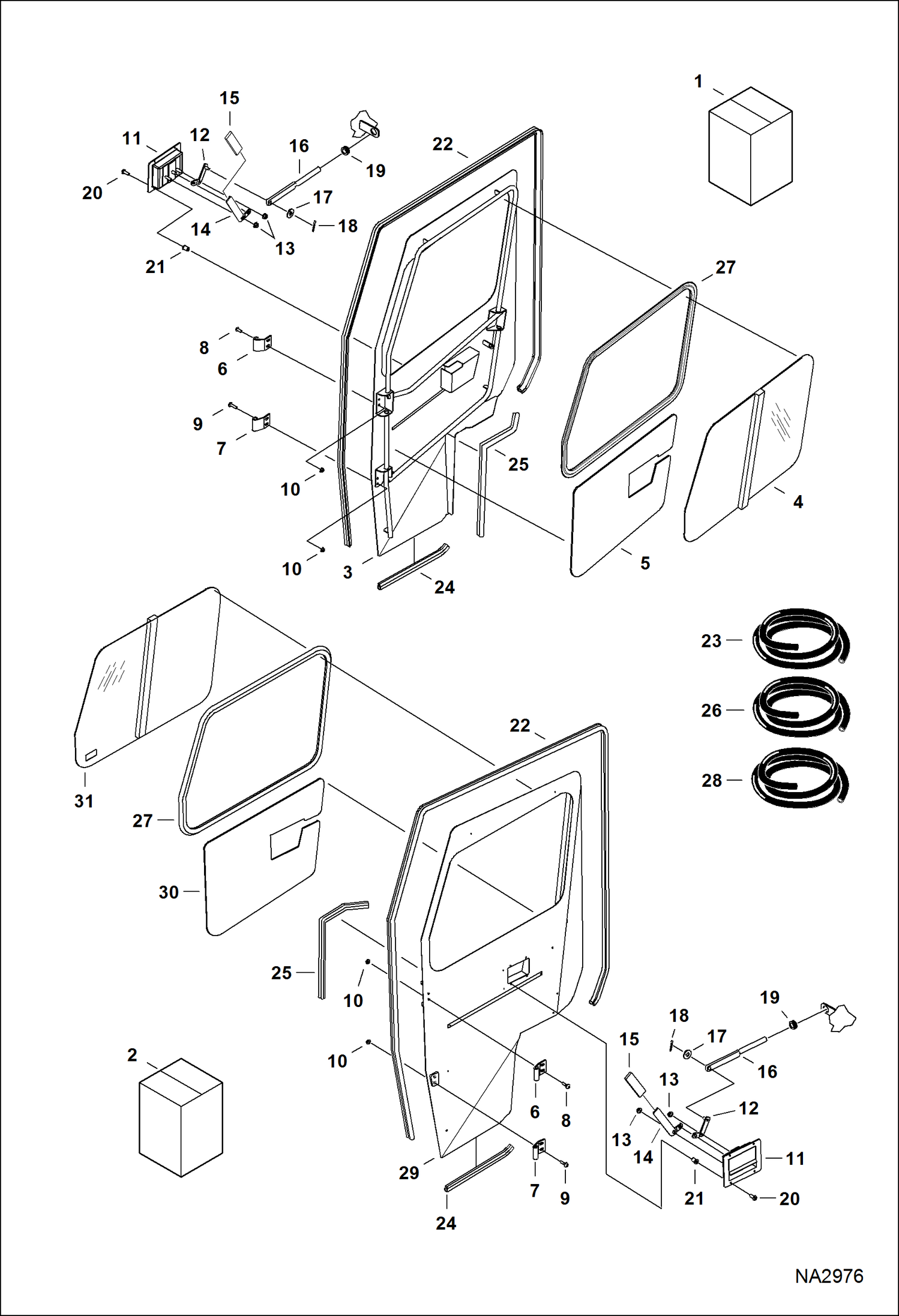

Схема запчастей Bobcat 3200 - CAB DOOR (Steel) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7021644

DOOR, SLIDER RH ASSY Ref. 3-28

2

7021643

DOOR, SLIDER LH ASSY Ref. 6-31

3

7021742

FRAME, DOOR RH

4

7021750

WINDOW, DOOR SLIDING ASSY RH

5

7021676

INSULATION RH

6

7021672

HINGE, DOOR UPPER

7

7021673

HINGE, DOOR LOWER

8

7021696

SCREW

9

7021698

SCREW

10

7021702

NUT Was 43DM8 - B

11

7021666

HANDLE, DOOR CAB W/Ref. 12 & 13 - Also order Ref. 14 & 15

12

LEVER NLA - Order Ref. 11

13

59D4

NUT 5

14

7021730

LEVER, TRIP

15

7021652

COVER, HANDLE

16

7021715

ROD, LATCH

17

7021736

WASHER Was 25E13 - B

18

1F312

PIN

19

7021664

GROMMET

20

7021689

SCREW Was 87G1010 - B

21

7021705

NUT, INSERT

22

SEAL, DOOR NLA - 3050 mm (120'') long - Order Ref. 23

23

7021727

SEAL BULK DOOR bulk - sold per foot

24

SEAL, DOOR NLA - 355 mm (14'') long - Order Ref. 26

25

SEAL, DOOR NLA - 685 mm (27'') long - Order Ref. 26

26

7021728

SEAL WINDOW, BULK/FT bulk - sold per foot

27

SEAL, WINDOW RUBBER NLA - 2235 mm (88'') long - Order Ref. 28

28

7021723

SEAL WINDOW BULK/FT. bulk - sold per foot

29

7021741

FRAME, DOOR LH

30

7021675

INSULATION LH

31

7021749

WINDOW, DOOR SLIDING ASSY LH

Выбрано товаров: 31
