Запчасти Bobcat 3200 CAB PANELS (Steel) (Roof & Rear Window) ACCESSORIES & OPTIONS

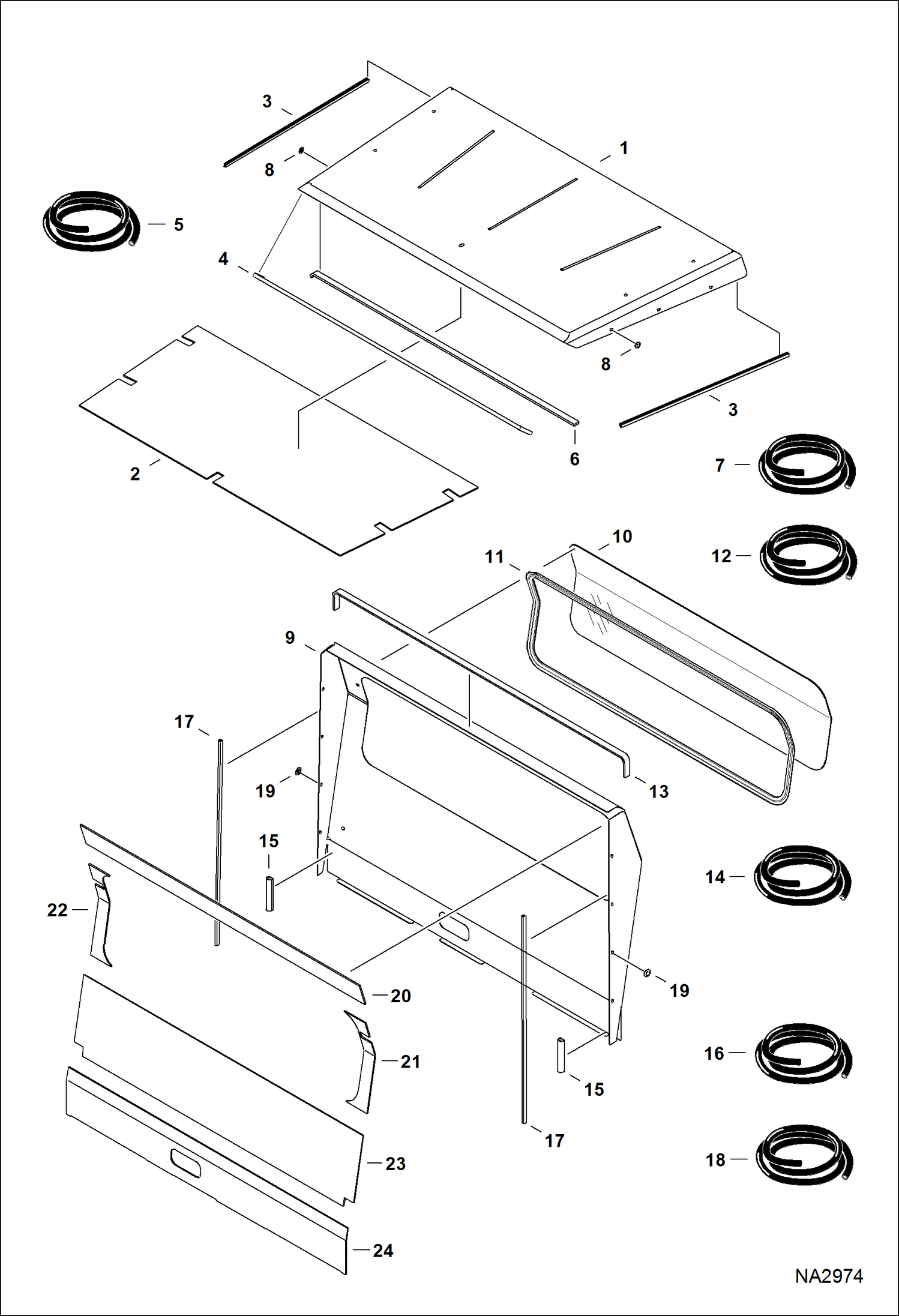

Схема запчастей Bobcat 3200 - CAB PANELS (Steel) (Roof & Rear Window) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7021748

PANEL, CAB TOP

2

7021682

INSULATION

3

TRIM, EDGE NLA - 815 mm (32'') long - Order Ref. 5

4

TRIM, EDGE NLA - 1540 mm (60.5'') long - Order Ref. 5

5

7021726

TRIM, EDGE bulk - sold per foot

6

SEAL, RUBBER NLA - 1470 mm (58'') long - Order Ref. 7

7

7021719

SEAL BULK DOOR bulk - sold per foot

8

7021710

PLUG

9

7021747

PANEL, CAB REAR

10

7021752

WINDOW, CAB REAR

11

SEAL, WINDSHIELD RUBBER NLA - 3450 mm (136'') long - Order Ref. 12

12

7021720

SEAL BULK WINDOW bulk - sold per foot

13

SEAL, RUBBER NLA - 1660 mm (65.25'') long - Order Ref. 14

14

7021719

SEAL BULK DOOR bulk - sold per foot

15

SEAL, RUBBER NLA - 140 mm (5.5'') long - Order Ref. 16

16

7021717

SEAL BULK DOOR bulk - sold per foot

17

TRIM, EDGE NLA - 925 mm (36.5'') long - Order Ref. 18

18

7021726

TRIM, EDGE bulk - sold per foot

19

7021710

PLUG

20

7021679

INSULATION rear upper

21

7021681

INSULATION rear LH

22

7021680

INSULATION rear RH

23

7021678

INSULATION rear bottom upper

24

7021677

INSULATION rear bootom lower

Выбрано товаров: 24
