Запчасти Bobcat 3200 CAB PANELS (Steel) (Tip Out Windshield) ACCESSORIES & OPTIONS

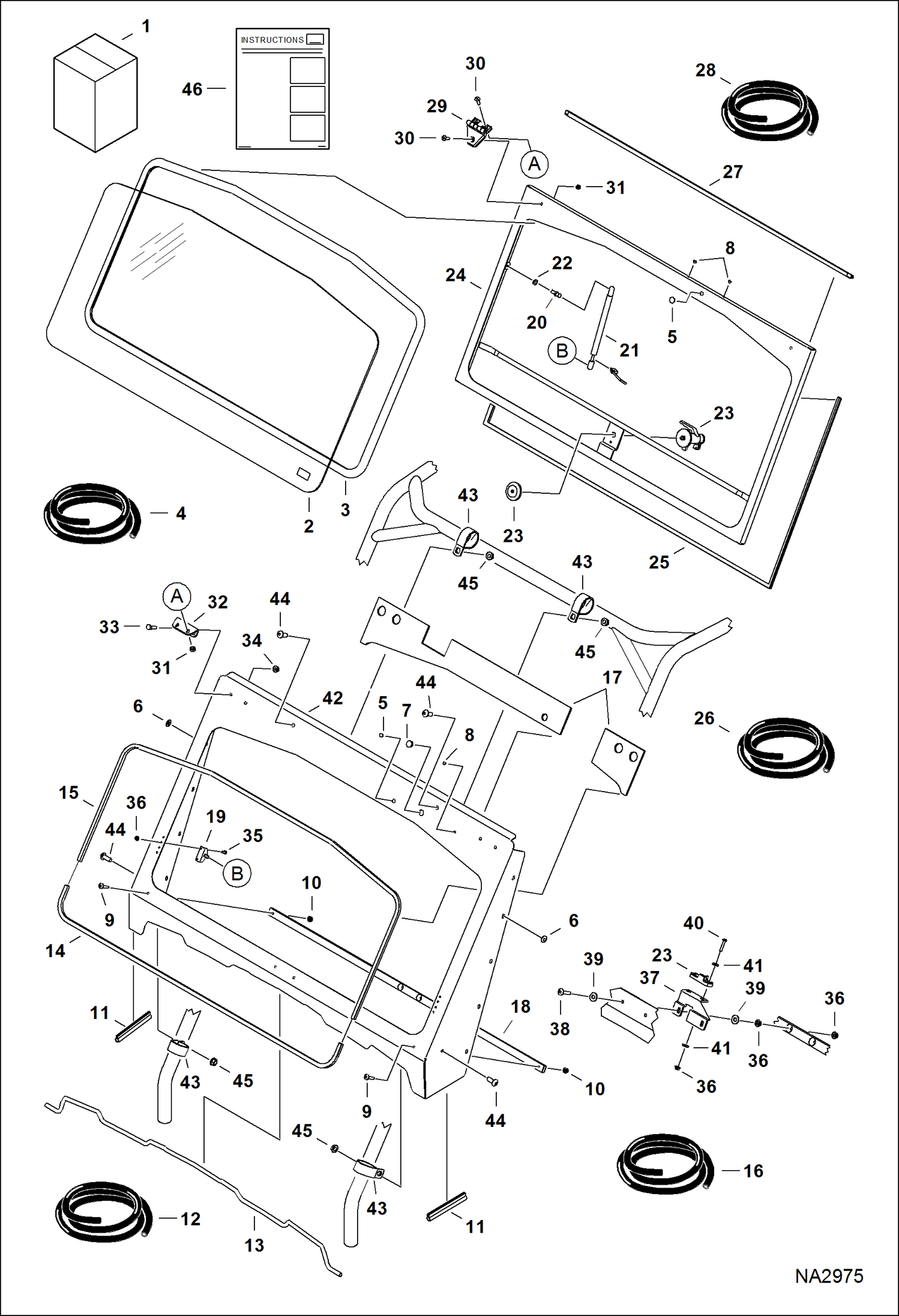

Схема запчастей Bobcat 3200 - CAB PANELS (Steel) (Tip Out Windshield) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7227828

KIT, WINDSHIELD TIP Ref. 2-43

2

7021663

WINDOW, CAB FRONT

3

SEAL, WINDSHIELD RUBBER NLA - 3735 mm (147'') long - Order Ref. 4

4

7021723

SEAL WINDOW BULK/FT. bulk - sold per foot

5

7021709

PLUG

6

7021710

PLUG

7

7021714

PLUG

8

7021711

PLUG

9

7021694

SCREW

10

7021701

NUT FLANGE

11

SEAL, FRAME NLA - 165 mm (6.5'') long - Order Ref. 12

12

7021728

SEAL WINDOW, BULK/FT bulk - sold per foot

13

TRIM, EDGE NLA - 1625 mm (61'') long - Order Ref.16

14

TRIM, EDGE NLA - 1475 mm (58'') long - Order Ref. 16

15

TRIM, EDGE NLA - 2160 mm (85'') ong - Order Ref. 16

16

7021726

TRIM, EDGE bulk - sold per foot

17

7021683

INSULATION cut to fit

18

7021731

TUBE STRUCTURAL

19

7021645

BRACKET

20

7021646

STUD, BALL

21

7021661

GAS SPRING

22

7021739

WASHER Was 4E5 - B

23

7021751

HANDLE assy W/striker

24

7021743

FRAME, WINDSHIELD

25

SEAL, FRAME NLA - 2675 mm (105.25'') long - Order Ref. 26

26

7021716

SEAL BULK WINDOW bulk - sold per foot

27

NLA - 1350 mm (53.25'') long - Order Ref. 28

28

7021729

SEAL BULK WINDOW bulk - sold per foot

29

7021674

HINGE, WINDOW

30

7021697

SCREW

31

7021704

NUT, LOCK

32

7021687

MOUNT, HINGE

33

7021671

BOLT Was 1CM825 - B

34

7021702

NUT Was 43DM8 - B

35

7021691

SCREW

36

7021700

NUT Was 43DM5 - B

37

7021688

MOUNT, STRIKER

38

7021694

SCREW

39

7021736

WASHER Was 25E13 - B

40

7021693

SCREW

41

7021735

WASHER Was 25E10 - B

42

7021706

PANEL, WINDSHIELD

43

7021649

CLAMP

44

7021690

SCREW

45

43DM10

NUT

46

6990595

INSTRUCTIONS

Выбрано товаров: 46
