Запчасти Bobcat 3200 CAB PANELS (Steel) (Standard Windshield) ACCESSORIES & OPTIONS

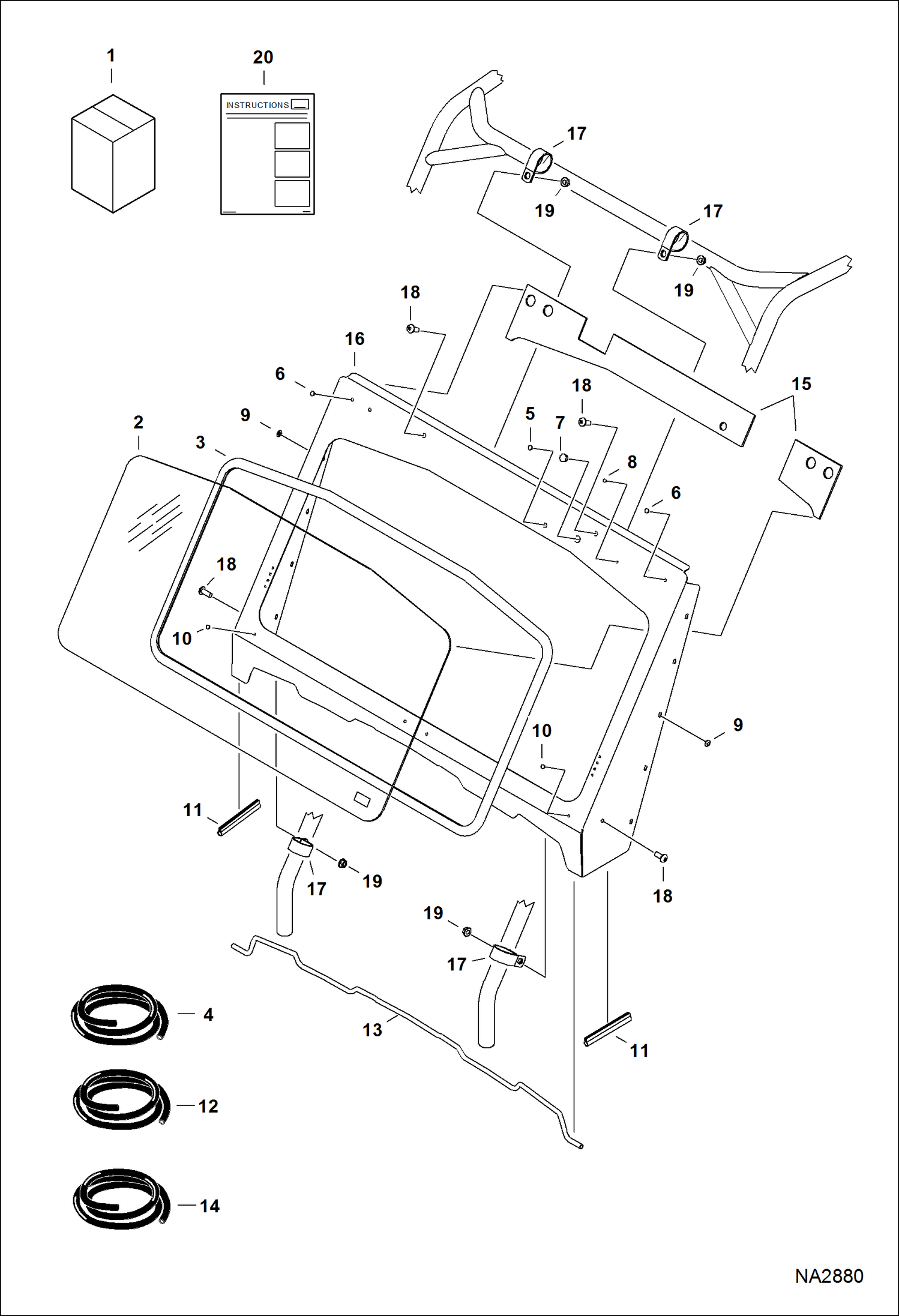

Схема запчастей Bobcat 3200 - CAB PANELS (Steel) (Standard Windshield) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7227827

KIT, WINDSHIELD FIXED Ref. 2-20

2

7021663

WINDOW, CAB FRONT

3

SEAL, WINDSHIELD RUBBER NLA - 3735 mm (147'') long - Order Ref. 4

4

7021723

SEAL WINDOW BULK/FT. bulk - sold per foot

5

7021709

PLUG

6

7021713

PLUG

7

7021714

PLUG

8

7021711

PLUG

9

7021712

PLUG

10

7021710

PLUG

11

SEAL, FRAME NLA - 165 mm (6.5'') long - Order Ref. 12

12

7021728

SEAL WINDOW, BULK/FT bulk - sold per foot

13

TRIM, EDGE NLA - 1625 mm (61'') long - Order Ref.14

14

7021726

TRIM, EDGE bulk - sold per foot

15

7021683

INSULATION cut to fit

16

7021706

PANEL, WINDSHIELD

17

7021649

CLAMP

18

7021690

SCREW

19

43DM10

NUT

20

6990595

INSTRUCTIONS

Выбрано товаров: 20
