Запчасти Bobcat 3200 CAB KIT (Steel) ACCESSORIES & OPTIONS

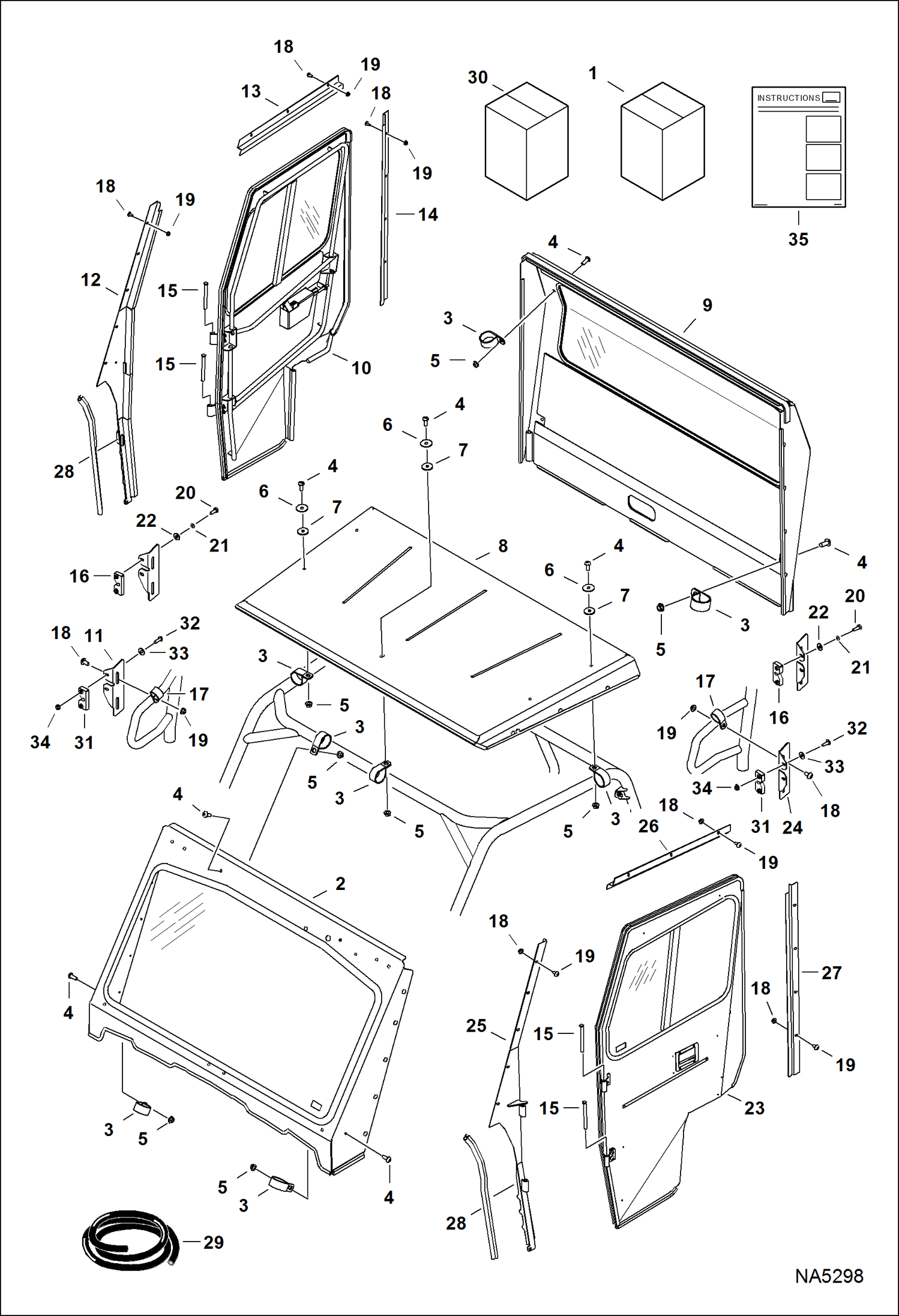

Схема запчастей Bobcat 3200 - CAB KIT (Steel) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7194729

KIT, CAB HARD Ref. 3-30 - Also order 1 of Ref. 2

2

7227827

KIT, WINDSHIELD FIXED See Illustration CAB PANELS/ NA2880 - for standard fixed windshield - Was 7196037 - A

2

7227828

KIT, WINDSHIELD TIP See Illustration CAB PANELS/ NA2975 - for tip out windshield - Was 7196038 - A

3

7021649

CLAMP

4

7021690

SCREW

5

43DM10

NUT

6

7021734

WASHER

7

7021733

WASHER

8

7021748

PANEL, CAB TOP See Illustration CAB PANELS/ NA2974

9

7021747

PANEL, CAB REAR See Illustration CAB PANELS/ NA2974

10

7021644

DOOR, SLIDER RH ASSY See Illustration CAB DOOR/ NA2976

11

7021686

MOUNT, DOOR LATCH RH

12

7021746

MOUNT, HINGE

13

7021655

STRIP, DOOR CAB

14

7021722

FRAME, DOOR CAB

15

7021707

PIN, CLEVIS

16

LATCH NLA - Order Ref. 30 - Was 7021684

17

7021648

CLAMP

18

7021695

SCREW

19

7021702

NUT Was 43DM8 - B

20

7021669

BOLT Was 17C412 - B

21

7021738

WASHER Was 4E4 - B

22

7021736

WASHER Was 25E13 - B

23

7021643

DOOR, SLIDER LH ASSY See Illustration CAB DOOR/ NA2976

24

7021685

MOUNT, DOOR LATCH LH

25

7021745

MOUNT, HINGE

26

7021654

STRIP, DOOR CAB

27

7021721

FRAME, DOOR CAB

28

SEAL, FRAME NLA - 685 mm (27'') long - Order Ref. 29

29

7021728

SEAL WINDOW, BULK/FT bulk - sold per foot

30

7023091

KIT, LATCH Ref. 31-34

31

LATCH NSS - Order Ref. 30

32

7021692

SCREW

33

7021735

WASHER Was 25E10 - B

34

7021700

NUT Was 43DM5 - B

35

6989752

INSTRUCTIONS

Выбрано товаров: 36
