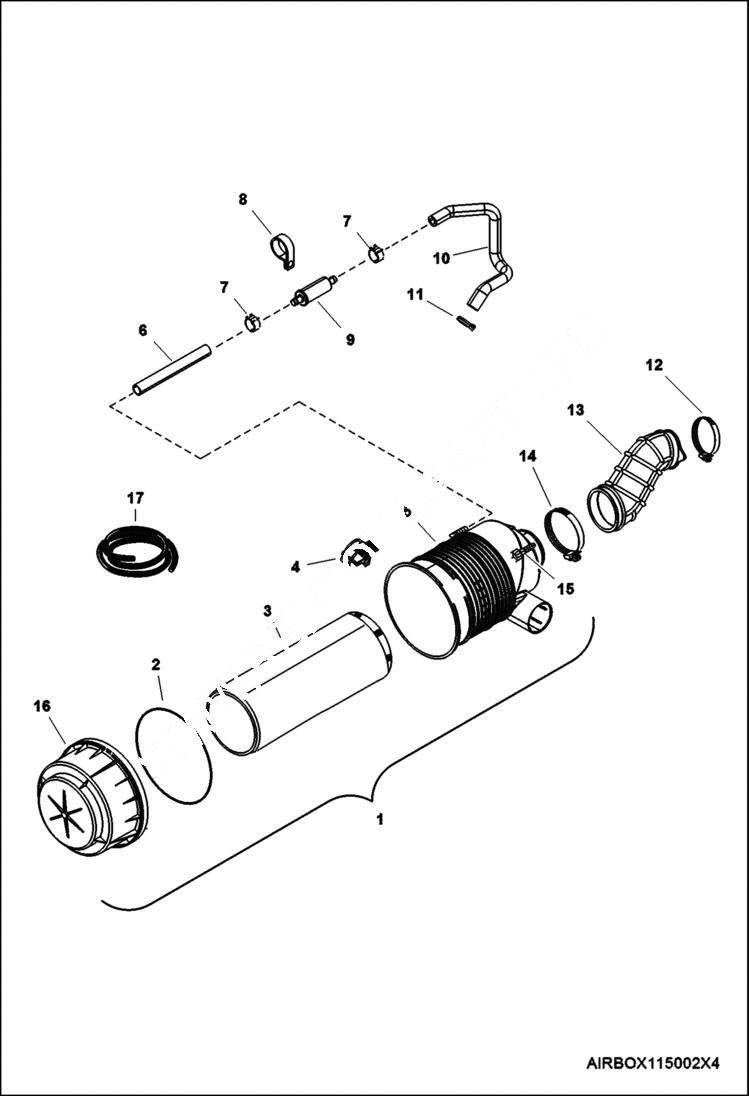

Запчасти Bobcat 3200 AIR CLEANER POWER UNIT

1

AIR CLEANER ASSY NLA - Ref. 2-5, 15 & 16 - Order individual components- Was 7016003

2

7016654

SEAL, AIR BOX COVER

3

7016381

FILTER, AIR INTAKE

4

7016312

CLIP, COVER, AIRBOX

5

7018883

HOUSING, AIR CLEANER

6

HOSE, BREATHER, 3/8 ID NLA - 300 mm (11.81'') long - Order Ref. 17

7

7016292

CLAMP, HOSE

8

7016305

CLAMP 25,4 mm (1'') dia

9

7016378

FILTER, BREATHER, IN LINE

10

7023369

HOSE, AIR FORMED Was 7016439 - A

11

7016295

CLAMP, HOSE, SPRING

12

7016288

CLAMP, NARROW BAND

13

7016181

BOOT, AIRBOX

14

7016289

CLAMP, BAND, NARROW

15

7016385

FITTING

16

7016324

COVER, AIRBOX

17

7016472

HOSE, LINE, BREATHER, 3/8 ID. - BULK/FT bulk - sold per foot
