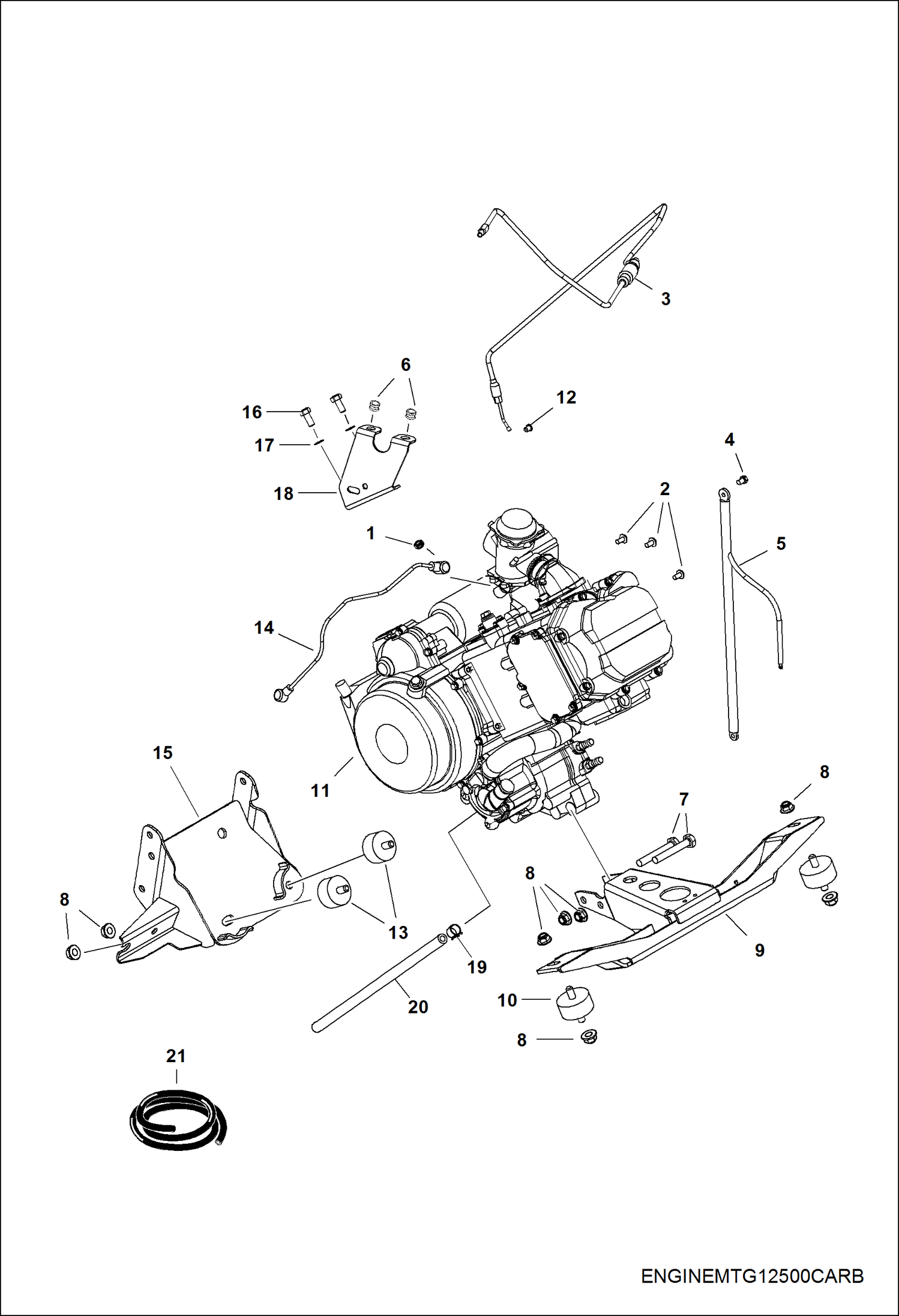

Запчасти Bobcat 3200 ENGINE, MOUNTING POWER UNIT

1

7016495

NUT

2

7016002

SCREW

3

7016264

CABLE, THROTTLE

4

7016099

BOLT

5

7016248

CABLE, NEGATIVE

6

7016417

GROMMET, RUBBER MOUNT

7

7016155

BOLT

8

7016511

NUT

9

7016810

MOUNT, ENGINE, BLK

10

7016459

ISOLATOR

11

7023449

BLOCK, SHORT ENG short block assembly contains a crankcase assembly, cylinder & cylinder head assembly, & a piston & crankshaft assembly

11

7020644

BLOCK, SHORT ENG short block assembly contains a crankcase assembly, cylinder & cylinder head assembly, & a piston & crankshaft assembly

12

7018707

GUIDE, CABLE

13

7016458

INDEX, ISOLATOR 3/8, 24M, 3/8,16M, 60DUR

14

7016262

CABLE, POSITIVE

15

7016828

MOUNT, ENGINE, REAR, BLK

16

7016088

BOLT

17

7016769

WASHER, SPRING LOCK

18

7016487

MOUNT, ENGINE, TOP PLTD

19

7016294

CLAMP, HOSE

20

HOSE, BREATHER NLA - 120 mm (4.75'') long - Order Ref. 21

21

7017591

HOSE, FUEL 1/4 ID - BULK/FT bulk - sold per foot
