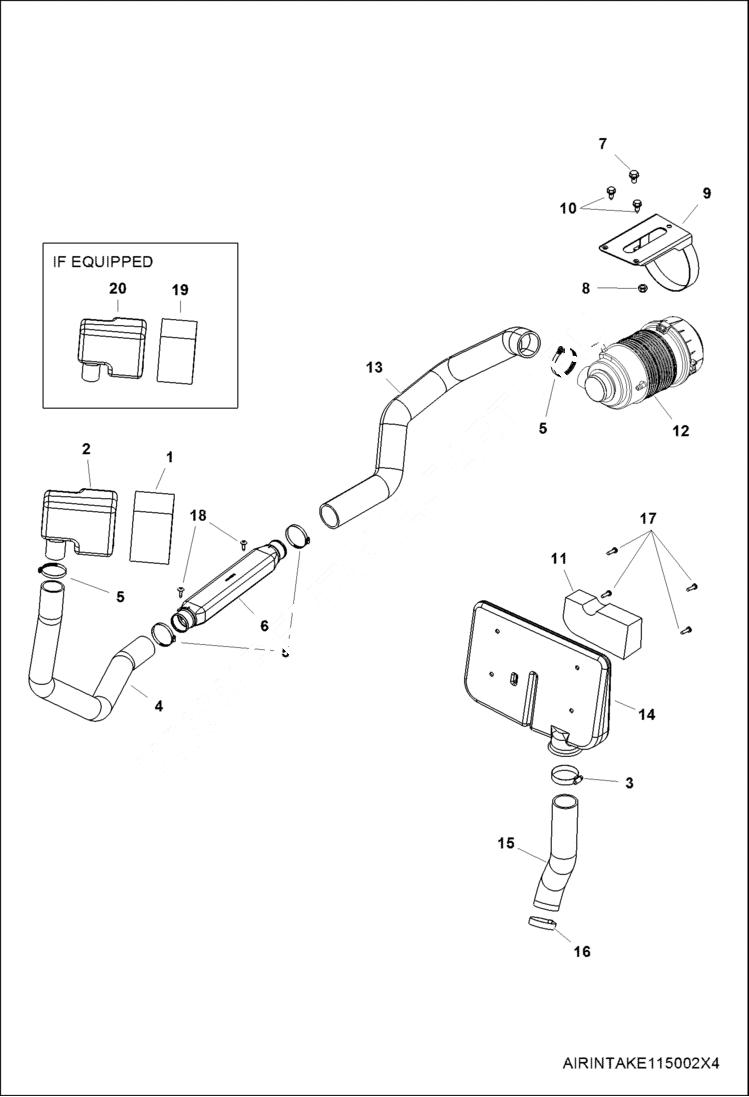

Запчасти Bobcat 3200 ENGINE, AIR INTAKE (S/N AJNS11001 - 19999) POWER UNIT

1

7016382

FILTER, AIR Use W/Ref. 2 housing NLA 7016190

2

7016190

HOUSING, BOX BAFFLE NLA - (5437958) - Order 7025282 housing and 7025283 filter - Was 7016190

3

7016287

CLAMP, HOSE, S.S.

4

7016443

HOSE, DUCT, AIR INTAKE

5

7016296

CLAMP

6

7016367

DUCT, AIR INTAKE

7

7016618

SCREW

8

7016507

NUT

9

7016786

BRACKET, AIR CLEANER HANGER

10

7016616

SCREW

11

7016384

FILTER, INTAKE, CLUTCH

12

FILTER, AIR CLEANER ASSY See Illustration AIR CLEANER/ AIRBOX115002X4

13

7016438

HOSE, AIRBOX

14

7016009

HOUSING, AIR BAFFEL, CLUTCH W/Ref. 11

15

7016440

HOSE, CLUTCH INTAKE,

16

7016289

CLAMP, BAND, NARROW

17

7018899

BOLT Was 7016590 - B

18

7016601

SCREW

19

7025283

FILTER, AIR Use W/Ref. 20 housing 7025282

20

7025282

HOUSING, BOX BAFFLE (5439597)
