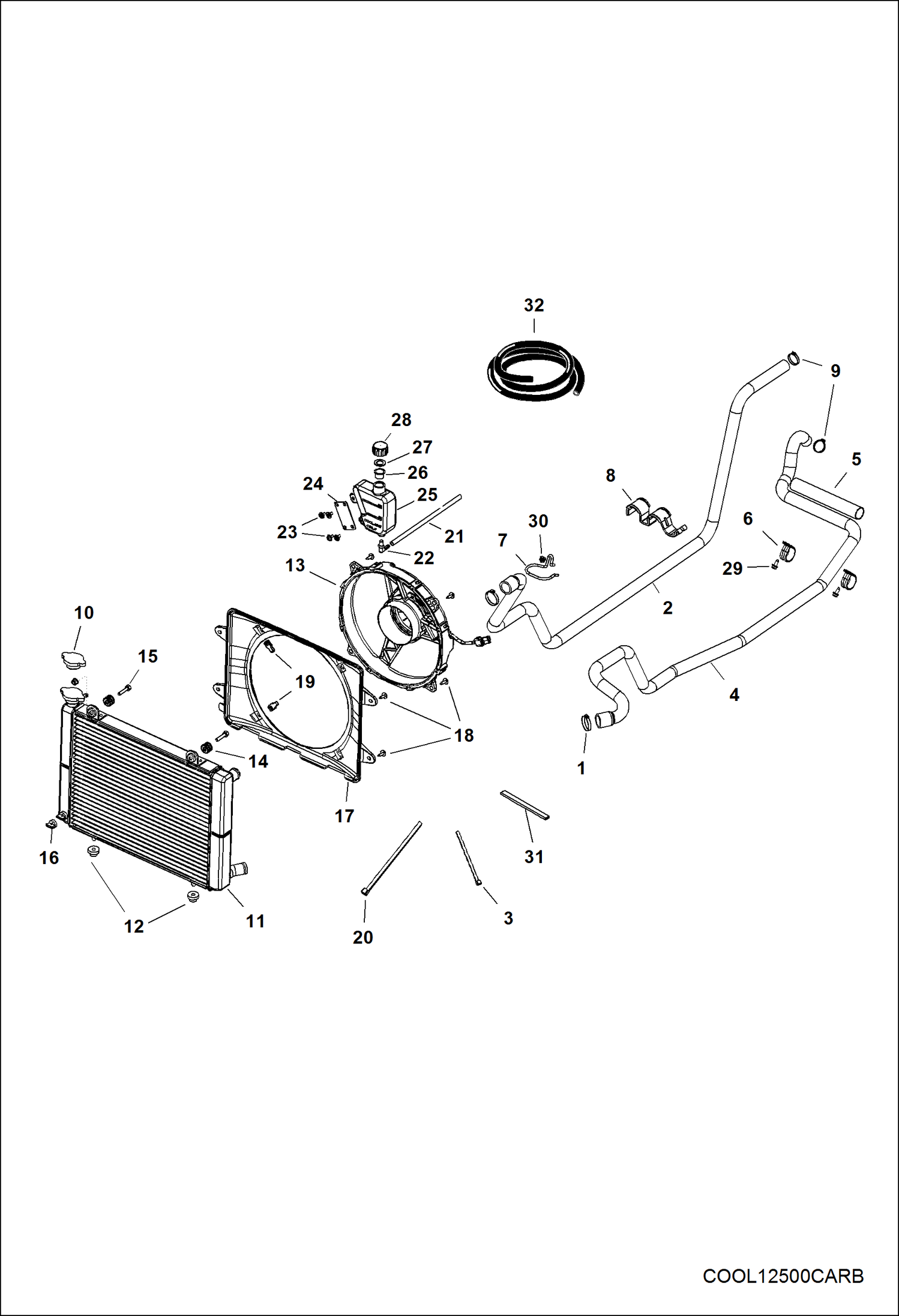

Запчасти Bobcat 3200 ENGINE, COOLING SYSTEM POWER UNIT

1

7016291

CLAMP, HOSE 17,7 mm - 31,7 mm (.700'' - 1.25'')

2

7016429

HOSE, RAD INLET 19 mm (.75'') ID

2

7023368

HOSE, WATER FORMED

3

7016245

TIE, CABLE

4

7016430

HOSE, RAD OUTLET

4

7023367

HOSE, WATER FORMED

5

7016672

SHIELD, SHEATH, REFLECT SLEEVE, CM

6

7016304

CLAMP, CUSHIONED 31,8 mm (1.25'')

7

7016448

HOSE, RETAINER

8

7016310

CLIP, COOLANT, ROUTING

9

7016302

CLAMP, HOSE 20,6 mm - 38,1 mm (.8125'' - 1.5'' )

10

7016275

CAP, PRESSURE

11

7016568

RADIATOR, CORE

12

7016240

BUSHING, MOUNT, LOWER RADIATOR

13

7016370

FAN

13

7016466

KIT, FAN W/7017469 sealed 20 amp circuit breaker

14

7016054

GROMMET

15

7016596

SCREW

16

7016744

VALVE, DRAIN plastic - radiator/cooler

17

7016682

SHROUD, FAN

18

7016621

SCREW

19

7016307

CLIP

20

7016246

STRAP, TIE 355,6 mm (14'') long

21

HOSE, BREATHER NLA - 430 mm (17'') long - Order Ref. 32

22

7016388

FITTING, 90 DEGREE

23

7016628

SCREW

24

7016222

BRACKET, SURGE TANK

25

7016735

TANK, SURGE

26

7016273

CAP, PLUG

27

7016410

GASKET

28

7016270

CAP, OVERFLOW

29

7016645

SCREW

30

7016633

SCREW

31

7019002

TRIM, EDGE 1525 mm (5') long

32

7017591

HOSE, FUEL 1/4 ID - BULK/FT bulk - sold per foot
