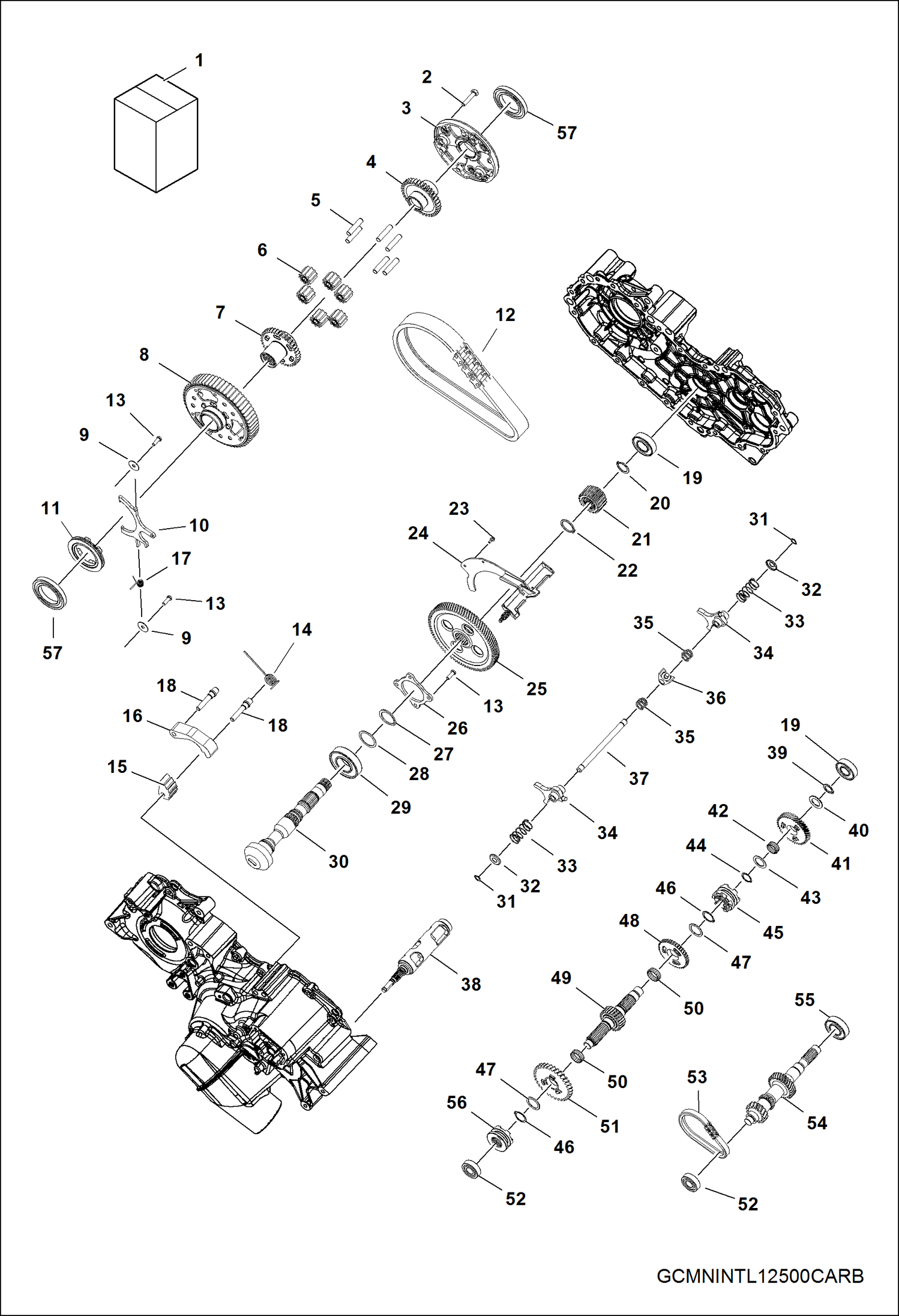

Запчасти Bobcat 3200 DRIVE TRAIN, MAIN GEARCASE INTERNAL (S/N AJNS20001 & Above) DRIVE TRAIN

1

7023346

TRANSMISSION, GEARCASE ASSY Ref. 2-57

2

7017677

SCREW

3

7017412

CARRIER, SUB ASSY

4

7017713

SIDE, GEAR 36T SUB ASSEMBLY

5

7017623

PIN, DOWEL 10X45

6

7017411

GEAR, SUB ASSY

7

7017714

SIDE, GEAR 36T DISCONNECT SUBASM

8

7017413

CARRIER, SUB ASSY

9

7017760

WASHER

10

7017526

FORK, PIVOT SHIFT REAR DIFF

11

7017516

KNUCKLE, DOG ENGAGEMENT

12

7017410

CHAIN

13

7017683

SCREW

14

7017727

SPRING, TORSION

15

7017478

CAM, CHAIN TENSIONER

16

7017712

SHOE, CHAIN TENSIONER

17

7017724

SPRING, TORSION RETURN

18

7017622

PIN, DOWEL

19

7017442

BEARING

20

7017652

RING, SNAP

21

7017738

SPROCKET 19 teeth - 31,8 mm (1.25'')

22

7017663

RING, RETAINING

23

7017674

SCREW

24

7017606

DEFLECTOR, OIL

25

7017534

GEAR, OUTPUT 19T

26

7017500

COVER, CENTER DRIVE BEARING

27

7017653

RING, RETAINING

28

7017710

SHIM, 1.700 X 1.385

29

7017456

BEARING, BALL

30

7017625

PINION, 13T CENTER DRIVE

31

7017661

RING, RETAINING

32

7017765

WASHER, CUP

33

7017732

SPRING, COMP

34

7017706

FORK, SHIFT

35

7017731

SPRING, COMP

36

7017495

COLLAR, SHIFT

37

7017642

SHAFT, SHIFT

38

7018866

DRUM, SHIFT

39

7017662

RING, RETAINING

40

7017754

WASHER

41

7023362

GEAR, HELICAL 42T

42

7017455

BEARING,NEEDLE

43

7017752

WASHER

44

7017655

RING, RETAINING EXTERNAL 0.84

45

7017519

KNUCKLE, ENGAGEMENT DOG 6 FACE

46

7017654

RING, RETAINING

47

7017764

WASHER, THRUST

48

7017737

SPROCKET, 38T 6-FACE

49

7017700

SHAFT, REVERSE 26T

50

7017451

BEARING, NEEDLE

51

7023359

GEAR, 33T

52

7017449

BEARING, BALL 6203 C3 17X40X12

53

7017483

CHAIN, .25P X .40W X 50L

54

7023361

SHAFT, INPUT 32T

55

7017441

BEARING

56

7023360

KNUCKLE, ENGAGEMENT DOG

57

7017448

BEARING, BALL 50 X 80 X 10
