Запчасти Bobcat 3200 DRIVE TRAIN, MAIN GEARCASE INTERNAL (S/N AJNS11001 - 19999) DRIVE TRAIN

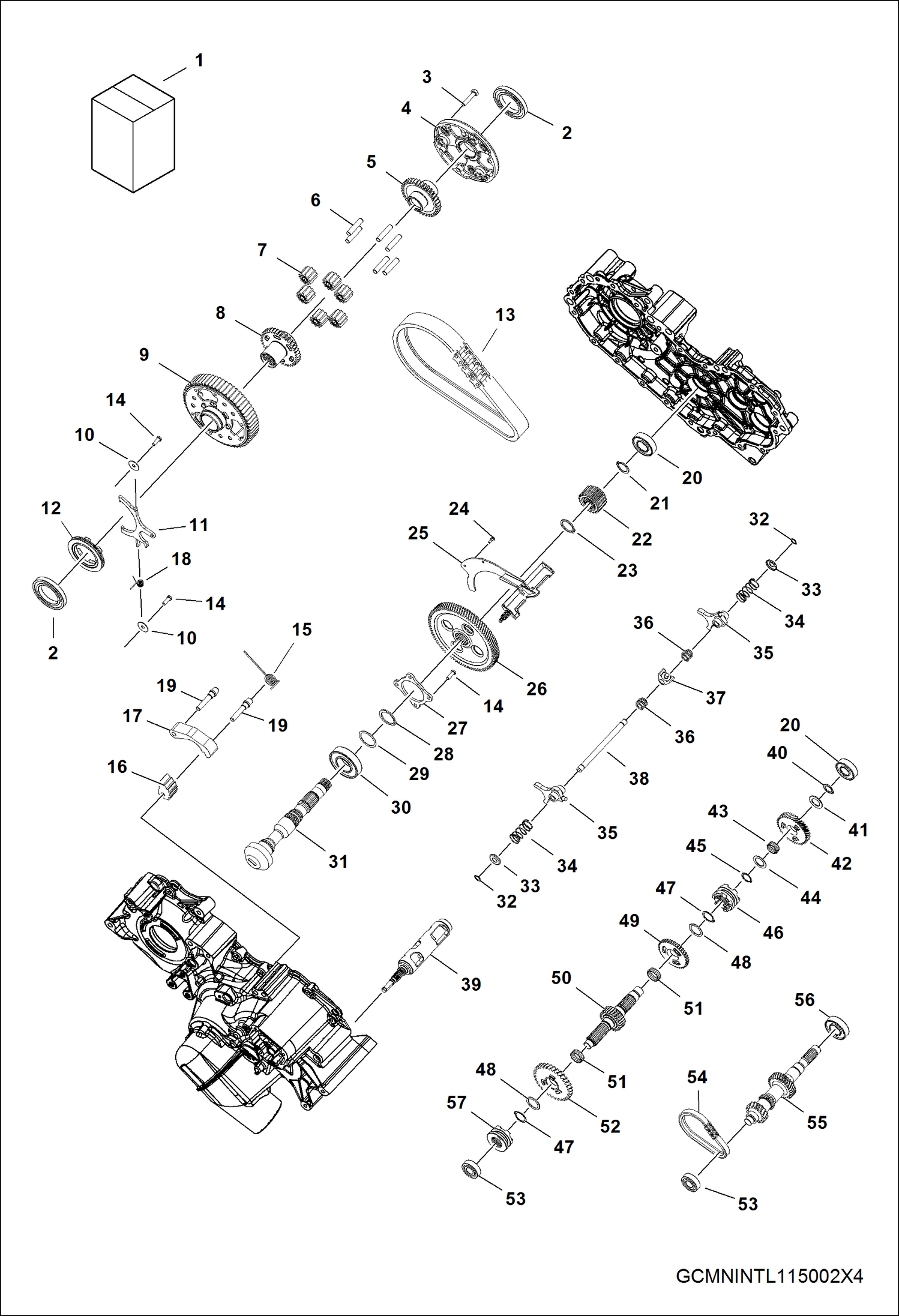

Схема запчастей Bobcat 3200 - DRIVE TRAIN, MAIN GEARCASE INTERNAL (S/N AJNS11001 - 19999) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7016051

TRANSMISSION, GEARCASE ASSY Ref. 2-57

2

7017448

BEARING, BALL 50 X 80 X 10

3

7017677

SCREW

4

7017412

CARRIER, SUB ASSY

5

7017713

SIDE, GEAR 36T SUB ASSEMBLY

6

7017623

PIN, DOWEL 10X45

7

7017411

GEAR, SUB ASSY

8

7017714

SIDE, GEAR 36T DISCONNECT SUBASM

9

7017413

CARRIER, SUB ASSY

10

7017760

WASHER

11

7017526

FORK, PIVOT SHIFT REAR DIFF

12

7017516

KNUCKLE, DOG ENGAGEMENT

13

7017410

CHAIN

14

7017683

SCREW

15

7017727

SPRING, TORSION

16

7017478

CAM, CHAIN TENSIONER

17

7017712

SHOE, CHAIN TENSIONER

18

7017724

SPRING, TORSION RETURN

19

7017622

PIN, DOWEL

20

7017442

BEARING

21

7017652

RING, SNAP

22

7017738

SPROCKET 19 teeth - 31,8 mm (1.25'')

23

7017663

RING, RETAINING

24

7017674

SCREW

25

7017606

DEFLECTOR, OIL

26

7017534

GEAR, OUTPUT 19T

27

7017500

COVER, CENTER DRIVE BEARING

28

7017653

RING, RETAINING

29

7017710

SHIM, 1.700 X 1.385

30

7017456

BEARING, BALL

31

7017625

PINION, 13T CENTER DRIVE

32

7017661

RING, RETAINING

33

7017765

WASHER, CUP

34

7017732

SPRING, COMP

35

7017706

FORK, SHIFT

36

7017731

SPRING, COMP

37

7017495

COLLAR, SHIFT

38

7017642

SHAFT, SHIFT

39

7018866

DRUM, SHIFT

40

7017662

RING, RETAINING

41

7017754

WASHER

42

7017703

SHAFT, INPUT 31T

43

7017455

BEARING,NEEDLE

44

7017752

WASHER

45

7017655

RING, RETAINING EXTERNAL 0.84

46

7017519

KNUCKLE, ENGAGEMENT DOG 6 FACE

47

7017654

RING, RETAINING

48

7017764

WASHER, THRUST

49

7017737

SPROCKET, 38T 6-FACE

50

7017700

SHAFT, REVERSE 26T

51

7017451

BEARING, NEEDLE

52

7017535

GEAR, 33T 6-FACE

53

7017449

BEARING, BALL 6203 C3 17X40X12

54

7017483

CHAIN, .25P X .40W X 50L

55

7017703

SHAFT, INPUT 31T

56

7017441

BEARING

57

7018867

KNUCKLE, ENGAGEMENT DOG

Выбрано товаров: 57
