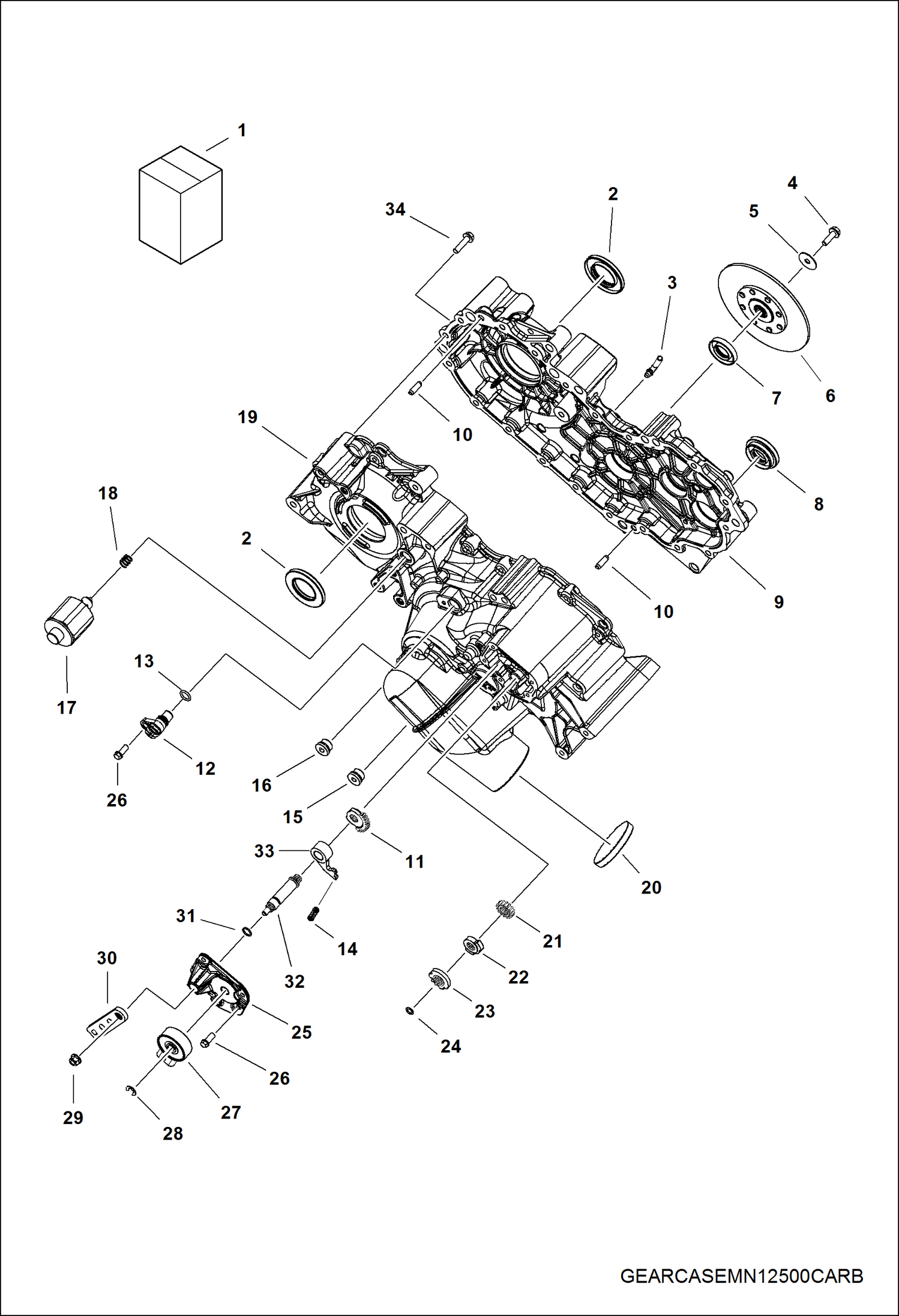

Запчасти Bobcat 3200 DRIVE TRAIN, MAIN GEARCASE (S/N AJNS20001 & Above) DRIVE TRAIN

1

7023346

TRANSMISSION, GEARCASE ASSY Ref. 2-34

2

7017691

SEAL, TRIPLE LIP 40X70X7

3

7017745

TUBE, VENT

4

7023358

SCREW

5

7017766

WASHER

6

7017740

HUB, BRAKE SUB ASSY

7

7017694

SEAL, TRIPLE LIP

8

7017688

SEAL

9

7017498

COVER, LH MACH

10

7017619

PIN, DOWEL 5/16 X 1.0

11

7017541

GEAR, SECTOR 31T-CUT TO 11T

12

7016666

SENSOR, SPEED, TRANS

13

7017616

O-RING

14

7017730

SPRING, COMP

15

7017634

PLUG, MAGNETIC

16

7017638

PLUG, HEX hollow - W/ O-ring

17

7017715

SOLENOID

18

7017726

SPRING, COMP 54 OD X .44ID X .05

19

7023357

HOUSING, GEARCASE RH

20

7018684

PLUG, EXPANSION

21

7017540

GEAR, SECTOR 16T

22

7017513

BRAKE, DISC LOCKOUT

23

7017509

HOUSING, DETENT STAR

24

7017611

O-RING

25

7017497

COVER, GEARCASE

26

7017679

SCREW

27

7017743

SWITCH, ROTARY 6 PIN

28

7017660

RING, RETAINING

29

7017604

NUT

30

7017461

BELLCRANK, HLNRP

31

7017612

O-RING

32

7017704

SHAFT, SHIFT

33

7017618

CATCH, PAWL DETENT

34

7017686

SCREW
