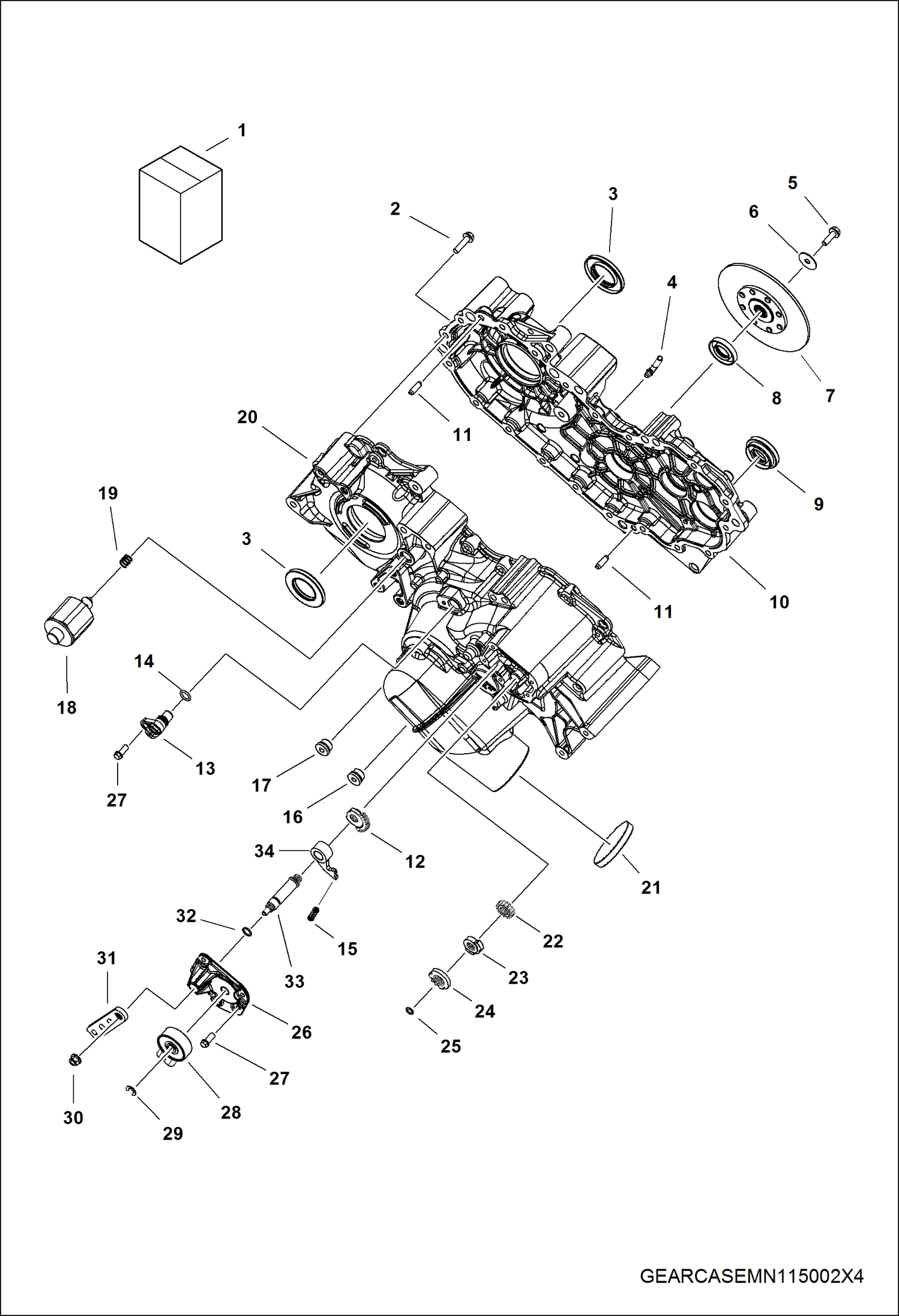

Запчасти Bobcat 3200 DRIVE TRAIN, MAIN GEARCASE (S/N AJNS11001 - 19999) DRIVE TRAIN

1

7016051

TRANSMISSION, GEARCASE ASSY Ref. 2-34

2

7017686

SCREW

3

7017691

SEAL, TRIPLE LIP 40X70X7

4

7017745

TUBE, VENT

5

7017673

SCREW

6

7017766

WASHER

7

7017740

HUB, BRAKE SUB ASSY

8

7017694

SEAL, TRIPLE LIP

9

7017688

SEAL

10

7017498

COVER, LH MACH

11

7017619

PIN, DOWEL 5/16 X 1.0

12

7017541

GEAR, SECTOR 31T-CUT TO 11T

13

7016666

SENSOR, SPEED, TRANS

14

7017616

O-RING

15

7017730

SPRING, COMP

16

7017634

PLUG, MAGNETIC

17

7017638

PLUG, HEX hollow - W/ O-ring

18

7017715

SOLENOID

19

7017726

SPRING, COMP 54 OD X .44ID X .05

20

7017481

HOUSING, CASE RH MACH

21

7018684

PLUG, EXPANSION

22

7017540

GEAR, SECTOR 16T

23

7017513

BRAKE, DISC LOCKOUT

24

7017509

HOUSING, DETENT STAR

25

7017611

O-RING

26

7017497

COVER, GEARCASE

27

7017679

SCREW

28

7017743

SWITCH, ROTARY 6 PIN

29

7017660

RING, RETAINING

30

7017604

NUT

31

7017461

BELLCRANK, HLNRP

32

7017612

O-RING

33

7017704

SHAFT, SHIFT

34

7017618

CATCH, PAWL DETENT
