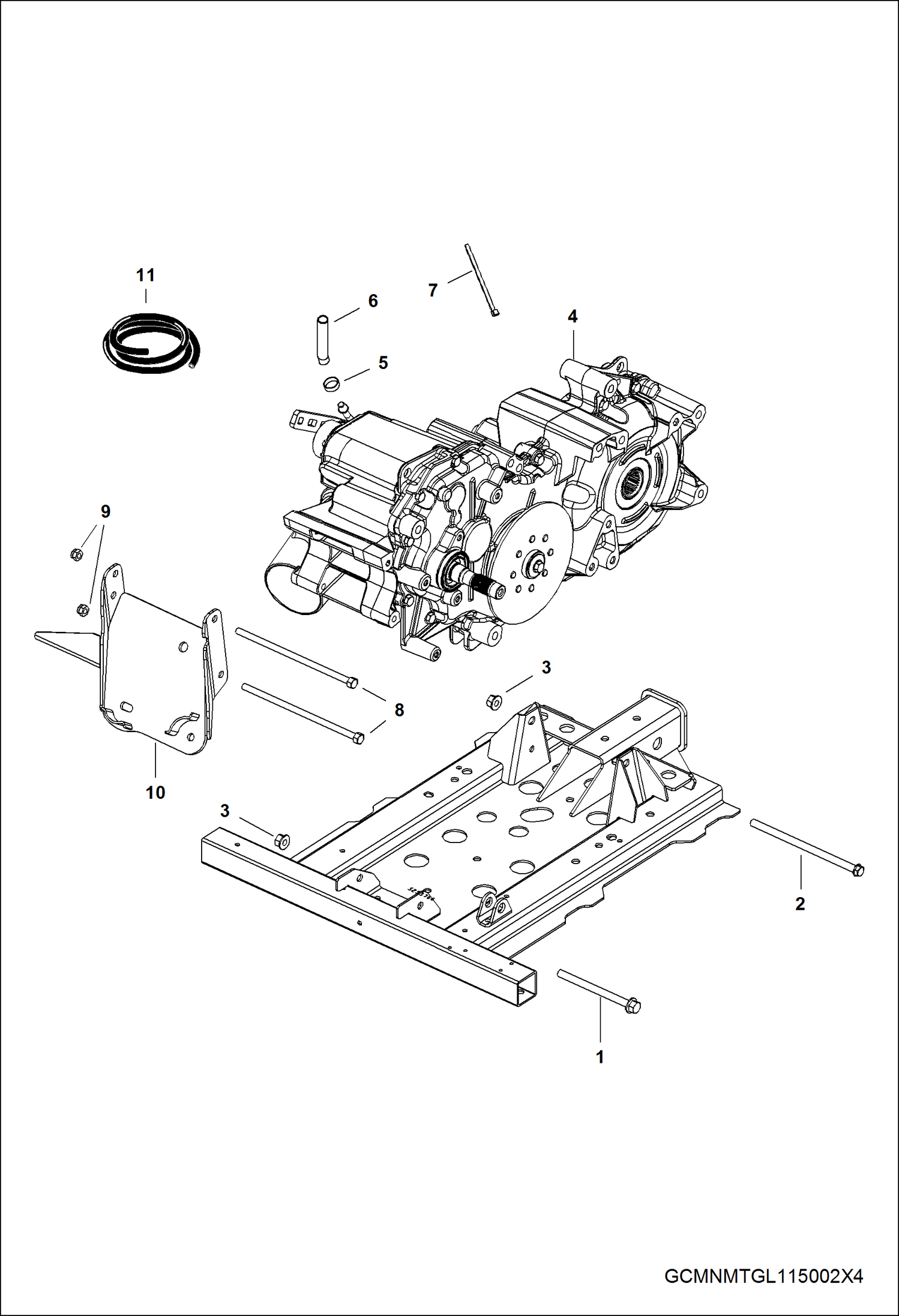

Запчасти Bobcat 3200 DRIVE TRAIN, MAIN GEARCASE MOUNTING DRIVE TRAIN

1

7016607

SCREW

2

7016153

BOLT

3

7016515

NUT

4

7016051

TRANSMISSION, GEARCASE ASSY See Illustration DRIVE TRAIN, MAIN GEARCASE INTERNAL/ GCMNINTL115002X4 See Illustration DRIVE TRAIN, MAIN GEARCASE/ GEARCASEMN115002X4

4

7023346

TRANSMISSION, GEARCASE ASSY See Illustration DRIVE TRAIN, MAIN GEARCASE INTERNAL/ GCMNINTL12500CARB See Illustration DRIVE TRAIN, MAIN GEARCASE/ GEARCASEMN12500CARB

5

7016294

CLAMP, HOSE

6

HOSE, FUEL 1/4 ID - BULK/FT NLA - 420 mm (16.5'') long - Order Ref. 11

7

7016245

TIE, CABLE

8

7016610

SCREW

9

7016503

NUT

10

7016828

MOUNT, ENGINE, REAR, BLK

11

7017591

HOSE, FUEL 1/4 ID - BULK/FT bulk - sold per foot
