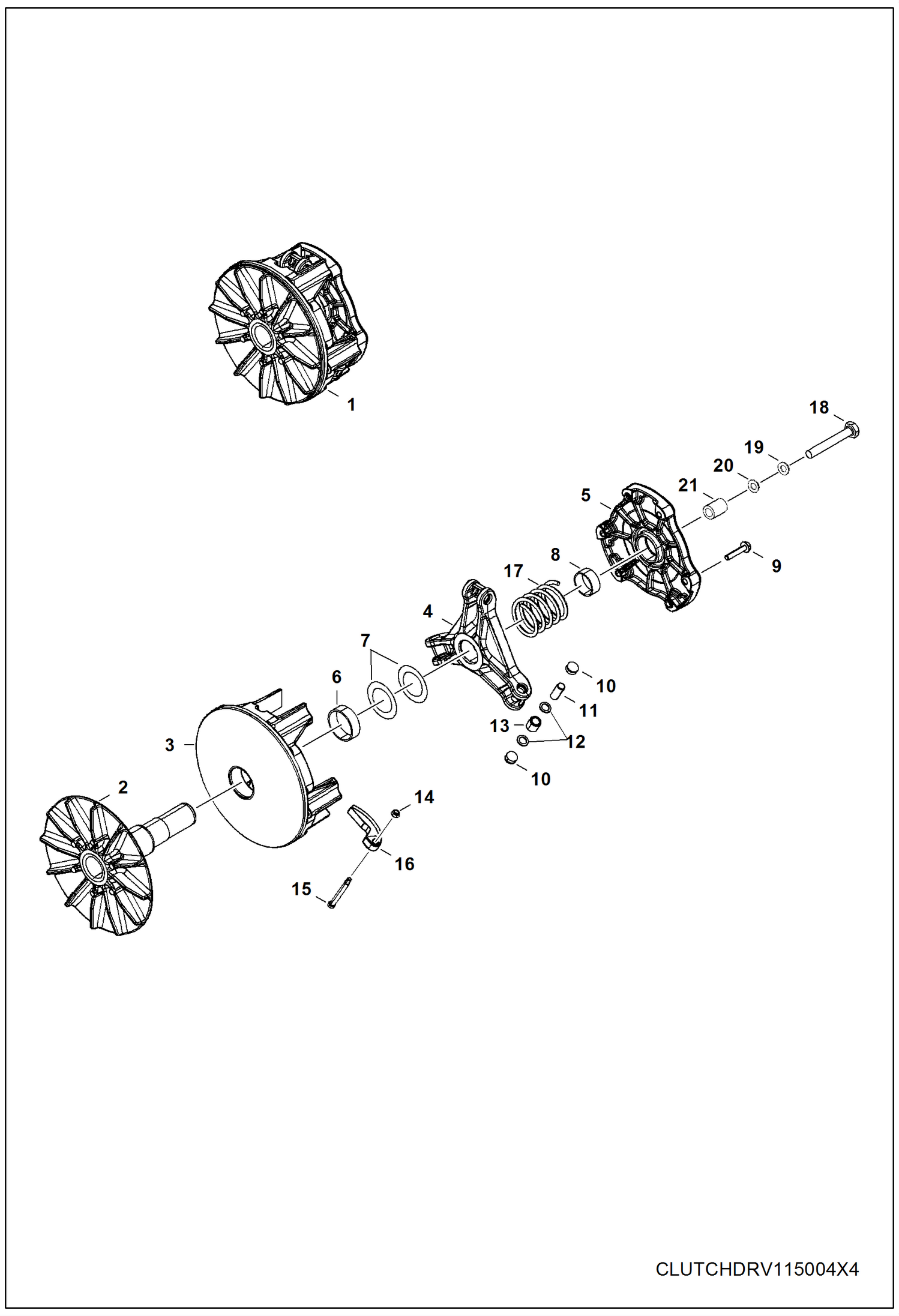

Запчасти Bobcat 3200 DRIVE TRAIN, PRIMARY CLUTCH DRIVE TRAIN

1

7016022

CLUTCH, BASIC, NARROW Ref. 2-15 - Also Order Ref. 16 & 17

2

SHEAVE, FIXED NSS - Order Ref. 1

3

SHEAVE, MOVEABLE NSS - Order Ref. 1

4

TOWER NSS - Order Ref. 1

5

COVER NSS - Order Ref. 1

6

7016233

BUSHING, MOVEABLE, 1/2 INCH

7

7016687

SPACER, .020

7

7016688

SPACER, .025

7

7016689

SPACER, .032

7

7016690

SPACER, .050

8

7016077

BEARING, COVER

9

7016597

SCREW

10

7016244

CAP, BUTTON, CLUTCH

11

7016551

PIN, ROLLER

12

7016776

WASHER, CLUTCH, SPIDER ROLLER

13

7016588

ROLLER, BUSHING ASSY

14

7016492

NUT

15

7016150

BOLT

16

7016781

WEIGHT, SHIFT, 25, 52G, PM

17

7016709

SPRING, CLUTCH blue/red

18

7016092

BOLT

19

7016755

WASHER LOCK

20

7016758

WASHER

21

7016228

BUSHING
