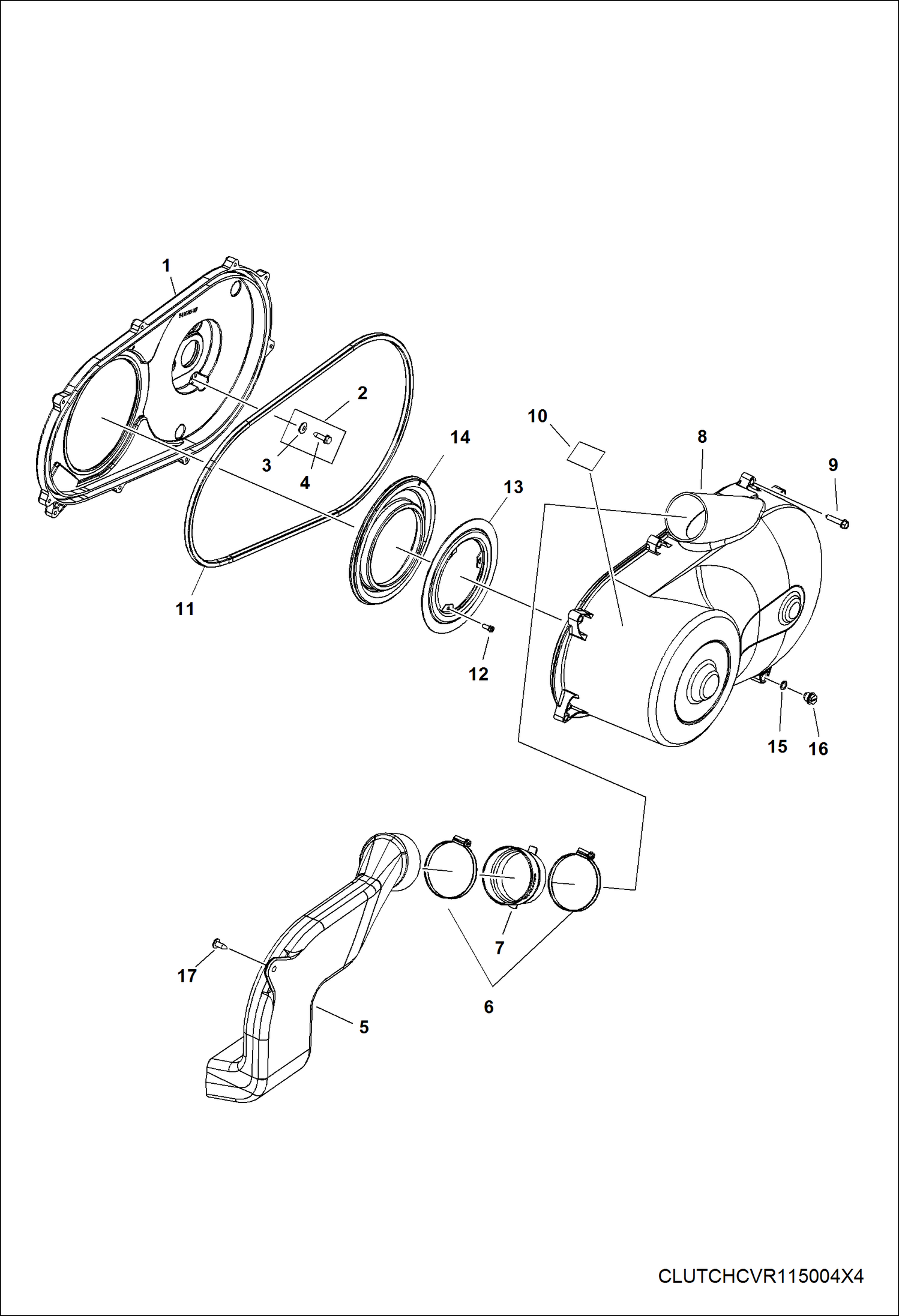

Запчасти Bobcat 3200 DRIVE TRAIN, CLUTCH COVER DRIVE TRAIN

1

7016021

COVER, CLUTCH INNER W/Ref. 11 & 14

2

7015999

BOLT Ref. 3 & 4

3

7016747

WASHER

4

7016626

SCREW

5

7016368

DUCT, CLUTCH, AIR OUTLET

6

7016298

CLAMP, BAND, NARROW 70, 90MM

7

7016185

BOOT, DUCT, HI, FLOW

8

7016028

COVER, CLUTCH OUTER HV W/Ref. 15 & 16

9

7016634

SCREW

10

7016362

DECAL, WARN, CLUTCH COVER

11

7016663

SEAL, OUTER CLUTCH COVER

12

7016002

SCREW

13

7016205

BRACKET, CLUTCH SEAL

14

7016661

SEAL, COVER CLUTCH INNER

15

7018878

ORING

16

7016564

PLUG, DRAIN

17

7016604

SCREW Was 7016601 - B
