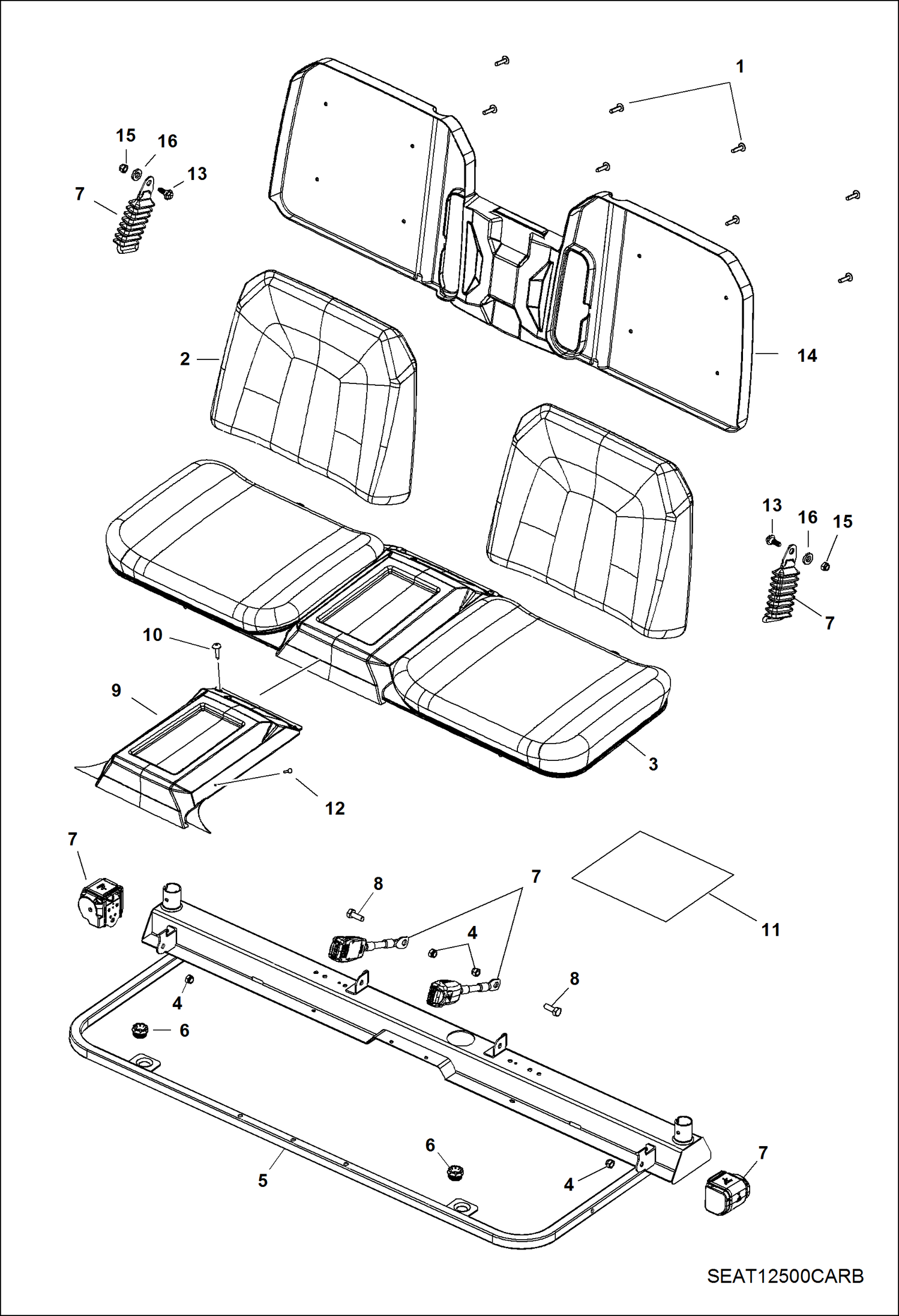

Запчасти Bobcat 3200 BODY, SEAT & BASE (S/N AJNS20001 & Above) MAIN FRAME

1

7018899

BOLT

2

7023379

SEAT, BACK GUNMETAL set of 2 cushions

3

7023380

SEAT, BOTTOM GUNMETAL bottom - W/Ref. 9, 10 & 12

4

7016512

NUT

5

7016804

BASE, CAB SEAT

6

7016413

GROMMET

7

7025298

SEATBELT, 3PT W/Ref. 13 & 15 - Was 7023117 - A

8

7016091

BOLT

9

7016319

CONSOLE, SEAT, BLK

10

7016650

SCREW

11

7016406

INSULATOR, FOIL, SEAT

12

7018902

RIVET

13

7023349

BOLT, SHOULDER

14

7023381

COVER, BACK SEAT BLACK

15

7023351

NUT, LOCK

16

7024106

WASHER, RUBBER
