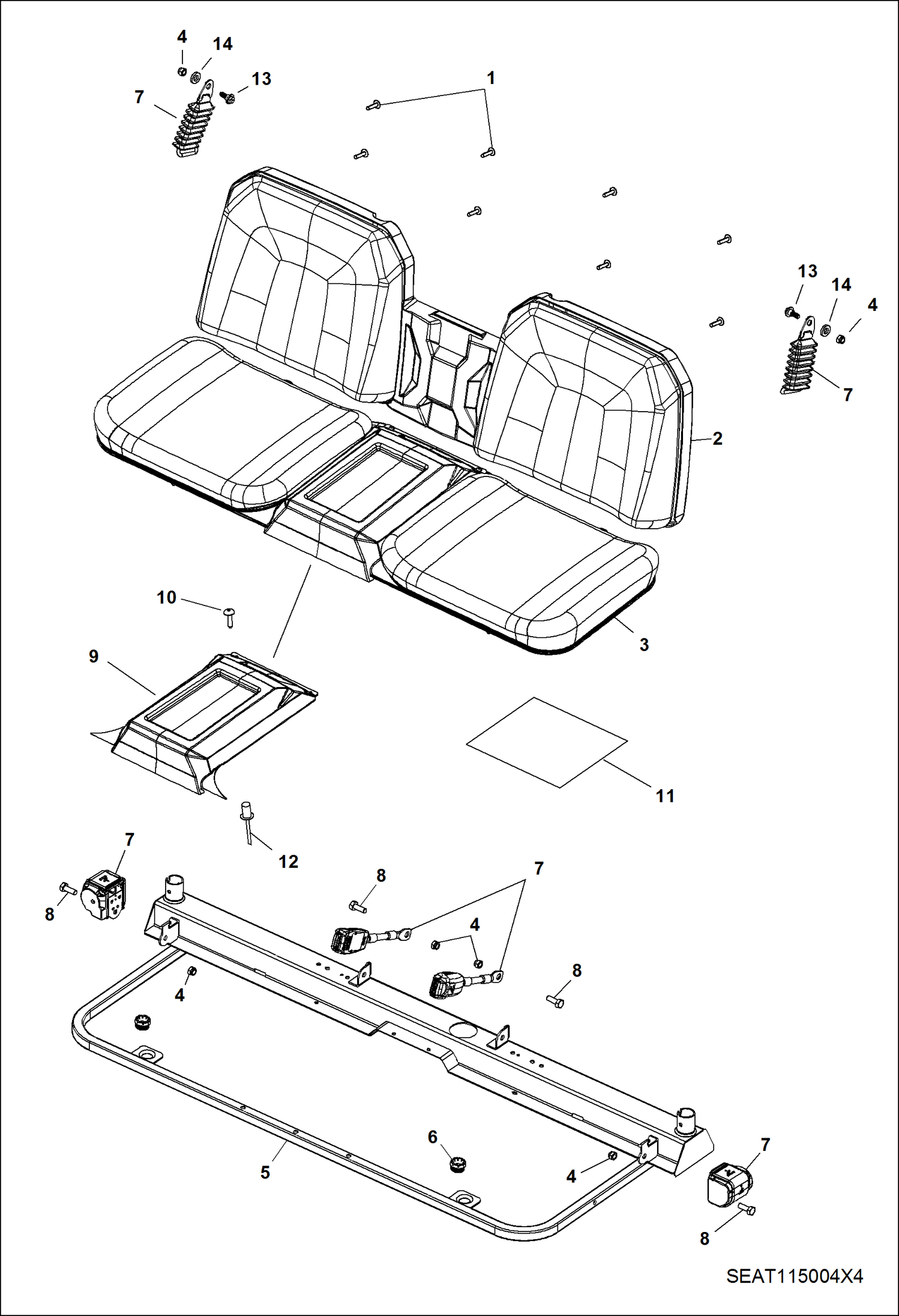

Запчасти Bobcat 3200 BODY, SEAT & BASE (S/N AJNS11001 - 19999) MAIN FRAME

1

7018899

BOLT

2

SEAT, GUNMETAL ASSY See Illustration BODY, SEAT & BASE/ SEAT12500CARB - NLA - Order 7023381 cover and 7023379 seat back - Was 7017431 - A

3

SEAT, GUNMETAL ASSY See Illustration BODY, SEAT & BASE/ SEAT12500CARB - NLA - Order 7023380 seat bottom - W/Ref. 9, 10 & 12

4

7016512

NUT

5

7016804

BASE, CAB SEAT

6

7016413

GROMMET

7

7025298

SEATBELT, 3PT W/Ref. 4 & 13 - Was 7023117 - A

8

7016091

BOLT

9

7016319

CONSOLE, SEAT, BLK

10

7016650

SCREW

11

7016406

INSULATOR, FOIL, SEAT

12

7018902

RIVET

13

7020704

BOLT

14

7024106

WASHER, RUBBER
