Запчасти Bobcat 3200 WIPER KIT (Tip Out) (Steel Cab) ACCESSORIES & OPTIONS

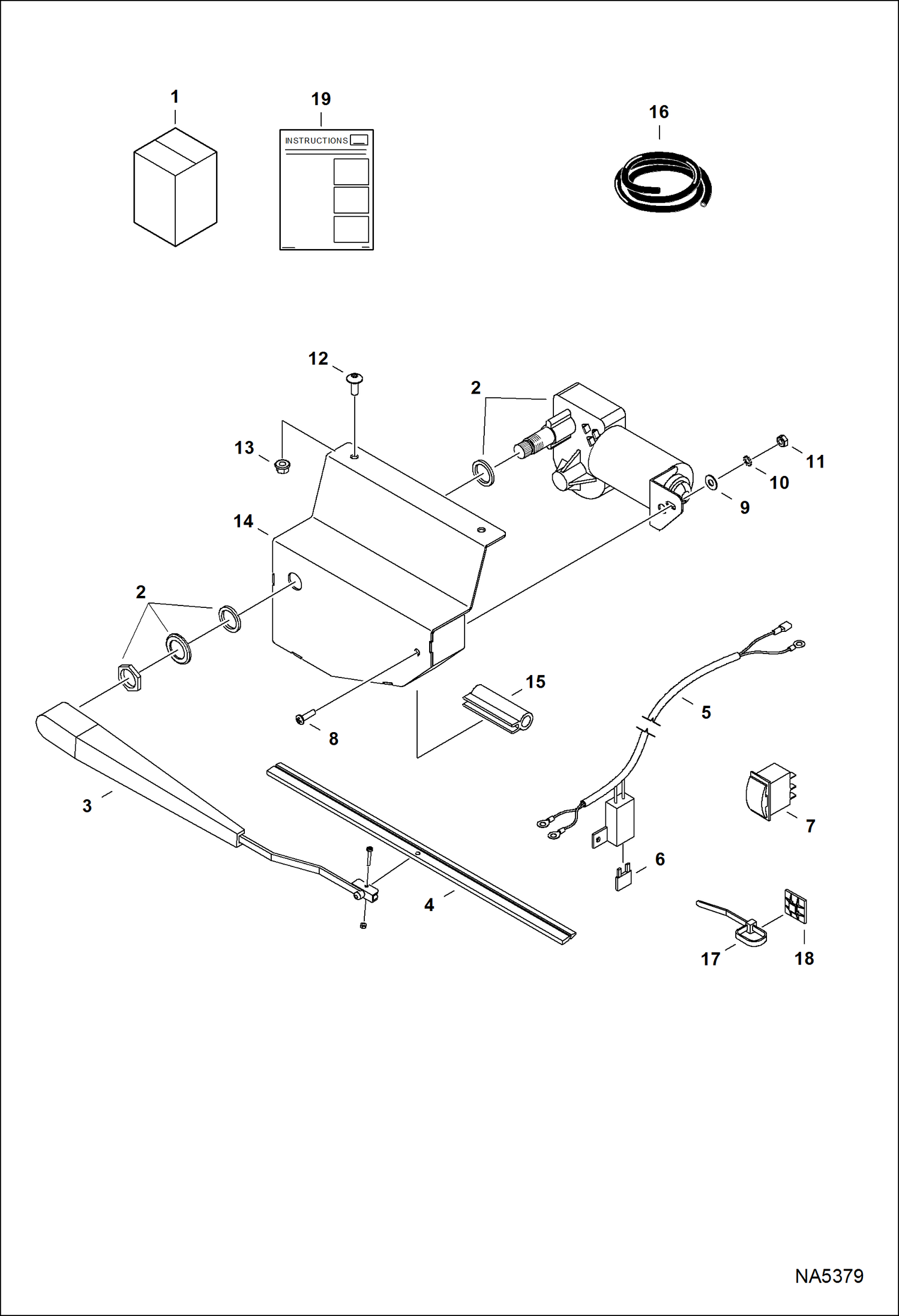

Схема запчастей Bobcat 3200 - WIPER KIT (Tip Out) (Steel Cab) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7194739

KIT, WIPER TIP OUT Ref. 2-19

2

7021758

MOTOR, WIPER

3

7021754

ARM, WIPER

4

7021755

BLADE, WIPER

5

7021759

HARNESS, WIPER W/Ref. 6

6

6663289

FUSE, 5A

7

7021725

SWITCH ROCKER

8

7021689

SCREW Was 87G1010 - B

9

7021735

WASHER Was 25E10 - B

10

12E10

WASHER

11

50D10

LOCKNUT

12

7021693

SCREW

13

7021701

NUT FLANGE Was 43DM6 - B

14

7021744

BRACKET, WIPER

15

TRIM, SEAL NLA - 64 mm (2.5'') long - Order Ref.14

16

7021728

SEAL WINDOW, BULK/FT bulk - sold per foot

17

6682345

STRAP, TIE 8 Was 7021763 - A

18

7021762

MOUNT, TIE STAP

19

6989755

INSTRUCTIONS Was 6989754 - D

Выбрано товаров: 19
