Запчасти Bobcat 3200 WINCH KIT ACCESSORIES & OPTIONS

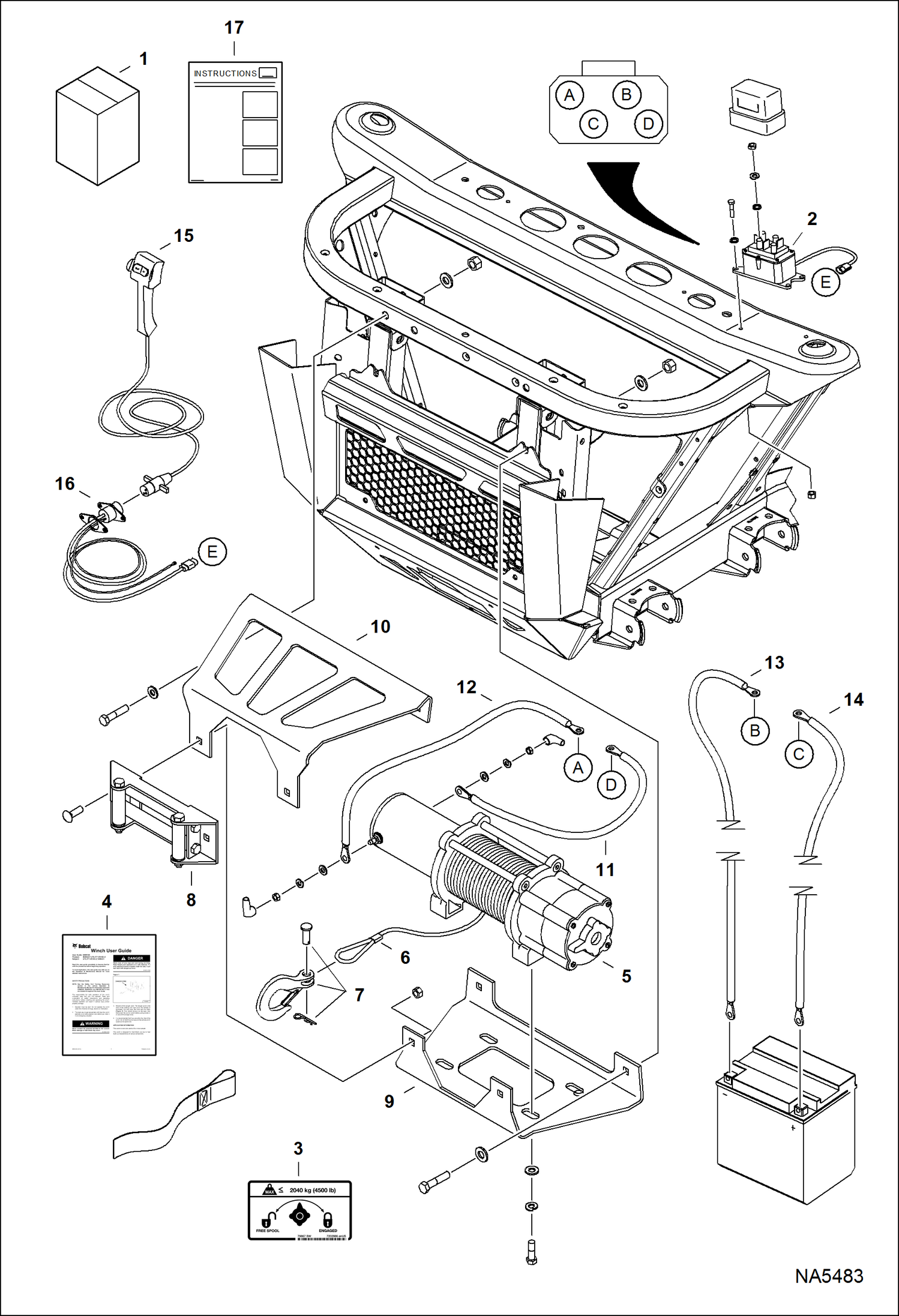

Схема запчастей Bobcat 3200 - WINCH KIT ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT, WINCH NLA - Ref. 2-17 - W/ring terminal on winch cable - Was 7194745 - A

1

7215327

KIT, WINCH Ref. 2-17 - W/straight end on winch cable

2

7023992

SOLENOID, WINCH Was 7022435 - A

3

7202986

DECAL, WINCH

4

6990128

GUIDE, USER WINCH

5

7023989

WINCH W/Ref. 6 & 7

6

7024034

CABLE, WINCH W/ring terminal for attaching to spool

6

7024003

CABLE, WINCH W/straight end to be threaded through hole in spool and secured with a set screw.

7

7023991

HOOK, WINCH

8

7023990

ROLLER, WINCH

9

7024001

BRACKET, MOUNTING WINCH lower

10

7024002

BRACKET, MOUNTING WINCH upper

11

7023996

CABLE, BLUE

12

7023995

CABLE, YELLOW

13

7023997

CABLE, POWER BLK

14

7023998

CABLE, POWER RED

15

7023993

SWITCH, MOMENTARY REMOTE Also Order Ref. 16 if winch cable has ring terminal design

16

7023994

SOCKET, WINCH Also Order Ref. 15 if winch cable has ring terminal design

17

6990361

INSTRUCTIONS Was 6989758 - D

Выбрано товаров: 19
