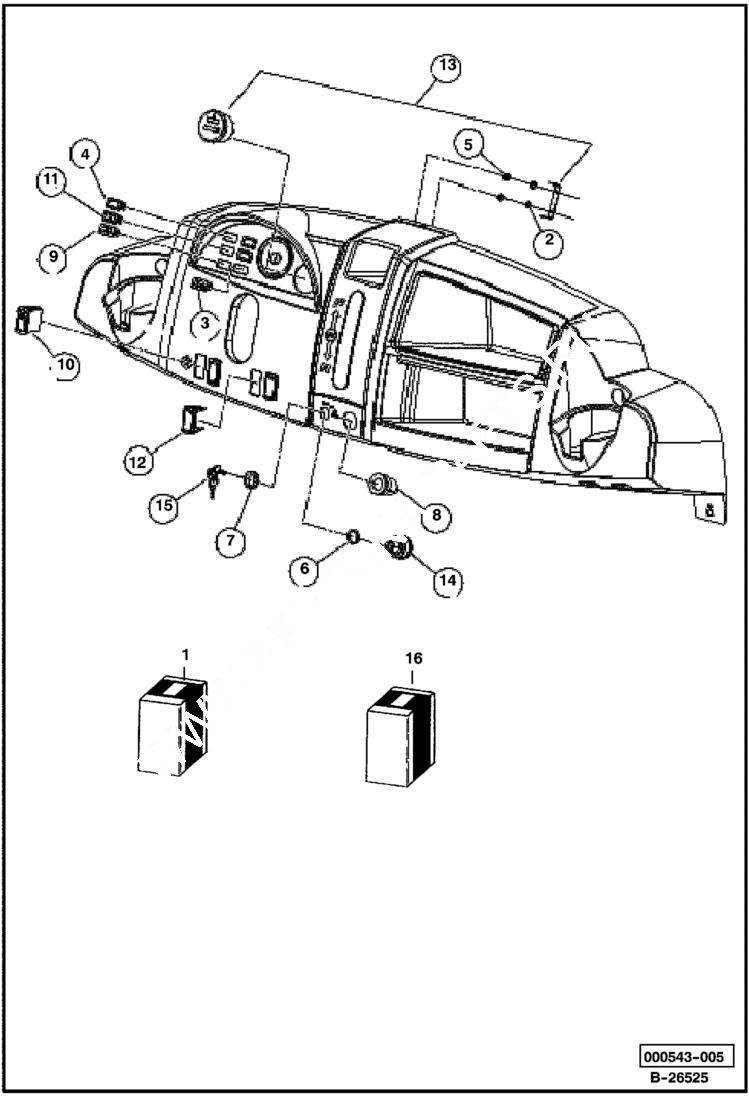

Запчасти Bobcat 2300 ELECTRICAL COMPONENTS ELECTRICAL SYSTEM

1

COMPONENTS KIT NLA - W/Ref. 2-15 - Order components

2

WASHER NLA - Was 1012986CC - A

3

1016630CC

LIGHT oil warning/indicator

4

101802601CC

HOLE PLUG

5

101991101CC

NUT

6

102051601CC

SPACER key switch

7

102051701CC

NUT key switch

8

102198001CC

ACCESSORY RECEPTACLE

9

102375401CC

LIGHT INDICATOR ENG TEMP

10

102869401CC

LIGHT SWITCH

11

102977501CC

LIGHT INDICATOR seatbelt light

12

103180101CC

ROCKER SWITCH HOLE COVER

13

103193401CC

FUEL GAUGE AND HOUR METER seatbelt timer- W/Ref. 2 & 5 - W/6 spade connectors

13

103234001CC

GAUGE, FUEL hour meter and seat belt timer - W/7 spade connectors

14

103208801CC

KEYSWITCH

15

103234401CC

KEYSET set of two

16

SVP268002CC

KIT speedometer kit

16

SVP469501CC

KIT, MAGNETS does not include adhesive - Was SVPR08295CC - A
