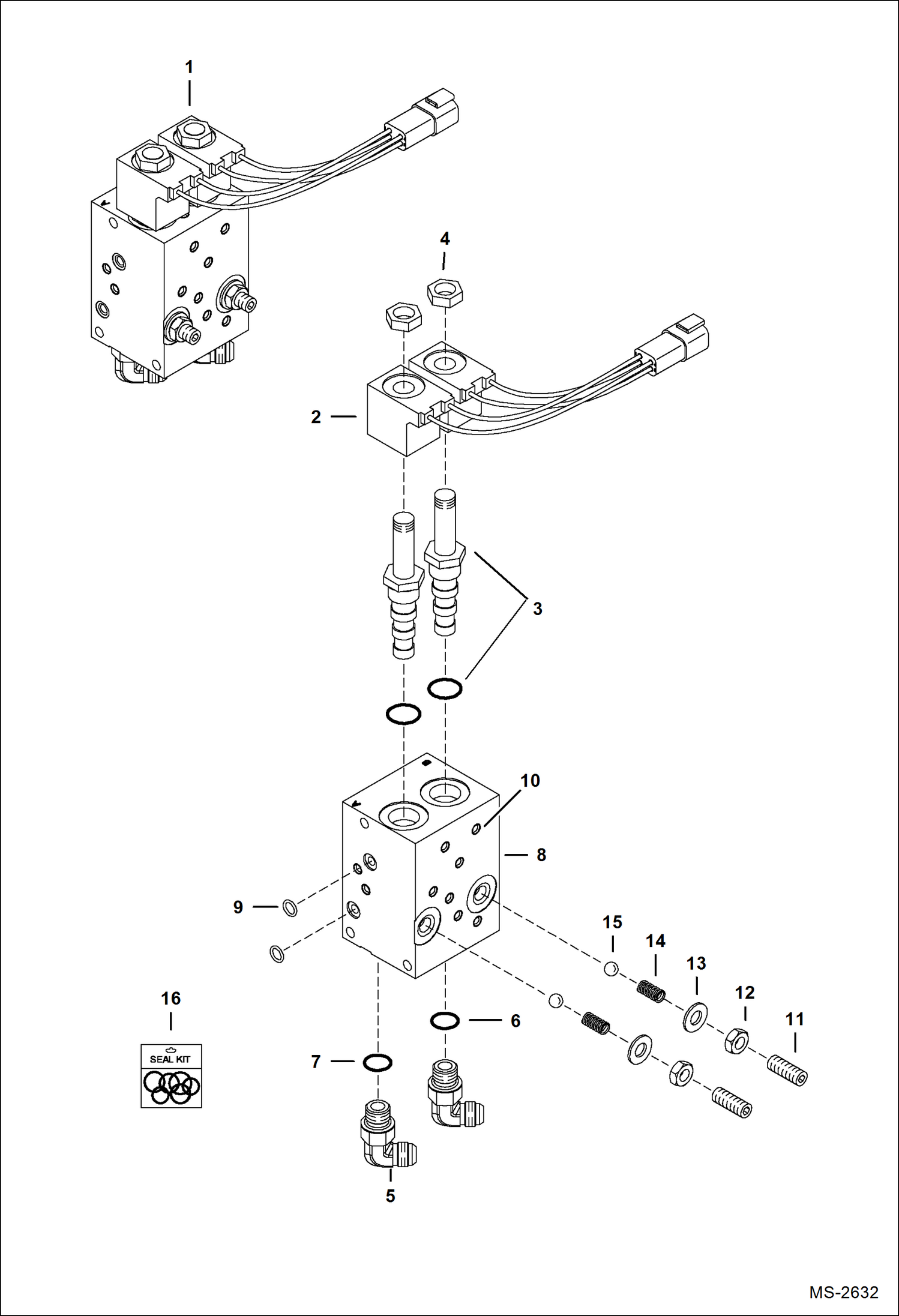

Запчасти Bobcat 2300 AUXILLIARY HYDRAULIC VALVE UNIT HYDRAULICS

1

102928701CC

VALVE ASSM.

2

7003630

COIL ASSEMBLY Was 102928901CC - B,D

3

6698483

SOLENOID, LOCK SPOOL W/seals

4

1308CC

NUT, 1/2-20 HEX

5

6698489

ELBOW

6

6698490

O-RING red

7

6698491

O-RING white

8

HOUSING NLA - Order Ref. 1

9

7021938

ORING Was 6698486 - A

10

6698488

PLUG, STEEL

11

6698497

SCREW, SET

12

6698498

NUT, JAM

13

6698499

SEAL, OIL

14

6698485

SPRING, RELIEF 2500 PSI & up

15

6698484

BALL, 1/4 DIA

16

SEAL KIT NLA - Order individual parts
