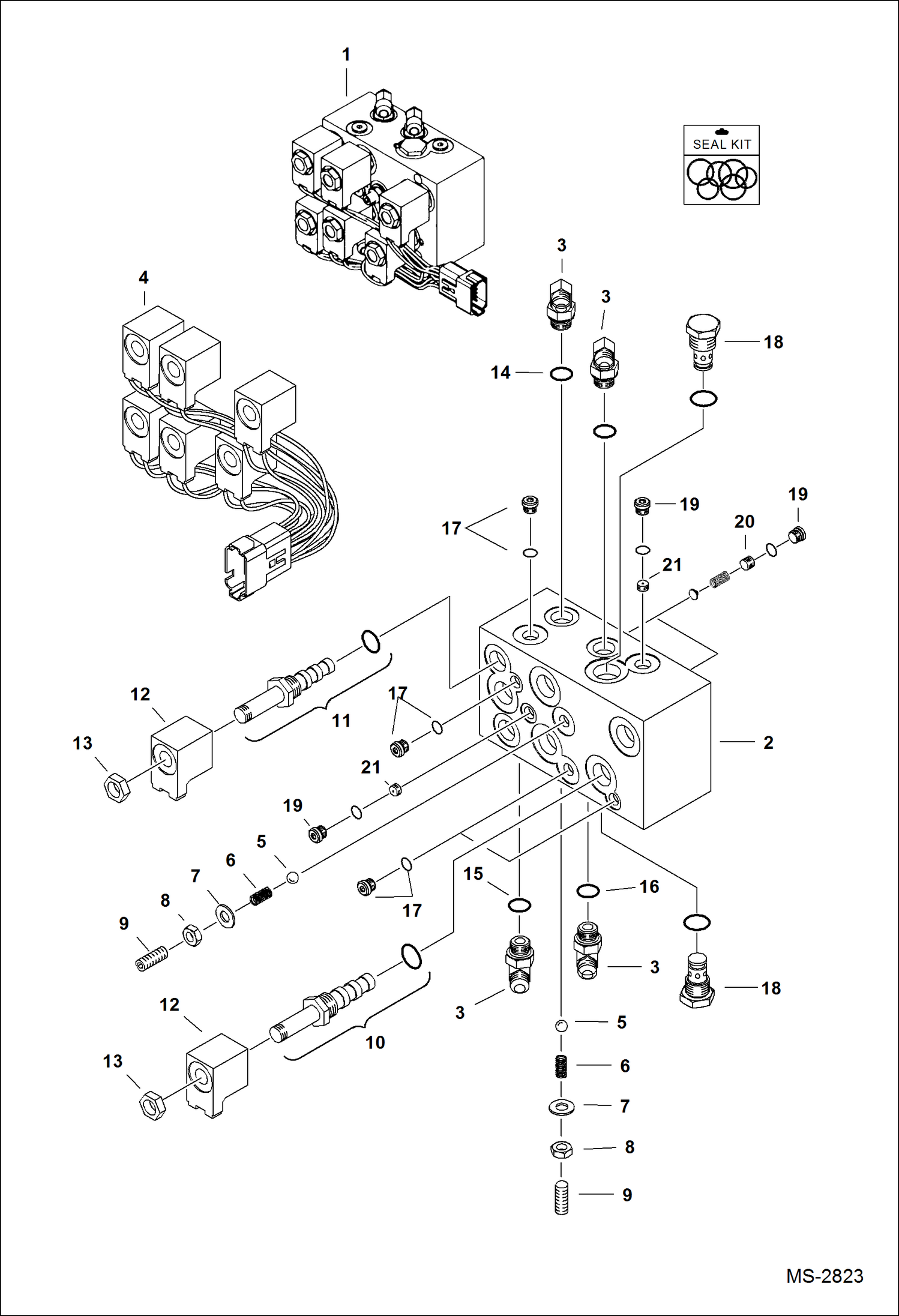

Запчасти Bobcat 2300 VALVE ASSEMBLY HYDRAULICS

1

7008063

VALVE ASSEMBLY Was 102928601CC - W/Ref. 2-21

2

HOUSING NSS

2

7010273

FILTER, OIL HYD Was 7010272 - B,D

3

6698489

ELBOW

4

7008055

COIL Was 102928601CC - W/Ref. 12 & 13

5

6698484

BALL, 1/4 DIA

6

7008062

SPRING

7

6698499

SEAL, OIL

8

6698498

NUT, JAM

9

6698497

SCREW, SET

10

6698492

SOLENOID, LOCK SPOOL W/O coil

11

6698493

SOLENOID, LOCK SPOOL W/O coil

12

102928901CC

COIL W/O cartridge

13

1308CC

NUT, 1/2-20 HEX

14

7021938

ORING blue o-ring, port marked LR - TR port has no o-ring - Was 6698486 - A

15

6698495

O-RING green o-ring - LD port

16

6698494

O-RING pink o-ring - TD port

17

6698488

PLUG, STEEL

18

7019016

VALVE, CHECK

19

7016898

PLUG

20

7019014

VALVE, CHECK

21

7019017

PLUG
