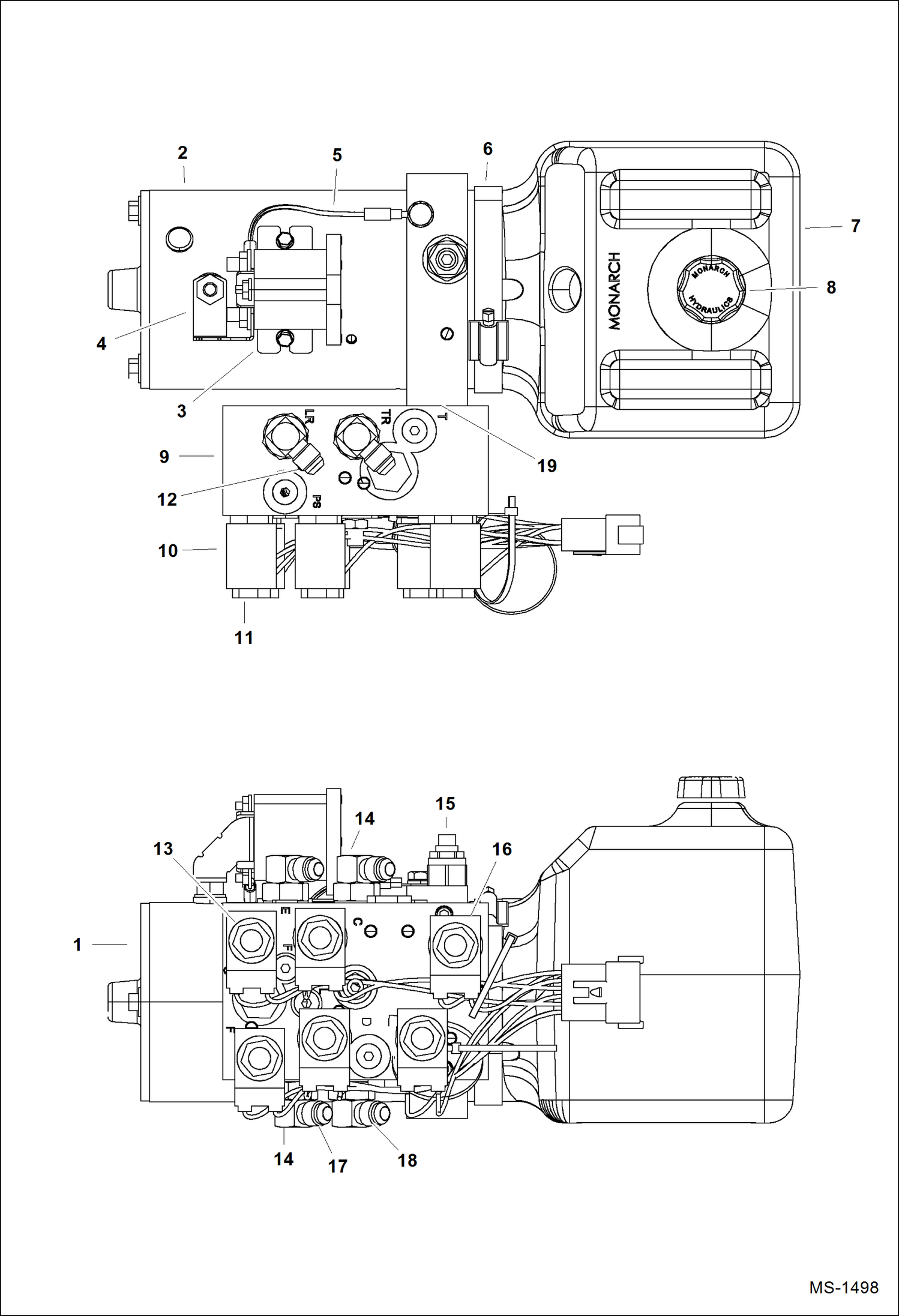

Запчасти Bobcat 2300 POWER UNIT (Intellitach Hydraulics) HYDRAULICS

1

102784001CC

POWER UNIT

2

102928201CC

MOTOR

3

102928301CC

SWITCH

4

102928401CC

STRAP

5

102928501CC

CONTROL WIRE

6

102928001CC

HOSE CLAMP

7

102927901CC

RESERVOIR

8

102928101CC

BREATHER

9

7008063

VALVE ASSEMBLY See Illustration VALVE ASSEMBLY/ MS2823 W/Ref. 10 - 18 - Was 102928601CC

10

102928901CC

COIL W/O cartridge

11

1308CC

NUT, 1/2-20 HEX

12

6698496

O-RING blue

13

6698492

SOLENOID, LOCK SPOOL cartridge W/O coil

14

6698489

ELBOW

15

6698443

VALVE, RELIEF

16

6698493

SOLENOID, LOCK SPOOL cartridge W/O coil

17

6698495

O-RING green

18

6698494

O-RING pink

19

7016863

O-RING
