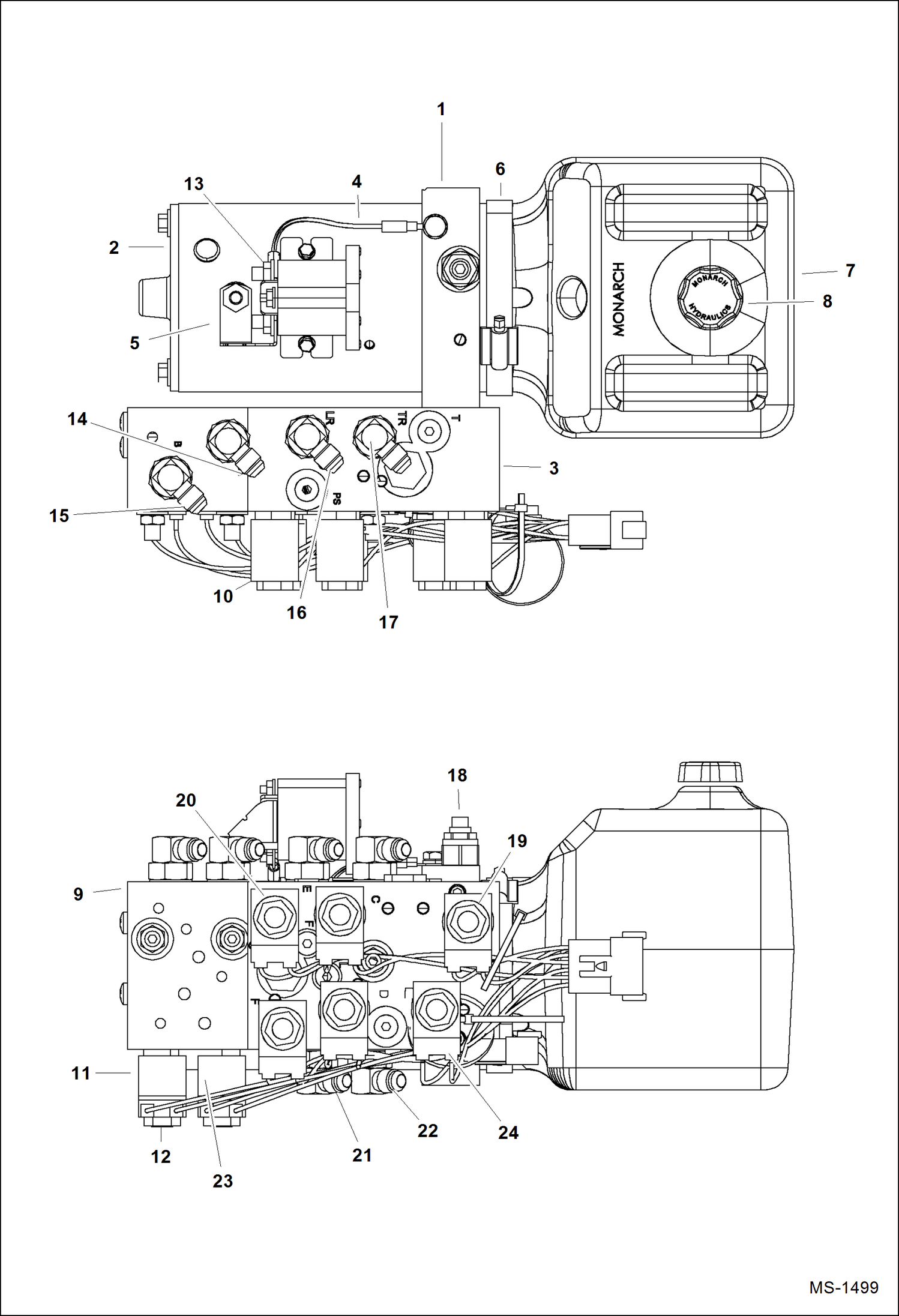

Запчасти Bobcat 2300 POWER UNIT (Auxiliary Hydraulics) HYDRAULICS

1

6698500

PUMP, HYD

2

102928201CC

MOTOR

3

7008063

VALVE ASSEMBLY See Illustration VALVE ASSEMBLY/ MS2823

4

102928501CC

CONTROL WIRE

5

102928401CC

STRAP

6

102928001CC

HOSE CLAMP

7

102927901CC

RESERVOIR

8

102928101CC

BREATHER

9

102928701CC

VALVE ASSM. See Illustration AUXILLIARY HYDRAULIC VALVE UNIT/ MS2632

10

1308CC

NUT, 1/2-20 HEX

11

7003630

COIL ASSEMBLY 2 coils W/lead - W/O cartridge - B,D

12

1308CC

NUT, 1/2-20 HEX

13

102928301CC

SWITCH

14

6698491

O-RING white

15

6698490

O-RING red

16

6698496

O-RING blue

17

6698489

ELBOW

18

6698443

VALVE, RELIEF

19

6698493

SOLENOID, LOCK SPOOL cartridge W/O coil

20

6698492

SOLENOID, LOCK SPOOL cartridge W/O coil

21

6698495

O-RING green

22

6698494

O-RING pink

23

6698483

SOLENOID, LOCK SPOOL cartridge W/O coil

24

102928901CC

COIL
