Запчасти Bobcat 2300 FUEL SYSTEM Diesel MAIN FRAME

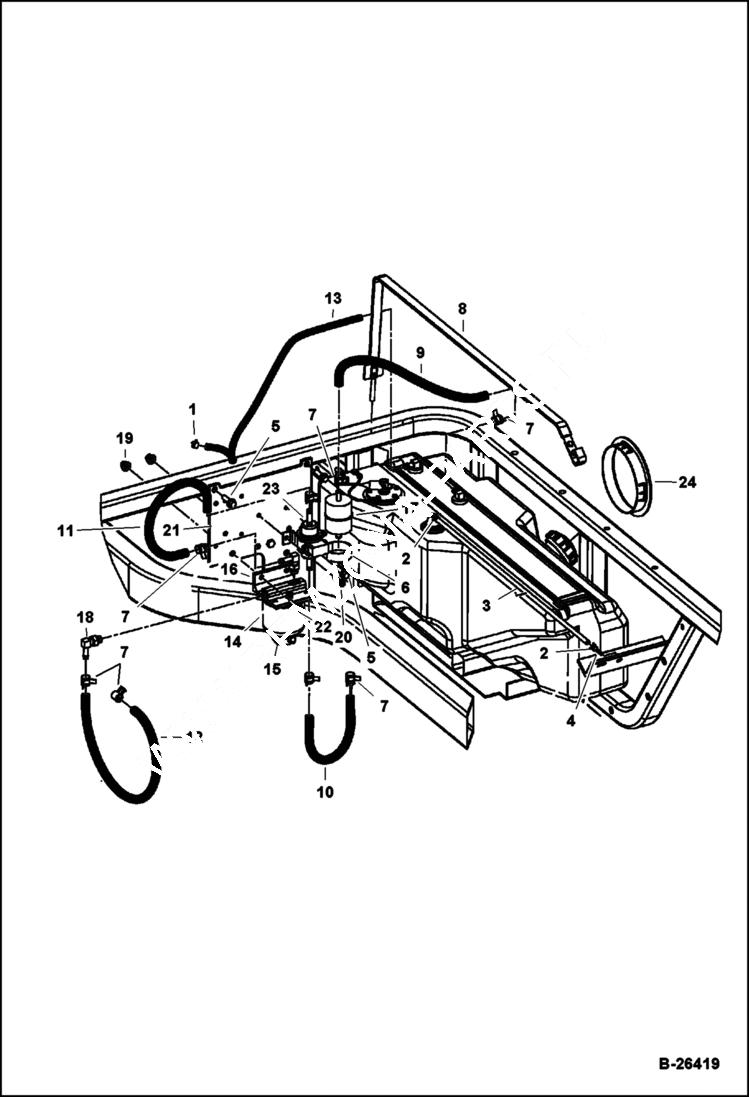

Схема запчастей Bobcat 2300 - FUEL SYSTEM Diesel MAIN FRAME

Артикул

Название

Примечание

Количество

1

101313402CC

CLAMP

2

1013746CC

CLAMP

3

101587703CC

TUBE CARBURETOR AIR VENT 22'' long

4

101824401CC

BARB VENT

5

102289001CC

SCREW

6

102410602CC

CLAMP

7

102411203CC

CLAMP

8

102426301CC

STRAP TANK FUEL

9

102430001CC

HOSE FUEL tank to prefilter

10

102430101CC

HOSE FUEL fuel prefilter to pump

11

102430201CC

HOSE FUEL fuel pump to filter

12

102430301CC

HOSE FUEL fuel filter to engine

13

102430401CC

HOSE FUEL return

14

102434601CC

FILTER ASSY FUEL water separator - W/Ref. 15 & 16

15

6667352

FILTER, FUEL W/SEPARATOR 12 element - Was 102703401CC - A

16

ADAPTER NLA - Order 102434601CC - Was 102719901CC - A

17

102434701CC

FILTER FUEL in-line

18

102434801CC

ADAPTER 5/16 tube

19

102618601CC

NUT flg, M8x1.25

20

102670801CC

SCREW

21

102710301CC

PLATE fuel/oil system

22

96705587CC

BOLT m8x1.25x30

23

102410801CC

PUMP FUEL ELECTRIC electric fuel pump

24

102466201CC

BEZEL Was 102411202CC - D

Выбрано товаров: 24
