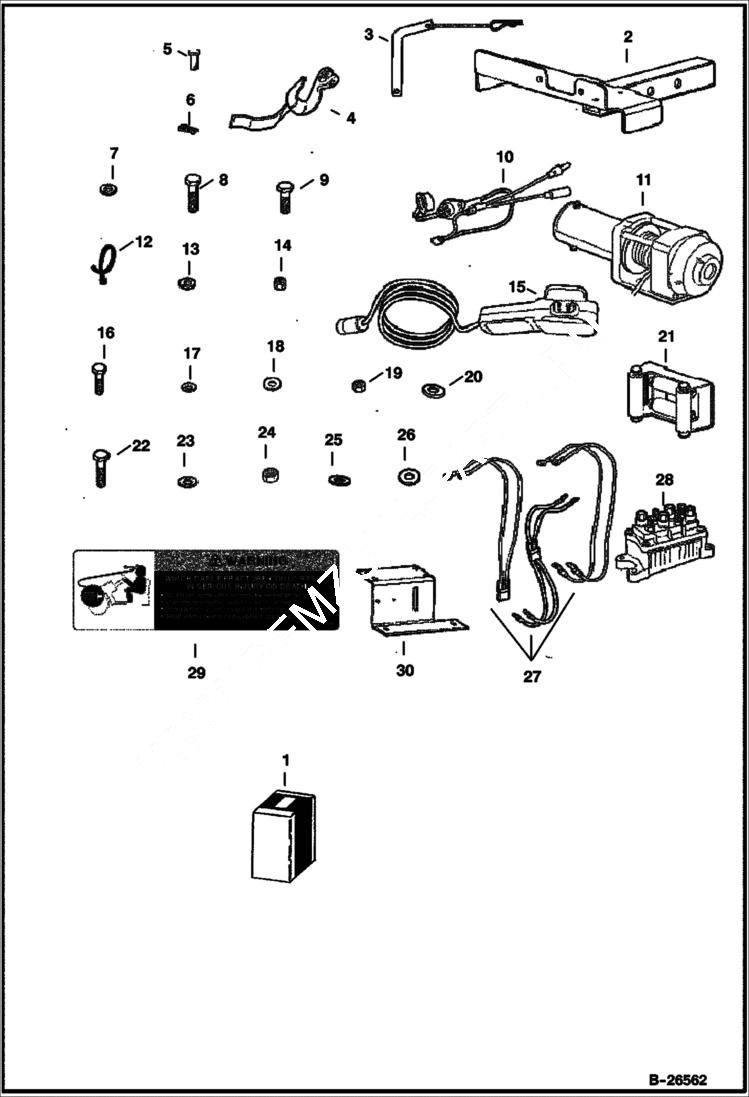

Запчасти Bobcat 2300 WINCH KIT ACCESSORIES & OPTIONS

1

103253101CC

KIT, WINCH W/Ref. 2-30 - must have 103273901CC front receiver installed to mount winch

2

103212301CC

BRACKET

3

102718301CC

PIN

4

WINCH HOOK-W/SAFETY STRAP NLA

5

2F5062

PIN

6

CLIP NLA

7

357CC

Washer

8

1010934CC

SCREW Was 17C516 - B

9

17C612

BOLT 5

10

102673601CC

SOCKET REMOTE CONTROL WINCH

11

103394801CC

WINCH, ELEC Was 103216301CC - A

12

6624289

STRAP, TIE

13

5/16 LOCK WASHER NLA

14

63D6

NUT

15

102673701CC

SWITCH W/10 FTCORD

16

1CM1020

BOLT

17

1016CC

WASHER

18

183CC

WASHER

19

1017CC

NUT Was 4DM10 - B

20

25E13

WASHER 5

21

102673501CC

ROLLER FAIRLEAD WINCH

22

304CC

SCREW Was 17C416 - B

23

451CC

WASHER - LOCK

24

95D4

NUT

25

28E5

WASHER

26

332CC

WASHER Was 27E4 - B

27

WIRING KIT NLA

28

102673401CC

CONTACTOR WINCH 12 VDC

29

102231601CC

DECAL warning

30

103222401CC

MOUNT
