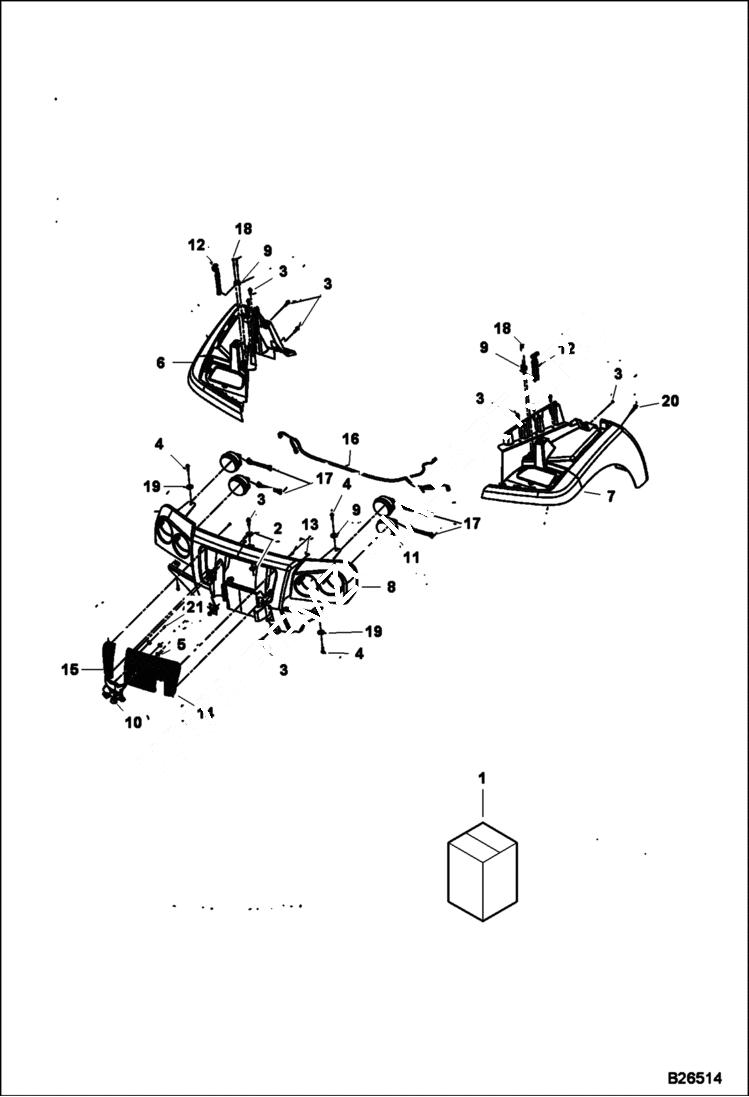

Запчасти Bobcat 2300 FASCIA AND FENDERS MAIN FRAME

1

FASCIA AND FENDER KIT NLA - W/Ref. 2-18 - Order components

2

808CC

WASHER Was 1011578CC - A

3

102289001CC

SCREW

4

102297230CC

M6 ,TORX

5

332CC

WASHER Was 102563001CC - A

6

102866901CC

FRNT PASS, AWD fender

7

102867001CC

FRONT DRVR. AWD fender

8

102867602CC

FASCIA dual round headlights

9

102882401CC

BRACKET

10

102883501CC

BOBCAT

11

102885001CC

HEADLIGHT 4'' round - W/ bulb

11

6691620

BULB

12

102895101CC

LATCH

13

102895401CC

D50X16, TORX

14

102978801CC

GRILL driver side

15

102978901CC

GRILL passenger side

16

103213201CC

HEADLIGHT HARNESS harness

17

103213501CC

HEADLIGHT harness

18

103218107CC

#8X2.00, HEX HEAD screw

19

1011578CC

WASHER, 5/16 TYPE B FLAT

20

102292356CC

SELF DRILLING

21

101804301CC

SCREW
