BRUSH GUARD KIT

Запчасти Bobcat 2300 BRUSH GUARD KIT ACCESSORIES & OPTIONS

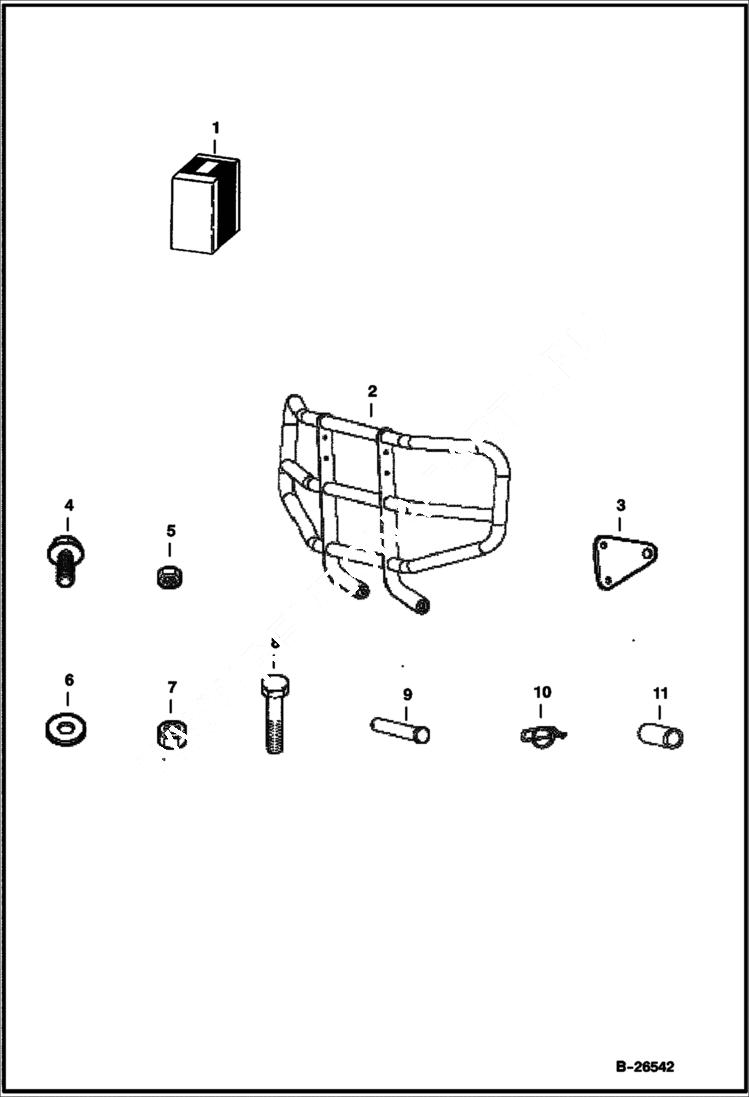

Схема запчастей Bobcat 2300 - BRUSH GUARD KIT ACCESSORIES & OPTIONS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

102924001CC

BRUSHGUARD KIT - W/Ref. 2-11

2

BRUSH GUARD NLA - Order 102924001CC brushguard kit - Was 102924301CC - A

3

BRACKET NLA - Was 102924101CC - A

4

31C616

SCREW

5

81D6

NUT

6

SHIM NLA - Was 103216601CC

7

61D12

NUT

8

17C1280

BOLT

9

CLEVIS PIN NLA - Was 102924201CC

10

102786101CC

RING

11

SPACER NLA - Was 103216501CC
