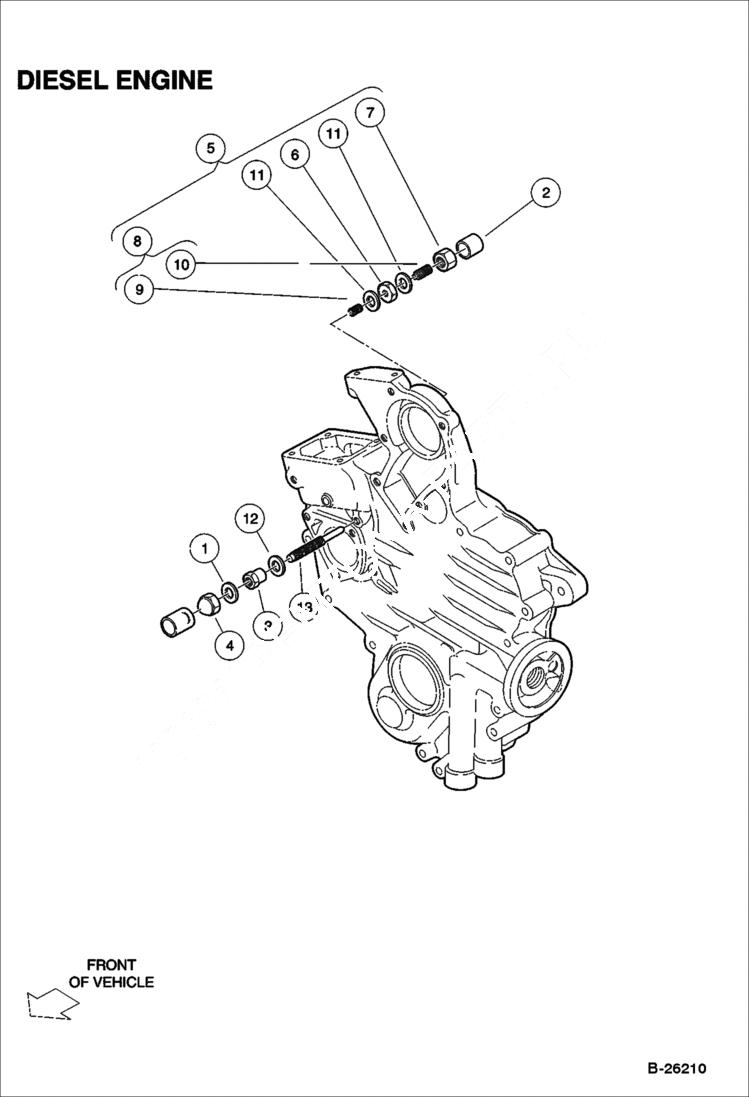

Запчасти Bobcat 2300 IDLE APPARATUS Diesel POWER UNIT

1

3974972

GASKET Was 102635301CC - A

2

6670427

CAP, SECURITY Was 102635701CC - A

3

6680272

NUT Was 102637001CC - A

4

6670462

NUT special - Was 102637101CC - A

5

6670424

IDLE ASSY W/Ref. 6-11 - Was 102728601CC - A

6

6599085

NUT 8mm - Was 102635501CC - A

7

6670426

NUT 8mm - Was 102635801CC - A

8

6670425

SCREW W/Ref. 9 & 10 - Was 102635901CC - A

9

6680835

SPRING Was 102728701CC - A

10

STUD NLA - Order Ref. 8

11

3974095

MET-GASK rear - Was 102728801CC - A

12

102728901CC

GASKET front

13

102636901CC

BOLT ADJ idle adjusting - Was 102799501CC - A
