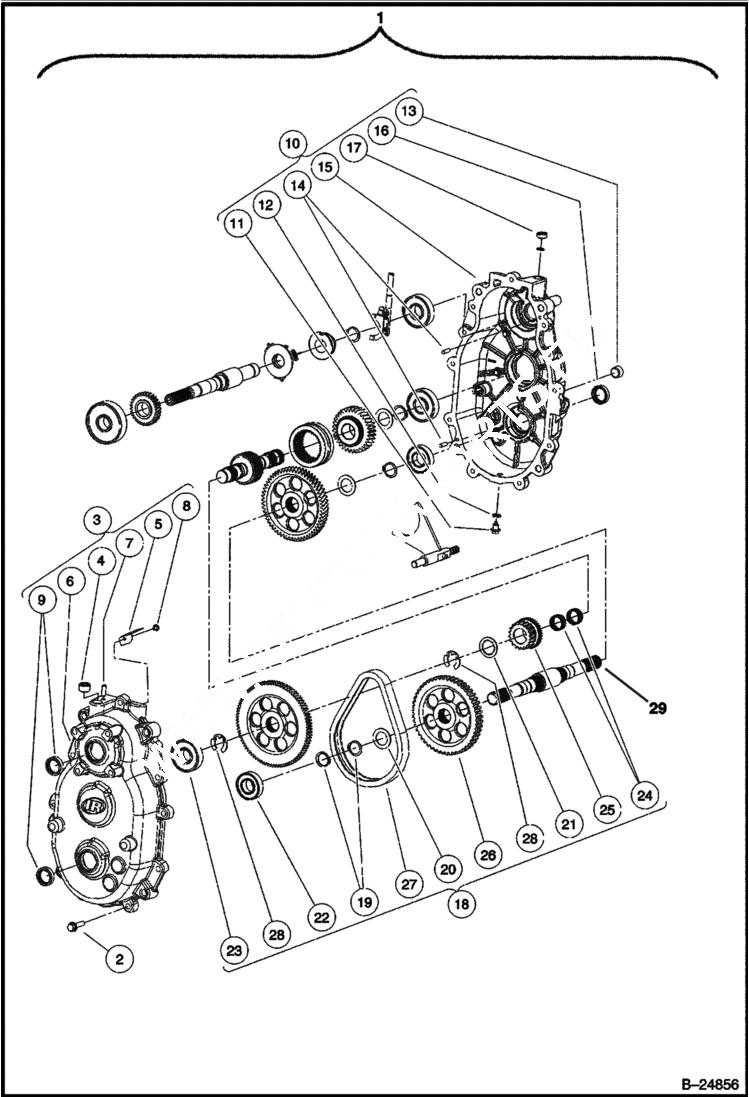

Запчасти Bobcat 2200 TRANSMISSION DRIVE TRAIN

1

102369401CC

TRANSMISSION See Illustration TRANSMISSION/ B24754 See Illustration TRANSMISSION/ B24857 Assy - same transmission for gas & diesel - W/Ref. 2-18 also includes parts on B24857 & B24754

2

102693301CC

SCREW

3

102764201CC

REAR GEARCASE ASSY W/Ref. 4-9

4

102694201CC

PLUG SQUARE

5

102696301CC

OIL DEFLECTOR

6

GEARCASE NLA - Order Ref. 3

7

102698301CC

VENT TRANS

8

102698901CC

SCREW

9

102699401CC

SEAL

10

102764301CC

FRONT GEARCASE ASSY W/Ref. 11-17

11

102693401CC

PLUG

12

102693501CC

WASHER

13

102694201CC

PLUG SQUARE

14

102696101CC

PIN DOWEL

15

GEARCASE, FRONT NLA - Order Ref. 10

16

102699401CC

SEAL

17

102721501CC

SEAL LIP

18

102765201CC

KIT REVERSE GEAR REPAIR W/Ref. 19-28

19

102696201CC

RING RETAINING EXT

20

102696501CC

WASHER

21

102696701CC

WASHER

22

102696801CC

BEARING

23

102696901CC

BEARING

24

102697101CC

BEARING

24

102697101CC

BEARING

25

SPROCKET NLA - Order Ref. 18

26

SPROCKET NLA - Order Ref. 18

27

CHAIN NLA - Order Ref. 18

28

102699701CC

RING RETAINING

29

102698801CC

SHAFT OUTPUT
