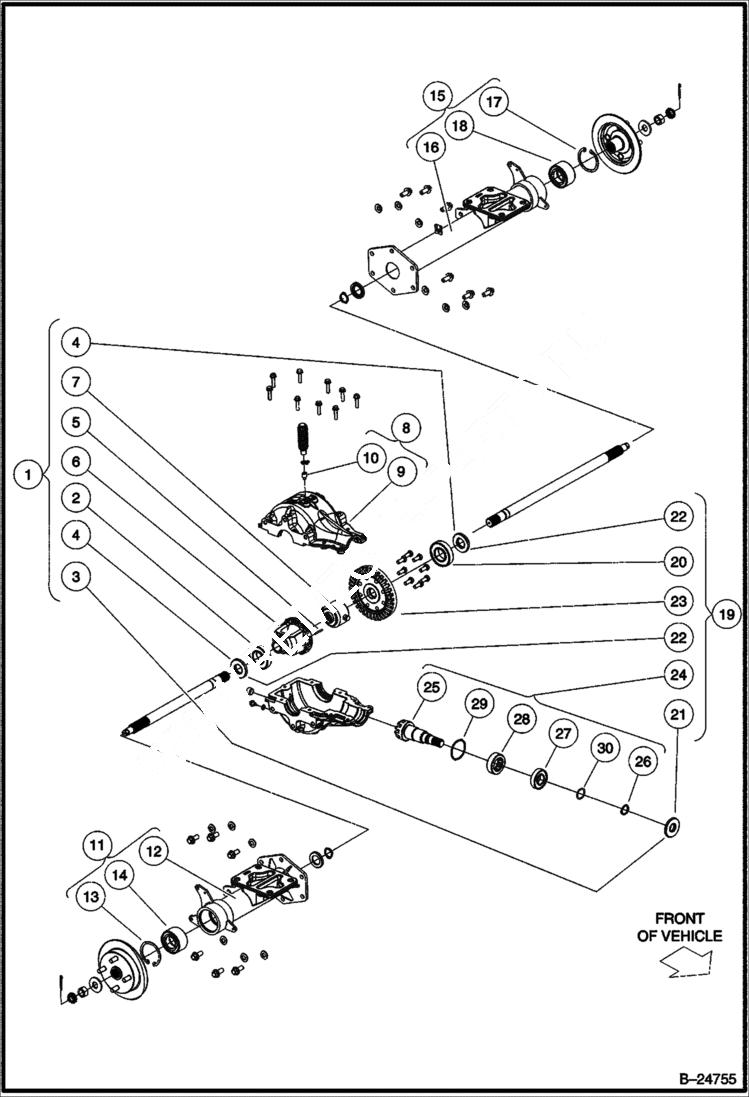

Запчасти Bobcat 2200 REAR DIFFERENTIAL DRIVE TRAIN

1

103871801CC

DIFFERENTIAL W/Ref. 2-7 - Was 102961501CC - A

2

102464201CC

BEARING BALL

3

102464401CC

SEAL DUAL LIP

4

102464501CC

SEAL DUAL LIP

5

102961401CC

PIN Was 102694101CC - A

6

102961301CC

HOUSING differential

7

102961601CC

LOCK ASM

8

102765301CC

GEARCASE W/Ref. 9-10

9

GEARCASE NLA - upper - Order Ref. 8

10

102694001CC

VENT TOP

11

102765401CC

AXLE TUBE RH W/Ref. 12-14

12

TUBE NLA - R.H. - Order Ref. 11

13

102463801CC

RING RETAINING INT

14

102464301CC

BEARING

15

102765501CC

AXLE TUBE LH W/Ref. 16-18

16

TUBE NLA - L.H. - Order Ref 15

17

102463801CC

RING RETAINING INT

18

102464301CC

BEARING

19

102765801CC

REPAIR KIT W/Ref. 20-30

20

102464201CC

BEARING BALL

21

102464401CC

SEAL DUAL LIP

22

102464501CC

SEAL DUAL LIP

23

GEAR NLA - ring gear - 33 tooth - Order Ref. 19

24

ASM NLA - includes pinion W/bearing asm. - Ref. 25 -30 - Order Ref. 19

25

PINION NLA - 10 tooth gear - Order Ref .19

26

102463901CC

RING RETAINING EXT

27

102464001CC

BEARING BALL

28

102464101CC

BEARING NEEDLE

29

102693601CC

WASHER

30

102694502CC

SHIM 1.50 X 1.189 X .008
