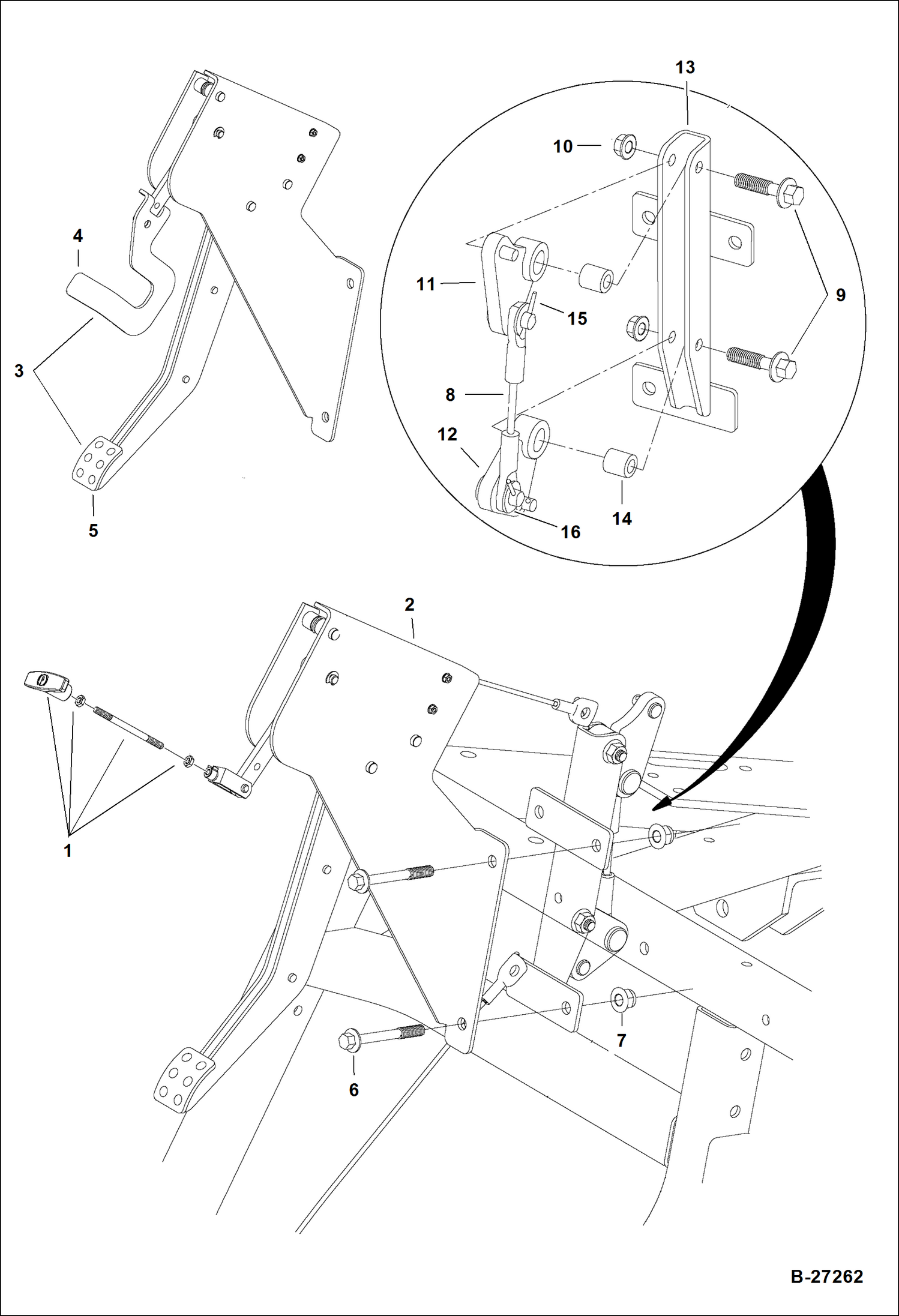

Запчасти Bobcat 2200 PARK BRAKE PEDAL (With Bellcrank System) CHASSIS

1

102758701CC

KIT

2

PEDAL, PARK BRAKE NLA - Order 102892401CC pedal asm - Was 102438101CC - A

3

102892401CC

PEDAL ASM. W/Ref. 4 & 5

4

102896601CC

HANDLE

5

PEDAL, PARK BRAKE NLA - Order 102892401CC pedal asm

6

102618301CC

BOLT

7

102618601CC

NUT

8

102716001CC

CABLE

9

102741501CC

FLG, M8X1.25X35

10

102741601CC

FLG, M8X1.25

11

102751301CC

BELLCRANK ASM

12

102751401CC

BELLCRANK ASM

13

103305001CC

BRACKET, PIVOT

14

103305101CC

SPACER

15

1035CC

COTTER PIN

16

102323501CC

3/8 WASHER
