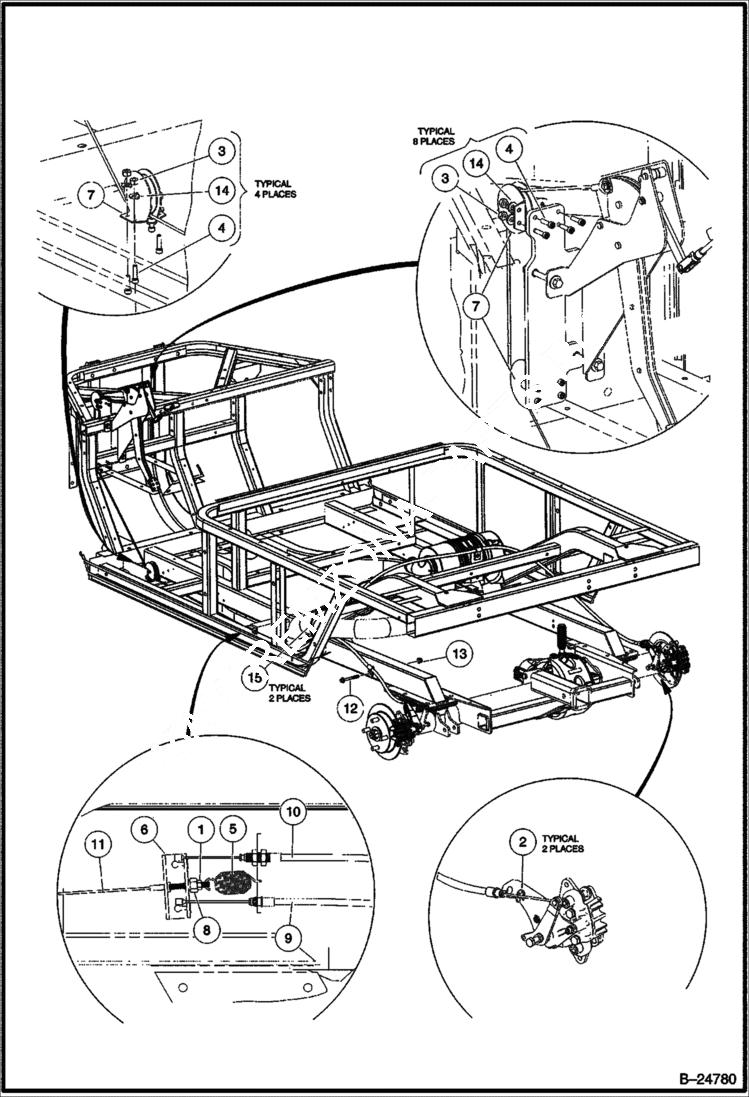

Запчасти Bobcat 2200 PARK BRAKE ASSEMBLY CHASSIS

1

1010521CC

NUT

2

1011779CC

E-CLIP, 1/2

3

1012438CC

NUT

4

101260202CC

SCREW

5

1013531CC

SPRING

6

103535001CC

BRACKET, ASSY Was 101990802CC - A

7

PULLEY NLA - Order 102242701CC pulley kit - Was 102028302CC - A

8

102052801CC

NUT

9

102442701CC

CABLE BRAKE LT

10

102442801CC

CABLE BRAKE RT

11

102770301CC

BRAKE CABLE KIT w/o pulleys - 46'' long

11

CABLE BRAKE NLA - front - W/pulleys - Order 102770001CC kit, cable brake - Was 102492401CC - A

12

102618301CC

BOLT

13

102618601CC

NUT

14

183CC

WASHER

15

8639CC

TIE STRAP
