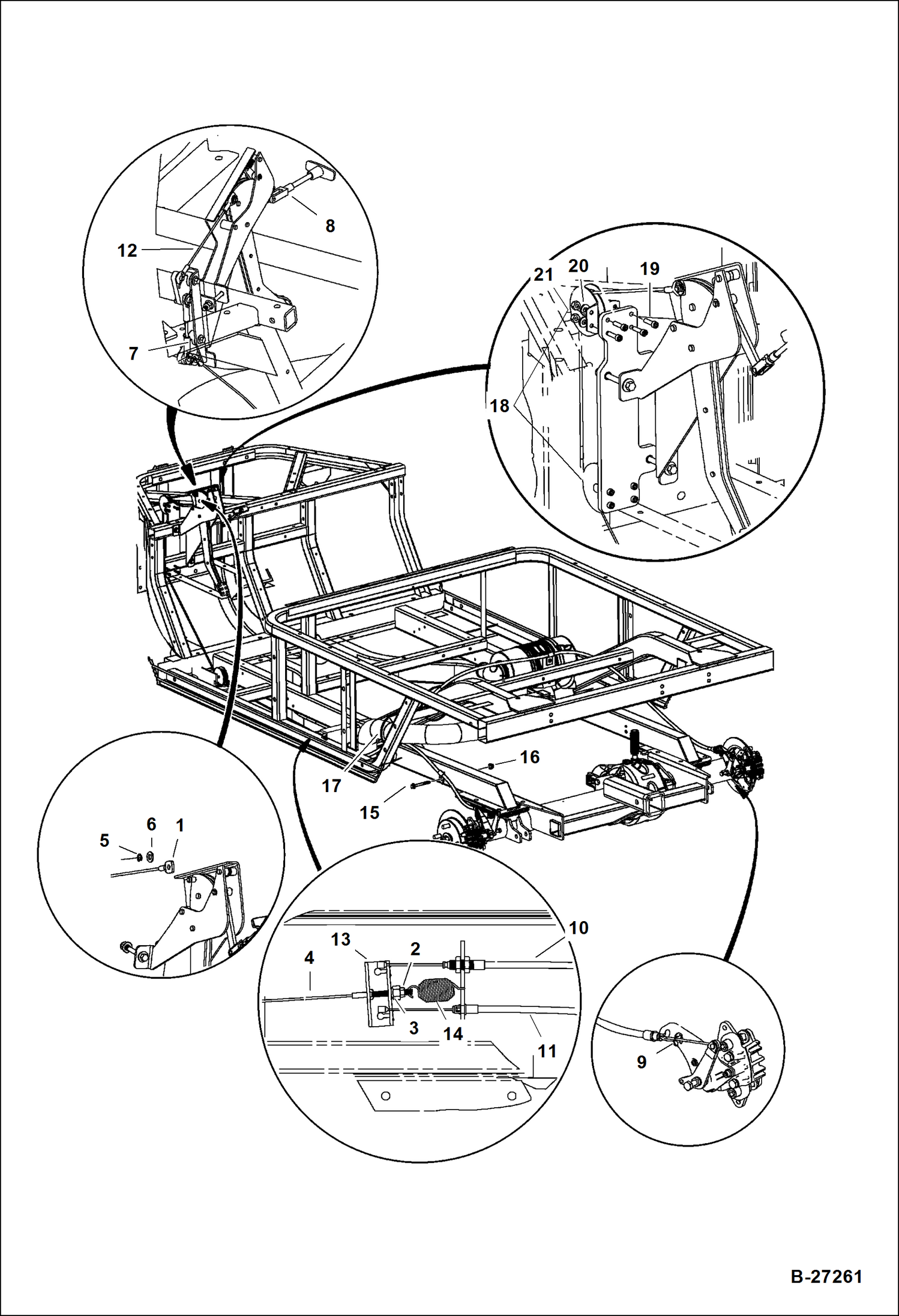

Запчасти Bobcat 2200 PARK BRAKE SYSTEM CHASSIS

1

102770001CC

KIT, CABLE BRAKE PARK W/pulley system - 63'' long - W/Ref. 2-6

1

102770301CC

BRAKE CABLE KIT W/bellcrank system - 46'' long - W/Ref. 2-4 & 7

2

1010521CC

NUT

3

102052801CC

NUT

4

CABLE BRAKE NLA - W/pulley system - Order Ref. 1 (102770001CC kit, cable brake) - Was 102492401CC - A

4

CABLE NLA - W/bellcrank system - Order 102770301CC kit

5

102692801CC

RING, RETAINER W/pulley system

6

1241CC

WASHER W/pulley system

7

1035CC

COTTER PIN W/bellcrank system

8

102758701CC

KIT See Illustration PARK BRAKE PEDAL ASSEMBLY/ B24783 park brake release handle

9

1011779CC

E-CLIP, 1/2

10

102442801CC

CABLE BRAKE RT W/pulley system

10

102763401CC

RIGHT PARK BRAKE W/bellcrank system

11

102442701CC

CABLE BRAKE LT W/pulley system

11

102763301CC

LEFT PARK BRAKE W/bellcrank system

12

102712601CC

FRONT CRANK BELL W/bellcrank system

13

103535001CC

BRACKET, ASSY Was 101990802CC - A

14

1013531CC

SPRING

15

102618301CC

BOLT

16

102618601CC

NUT

17

8639CC

TIE STRAP

18

PULLEY NLA - Order 102242701CC pulley kit - Was 102028302CC - A

19

101260202CC

SCREW W/pulley system

20

183CC

WASHER W/pulley system

21

1012438CC

NUT W/pulley system
