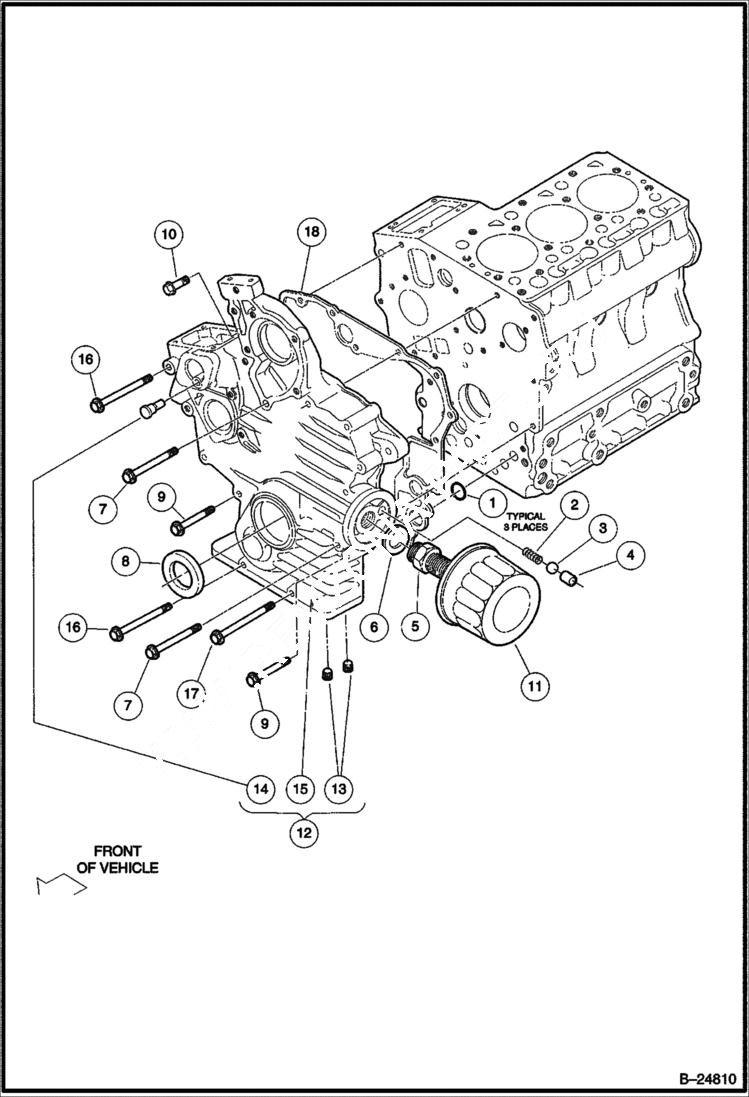

Запчасти Bobcat 2200 GEAR CASE Diesel POWER UNIT

1

102601801CC

O-RING

2

102601901CC

SPRING

3

102602001CC

BALL

4

102602101CC

SEAT VALVE

5

102602301CC

JOINT PIPE

6

102602401CC

WASHER

7

102602601CC

BOLT

8

102602701CC

OIL SEAL

9

102602801CC

BOLT

10

102654301CC

BOLT

11

6671057

FILTER, OIL ENG 12 Was 102703301CC - A

12

102727301CC

CRANK CASE

13

102601001CC

PLUG

14

102601601CC

PIN

15

CASE N/A

16

102727401CC

BOLT

17

102727501CC

BOLT

18

102729301CC

GASKET
