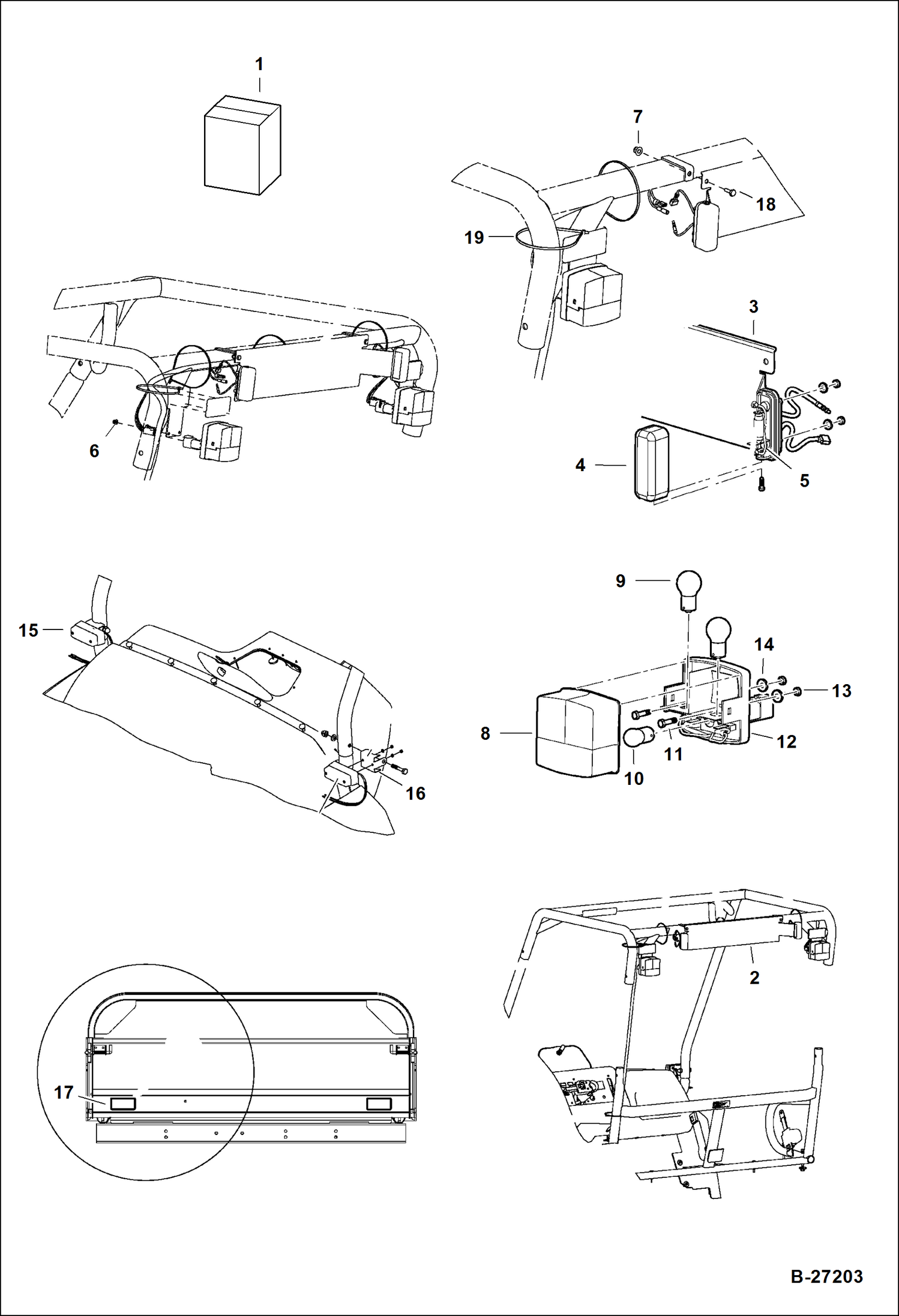

Запчасти Bobcat 2200 LIGHTING ELECTRICAL SYSTEM

1

102833901CC

KIT, LIGHTS ROAD W/Ref. 2-19 includes instructions

2

102710701CC

LAMP KIT W/Ref. 3-5

3

102678501CC

PLATE

4

102708701CC

LAMP

5

102710401CC

BULB

6

102720301CC

LOCKNUT

7

102621501CC

NUT

8

102709101CC

REAR LAMP drivers side - W/Ref. 9-14

8

102709102CC

REAR LAMP Order components - passenger side - W/Ref. 9-14

9

BULB NLA - Was 102708001CC - A

10

102708101CC

BULB

11

BOLT NLA - Was 96705736CC - A

12

102487201CC

LEFT REAR SIGNAL LAMP drivers side

12

102487301CC

RIGHT REAR SIGNAL LAMP passenger side

13

102720201CC

NUT

14

183CC

WASHER

15

102709001CC

FLASHER ASM

15

102707901CC

FLASHER LAMP

15

BULB NLA - Was 102708001CC - A

16

BRACKET, LIGHT FLASHER NLA - Order Ref. 1 - Was 102721801CC - A

17

102679501CC

REFLECTOR

18

102490301CC

BOLT

19

8990CC

TIE STRAP
