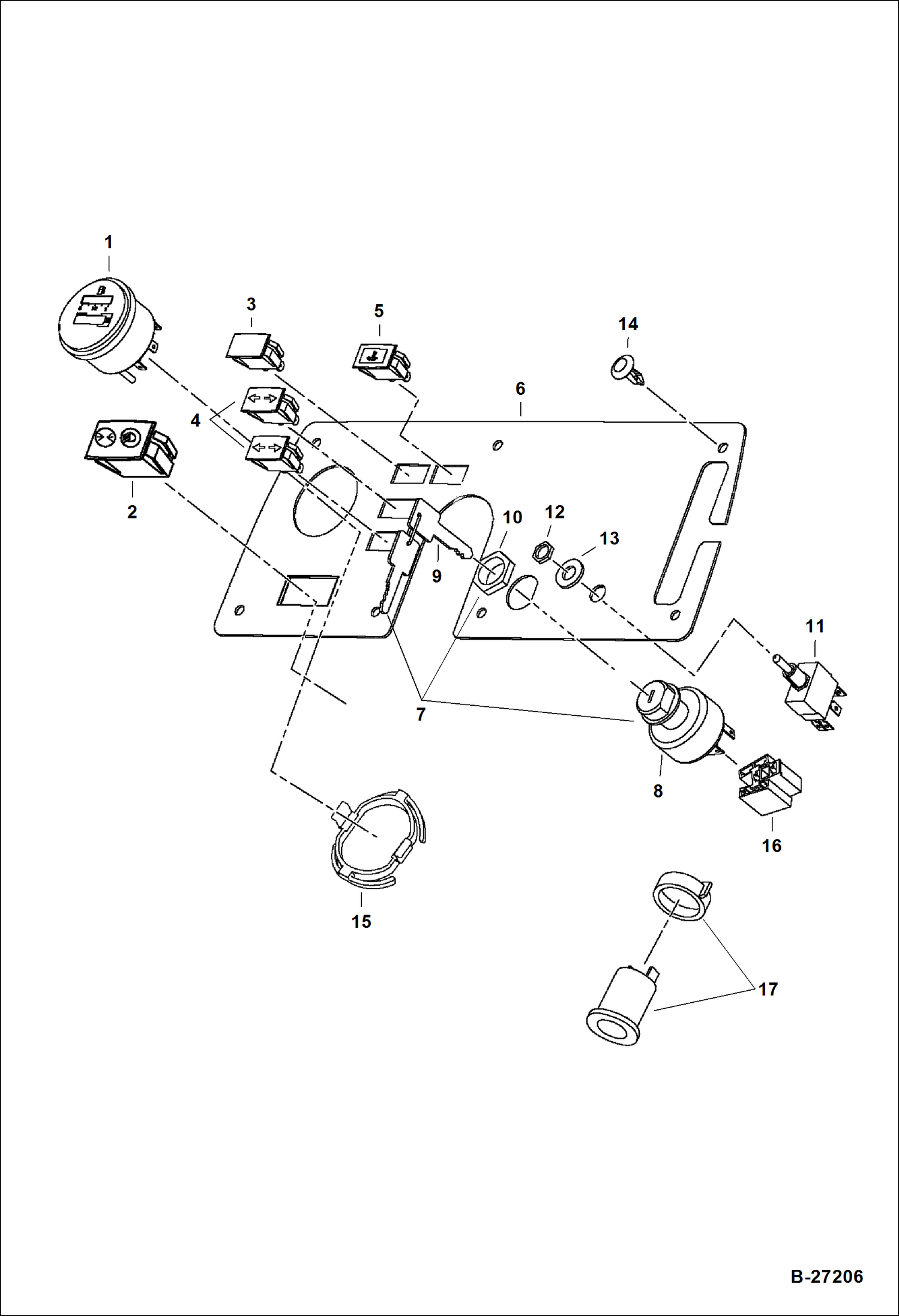

Запчасти Bobcat 2200 ELECRICAL (Instrument Panel) ELECTRICAL SYSTEM

1

103348101CC

GUAGE, FUEL/HOUR

2

102708301CC

SWITCH, HEADLIGHT

3

1016630CC

LIGHT oil warning/indicator

4

102495701CC

LIGHT, INDICATOR TURN SIGNALS

5

102375401CC

LIGHT INDICATOR ENG TEMP

6

102739903CC

PANEL, INSTRUMENT

7

102457301CC

KEY SWITCH W/Ref. 8-10

8

SWITCH, KEY W/O NUT NLA - Order Ref. 7

9

102731701CC

KEY SET includes two keys and ring

10

NUT, KEY SWITCH NLA - Order Ref. 7

11

1015636CC

TOGGLE SWITCH W/Ref. 12

12

NUT NLA - Order Ref. 11

13

1014557CC

WASHER 7/16'' flat

14

102967901CC

PLASTIC RIVET 1/4'' plastic rivet

15

103348201CC

CLIP retainer for Ref. 1

16

CONNECTOR NLA

17

102198001CC

ACCESSORY RECEPTACLE
