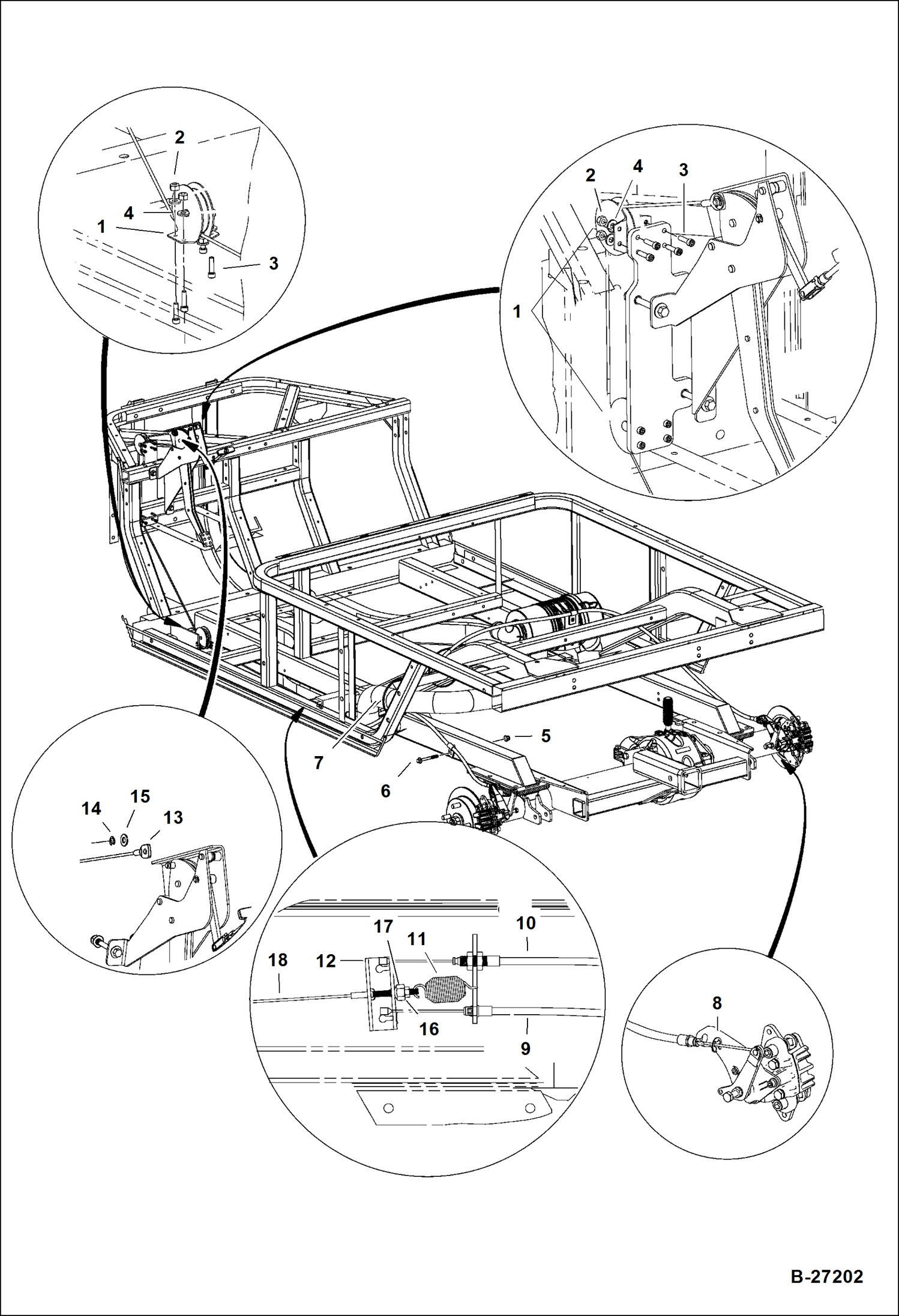

Запчасти Bobcat 2200 PARK BRAKE ASSEMBLY (With Pulley System) CHASSIS

1

PULLEY NLA - Order 102242701CC pulley kit - Was 102028302CC - A

2

1012438CC

NUT

3

101260202CC

SCREW

4

183CC

WASHER

5

102618601CC

NUT

6

102618301CC

BOLT

7

8639CC

TIE STRAP

8

1011779CC

E-CLIP, 1/2

9

102442701CC

CABLE BRAKE LT

10

102442801CC

CABLE BRAKE RT

11

1013531CC

SPRING

12

103535001CC

BRACKET, ASSY Was 101990802CC - A

13

102770001CC

KIT, CABLE BRAKE PARK 63'' long - W/Ref. 14-18

14

102692801CC

RING, RETAINER

15

1241CC

WASHER

16

1010521CC

NUT

17

102052801CC

NUT

18

CABLE, PARKING BRAKE FRONT NLA - Order 102770001CC Kit
