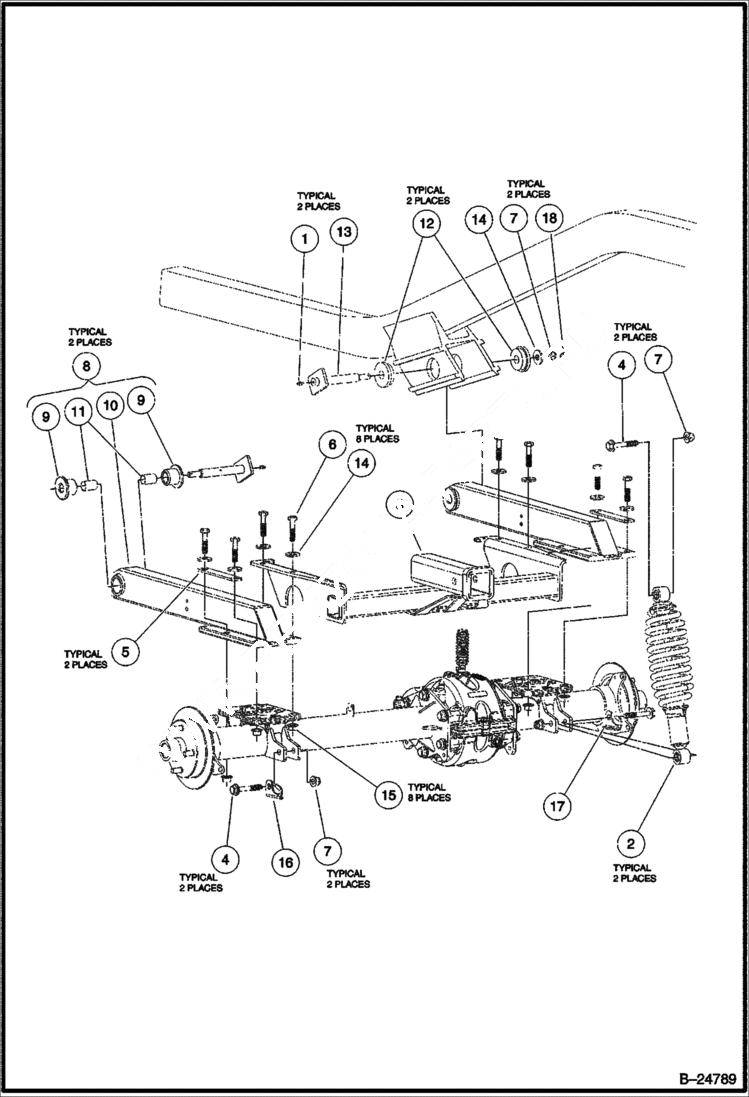

Запчасти Bobcat 2200 REAR SUSPENSION STANDARD CHASSIS

1

1015597CC

FITTING, 1/4-28 THRD FRM GREAS

2

102365601CC

SHOCK COIL OVER REAR

3

102393501CC

RECEIVER REAR

4

102616301CC

BOLT

5

102619801CC

WASHER

6

102620401CC

BOLT

7

102620501CC

NUT

8

SWINGARM SUB-ASM NSS - Order components

9

102398901CC

BUSHING

10

102476501CC

SWING ARM

11

102477001CC

BUSHING

12

102398901CC

BUSHING

13

102682901CC

PIN

14

102684501CC

WASHER

15

102685601CC

NUT

16

102689101CC

BRKT LINE HYD SHK MNT DRV

17

102689102CC

BRKT LINE HYD SHK MNT PASS

18

102737101CC

COTTER RING
