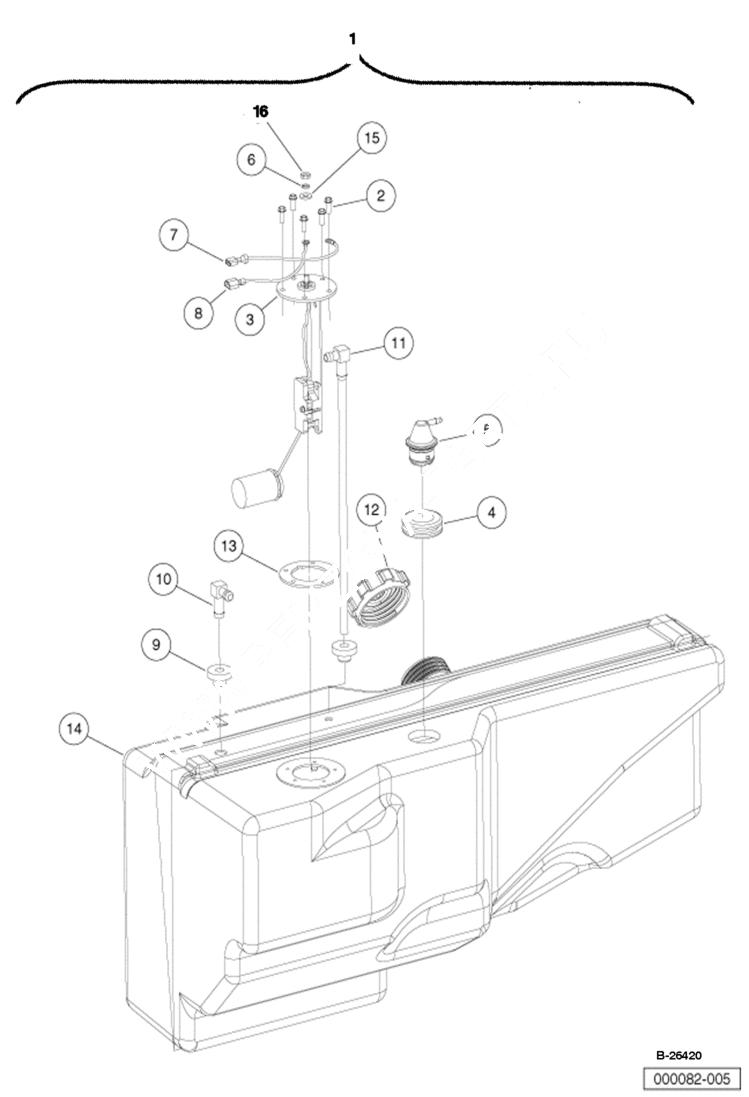

Запчасти Bobcat 2200 FUEL TANK DIESEL ENGINE MAIN FRAME

1

103963501CC

TANK, FUEL W/Ref. 2-16 - 102952101CC - A

2

1013461CC

SCREW

3

1013462CC

SENDER also Order Ref.13

4

1015139CC

GROMMET

5

103923101CC

KIT, FUELTANK VENT Was 1015143CC - A

6

1016CC

WASHER

7

WIRE ASS'Y NLA - blk-170mm

8

WIRE ASS'Y NLA - org-170mm

9

102406701CC

BUSHING

10

102406801CC

ELBOW

11

102478501CC

PICKUP TUBE FUEL

12

102494701CC

CAP FUEL diesel

13

102522001CC

GASKET rubber

14

FUEL TANK NLA - Order Ref. 1

15

183CC

WASHER

16

8797CC

NUT #10-32 brass hex
