Запчасти Bobcat 2200 PASSENGER SEAT MAIN FRAME

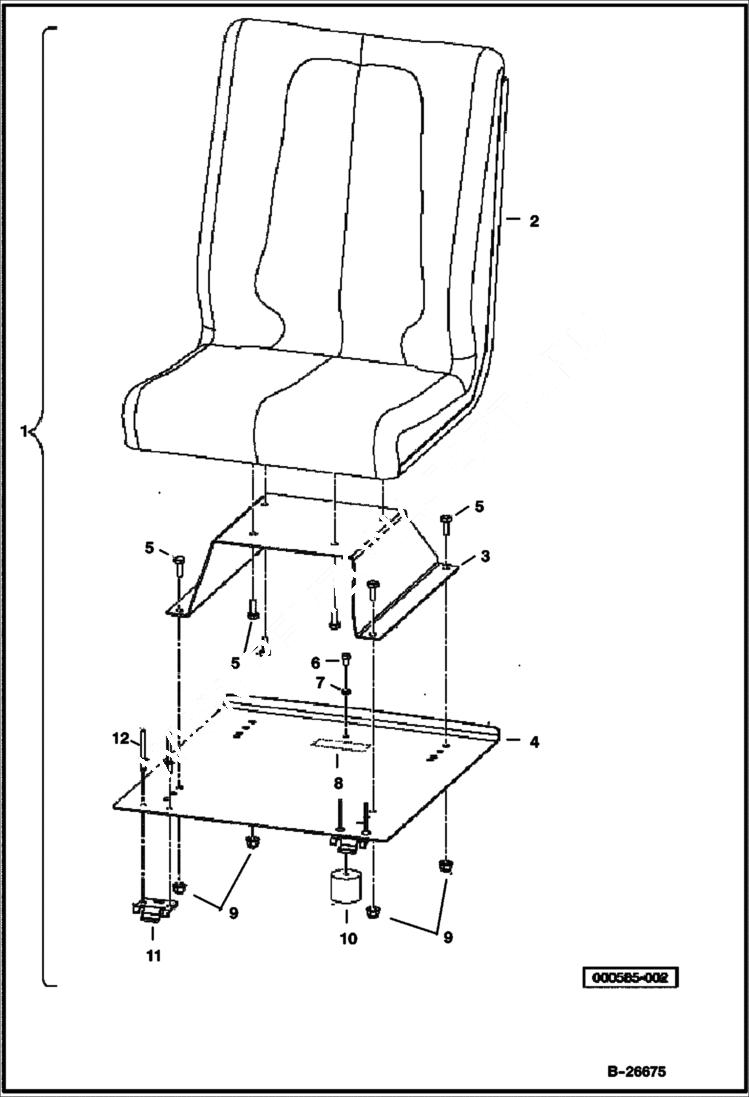

Схема запчастей Bobcat 2200 - PASSENGER SEAT MAIN FRAME

Артикул

Название

Примечание

Количество

1

SEAT ASM NLA - W/Ref. 2-12 - Order components - Was 102739001CC - A

2

102707401CC

SEAT

3

102620901CC

RISER

4

102023703CC

PAN SEAT PASSENGER

5

102498101CC

BOLT

6

102059401CC

SCREW

7

451CC

WASHER - LOCK

8

102458901CC

DECAL WARNING hot surface warning

9

102618601CC

NUT

10

102061101CC

CUP

11

1011652CC

PLATE

12

102047001CC

RIVET

Выбрано товаров: 12
