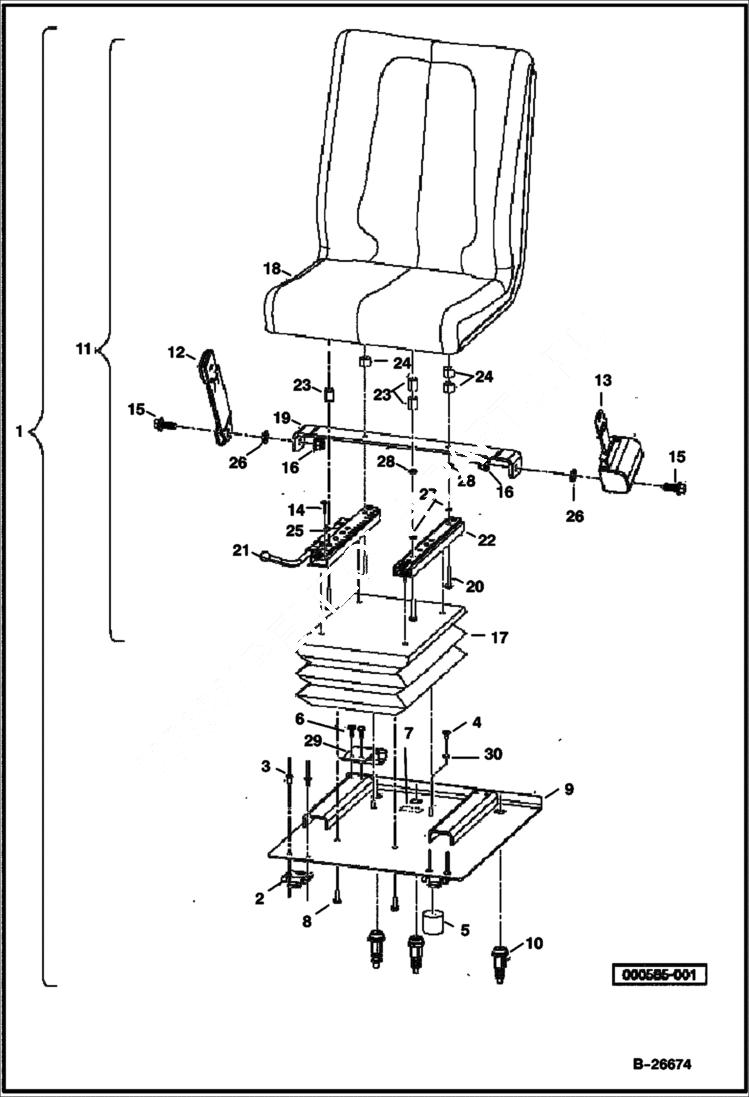

Запчасти Bobcat 2200 DRIVER SUSPENSION SEAT MAIN FRAME

1

SEAT ASM NLA - W/Ref. 2-30 - Order components - Was 102738901CC - A

2

1011652CC

PLATE

3

102047001CC

RIVET

4

102059401CC

SCREW

5

102061101CC

CUP

6

102296716CC

SCREW

7

102458901CC

DECAL WARNING hot surface warning

8

102498101CC

BOLT

9

102738301CC

SEAT MOUNT

10

102738501CC

LATCH

11

SUB ASSEMBLY NLA - W/Ref. 12-28 - Order components

12

103529701CC

BELT, SEAT buckle - Was 102447601CC - A

13

103529801CC

RETRACTOR, BELT SEAT Was 102447602CC - A

14

102490301CC

BOLT

15

102490801CC

BOLT

16

102620501CC

NUT

17

102707301CC

BASE

18

102707401CC

SEAT

19

102712001CC

BRACKET

20

102738401CC

BOLT

21

102865301CC

RAIL adjustable

22

102865401CC

RAIL slave

23

102865501CC

BUSHING 20 mm

24

102865601CC

BUSHING 15 mm

25

332CC

WASHER

26

96701412CC

WASHER

27

96705199CC

WASHER

28

96741038CC

WASHER

29

102776801CC

PLATE

30

451CC

WASHER - LOCK
