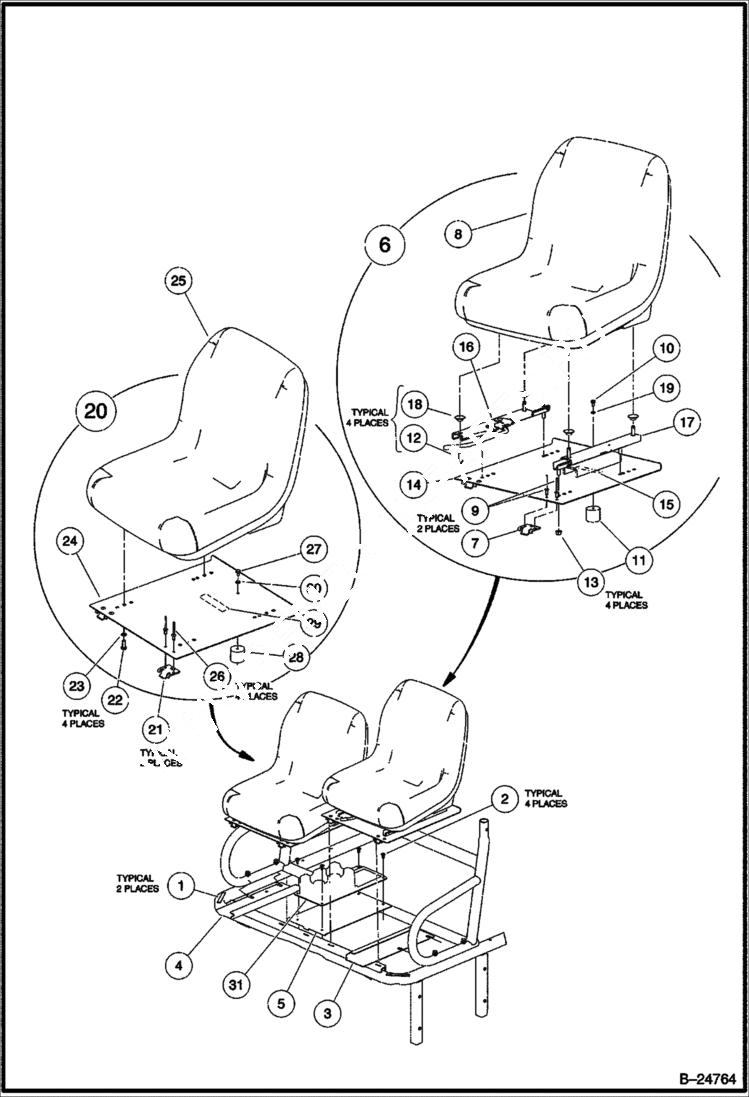

Запчасти Bobcat 2200 FRONT SEAT & CUP HOLDER MAIN FRAME

1

1014471CC

INSULATION

2

102967901CC

PLASTIC RIVET Was 102025701CC - A

3

102425401CC

CLOSEOUT DRIV SIDE

4

102425501CC

CLOSEOUT PASS SIDE

5

102442001CC

PAN CENTER CLOSEOUT

6

102473701CC

SEAT ASSY, GRAY adjustable - W/Ref. 7-19

6

COVER, SEAT VINYL NLA - covers both seats - gray W/pewter 4X4 embroidery - Was AM1245701CC - A

7

1011652CC

PLATE

8

103267001CC

BUCKET SEAT Was 10206501CC - B

8

103267002CC

BUCKET SEAT (BLACK) Was 103218801CC - A

9

102047001CC

RIVET

10

102059401CC

SCREW

11

102061101CC

CUP

12

102298130CC

BOLT

13

102298401CC

NUT

14

102456001CC

PAN SEAT DRIVER ASM

15

102458901CC

DECAL WARNING

16

102473501CC

ADJUSTER FORE/AFT

17

102473601CC

ADJUSTER SLIDER

18

102475901CC

SPACER

19

451CC

WASHER - LOCK

20

BUCKET SEAT passenger

21

1011652CC

PLATE

22

1012830CC

SCREW

23

1013734CC

WASHER - LOCK

24

102023703CC

PAN SEAT PASSENGER

25

103267001CC

BUCKET SEAT Was 10206501CC - A

25

103267002CC

BUCKET SEAT (BLACK) Was 103218801CC - A

26

102047001CC

RIVET

27

102059401CC

SCREW

28

102061101CC

CUP

29

102458901CC

DECAL WARNING

30

451CC

WASHER - LOCK

31

102486201CC

CONSOLE CTR
