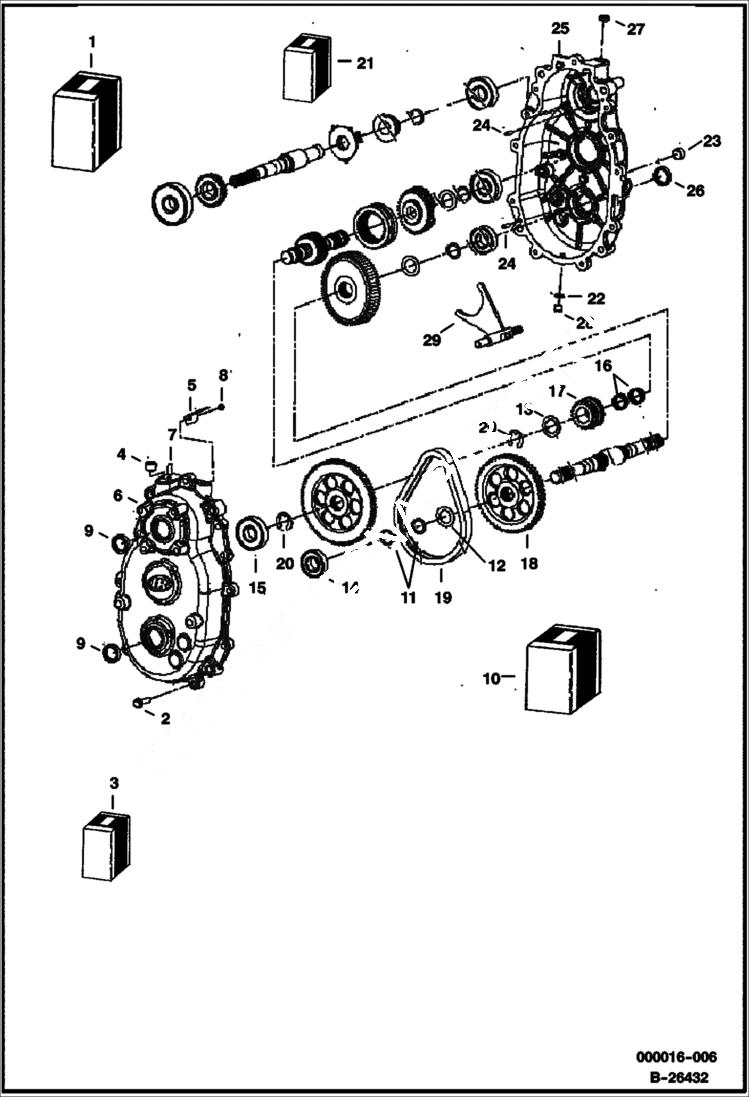

Запчасти Bobcat 2200 TRANSMISSION (Early Design) DRIVE TRAIN

1

102943201CC

TRANSMISSION See Illustration TRANSMISSION/ B26433 W/Ref. 2-21 - this transmission also contains the parts from B26433

2

102693301CC

SCREW

3

102764201CC

REAR GEARCASE ASSY W/Ref. 4-9

4

102694201CC

PLUG SQUARE 1/2-14

5

102696301CC

OIL DEFLECTOR

6

REAR GEARCASE NLA - Order Ref. 1

7

102698301CC

VENT TRANS

8

102698901CC

SCREW self-tapping-#10-24x.0375

9

102699401CC

SEAL

10

102765201CC

KIT REVERSE GEAR REPAIR W/Ref. 11-20

11

102696201CC

RING RETAINING EXT

12

102696501CC

WASHER

13

102696701CC

WASHER

14

102696801CC

BEARING

15

102696901CC

BEARING

16

102697101CC

BEARING

17

SPROCKET-19 TOOTH NLA - Order Ref 1

18

SPROCKET-51 TOOTH NLA - Order Ref.1

19

CHAIN NLA - Order Ref. 1

20

102699701CC

RING RETAINING

21

103250301CC

GEAR CASE ASM W/Ref. 22-28

22

102693501CC

WASHER

23

102694201CC

PLUG SQUARE

24

102696101CC

PIN DOWEL

25

FRONT GEARCASE NLA - Order Ref. 21

26

102699401CC

SEAL

27

102721501CC

SEAL LIP

28

103250401CC

PLUG

29

102697801CC

FORK WA TRANS
