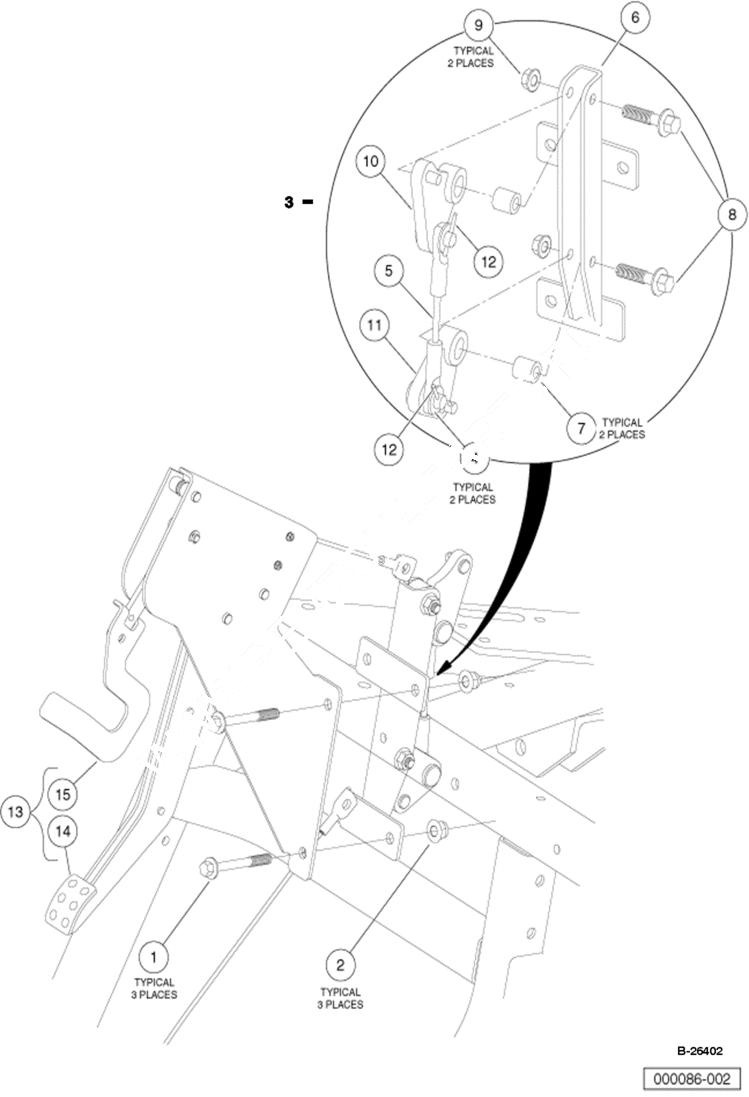

Запчасти Bobcat 2200 PARK BRAKE PEDAL CHASSIS

1

102618301CC

BOLT m8x1.25x65

2

102618601CC

NUT lock, flg, M8x1.25

3

BRACKET ASM NLA - W/Ref 4-12 - Order components - Was 102751501CC - A

4

102323501CC

3/8 WASHER

5

102716001CC

CABLE bell crank

6

103305001CC

BRACKET, PIVOT Was 102740801CC - A

7

103305101CC

SPACER Was 102741401CC - A

8

102741501CC

FLG, M8X1.25X35

9

102741601CC

FLG, M8X1.25

10

102751301CC

BELLCRANK ASM

11

102751401CC

BELLCRANK ASM

12

1035CC

COTTER PIN

13

102892401CC

PEDAL ASM. W/Ref. 14 & 15

14

BRAKE PEDAL NLA - Order Ref 13

15

102896601CC

HANDLE
