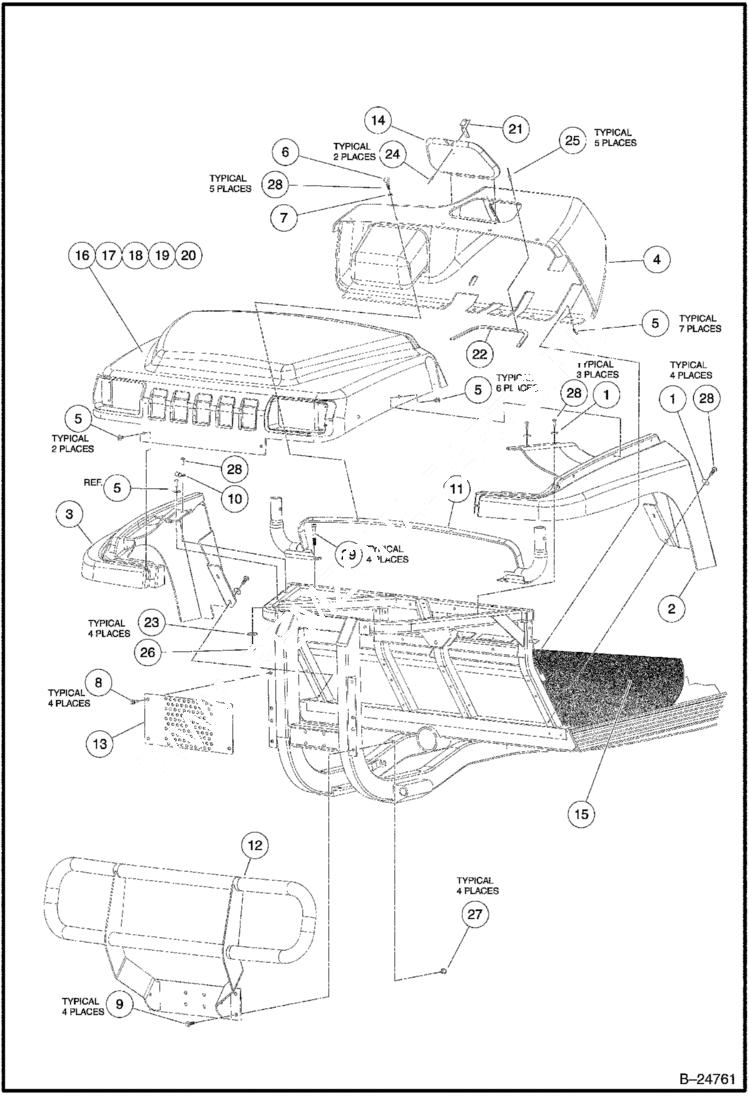

Запчасти Bobcat 2200 FRONT BODY TRIM Gasoline MAIN FRAME

1

1014306CC

WASHER

2

102021502CC

FENDER LH FRONT

3

102021602CC

FENDER RH FRONT

4

102021802CC

DASH BOARD

5

102967901CC

PLASTIC RIVET Was 102025701CC - A

6

CAP NLA - Order 102056901CC kit - Was 102045001CC - A

7

WASHER NLA - Was 102048401CC - A

8

102289002CC

SCREW

9

102298130CC

BOLT

10

102410603CC

CLAMP

11

102418501CC

SUPP COWL ROPS

12

102778001CC

BRUSH GUARD Was 102421101CC - A

12

PLATE, BOLT-ON NLA - Was 102420601CC - A

13

102429301CC

GRILL

14

102760501CC

ACCESS PANEL Was 102431501CC - A

15

102432001CC

MAT FLOOR

16

COWL, DARK GREEN See BTI424 - NLA - Was 102459710CC - A

17

COWL, DARK GRAY See BTI424 - NLA - Was 102459714CC - A

18

COWL, RED See BTI424 - NLA - Was 102459715CC - A

19

COWL, WHITE See BTI424 - NLA - Was 102459716CC - A

20

COWL, CAMO See BTI424 - NLA - Was 102459718CC - A

21

102760801CC

LATCH access panel - Was 102477101CC - A

21

102760701CC

CAM LOCK

22

102477301CC

SUPPORT ACCESS PANEL DASH

23

102491501CC

WASHER

24

RIVET NLA - Was 102492701CC - A

25

102492801CC

RIVET

26

102617201CC

NUT

27

102618601CC

NUT

28

102628601CC

SCREW

29

96715552CC

BOLT
